HYDMECH S-20 Next Generation Horizontal Pivot Band Saw

Trusted by job shops across North America since 1978

S Series

S-20A

Automatic Horizontal Pivot Mitering Band Saw

HYDMECH designed the original horizontal pivot band saw. The S-20A takes that foundation into full automation. Built for high-volume shops that need faster cycle times, programmable job queues, and the confidence to cut any angle precisely. With automatic PLC control and multi-index shuttle feeding no competitor in this class can match.

Automatic PLC touchscreen: program up to 100 jobs, 20 in queue FULLY AUTOMATIC

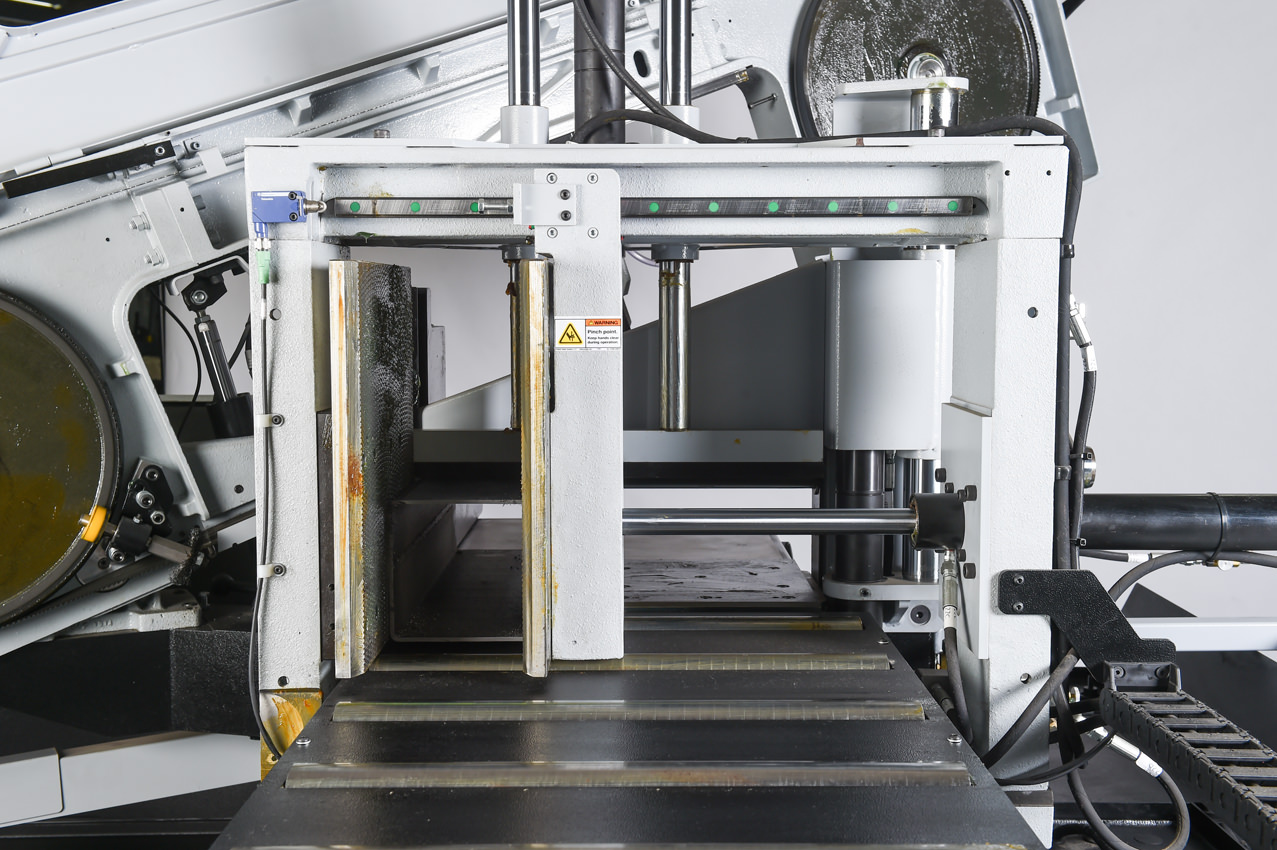

Automatic multi-index shuttle advances up to 27″ per stroke. Repeatable, high-volume production runs.
Full-stroke hydraulic vises clamp automatically. Fewer manual steps, faster throughput on every job.

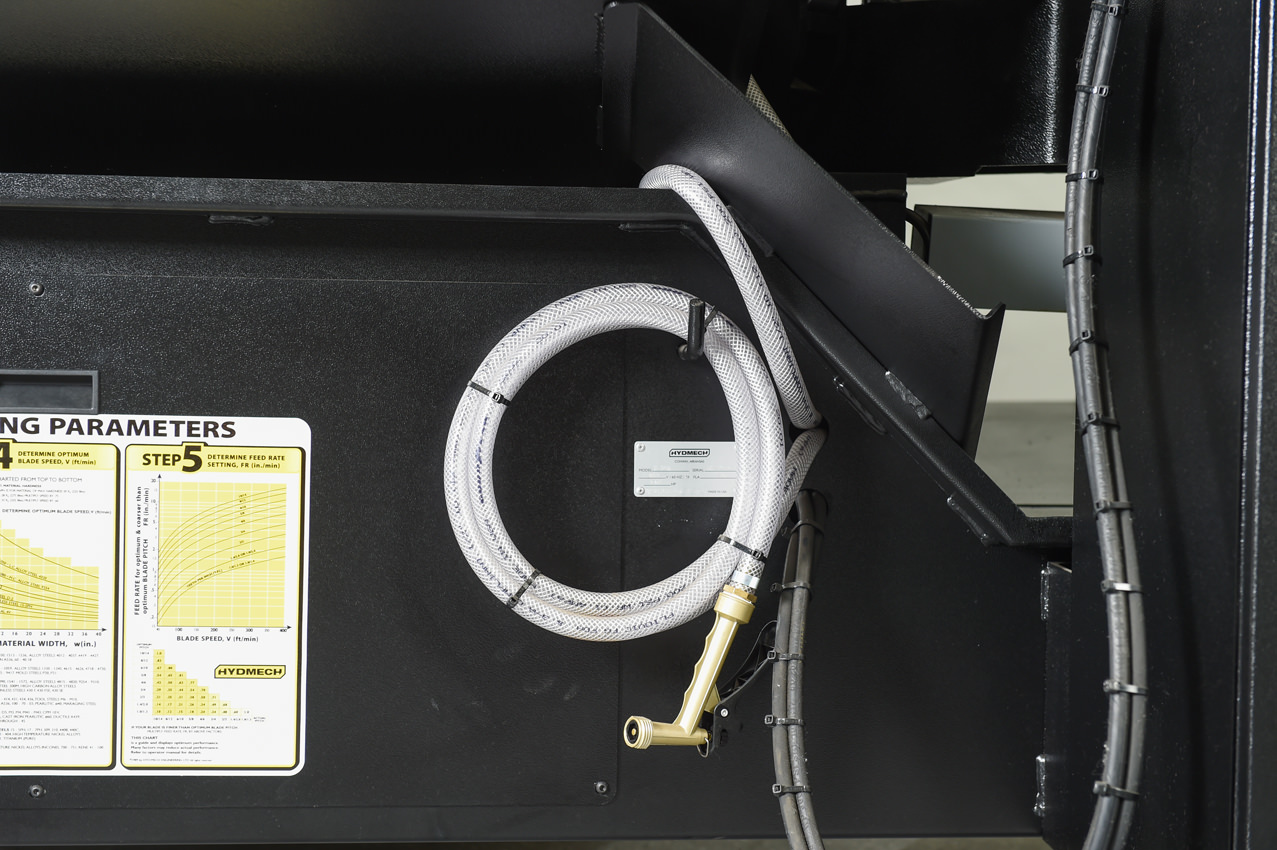

Flood coolant with wash-down hose. Extends blade life and keeps every cut clean and cool.
Assembled in Conway, Arkansas. Proudly Built in North America

Request a Quote for This Saw

View Specifications

Since 1978

Decades of Metal-Cutting Expertise

Warranty

2 Year Parts, 1 Year Labor

Assembled in Conway, AR

Built in North America

Local Support

North American Dealer Network

Why the HYDMECH S-20A

Program the whole cut list in one setup

The S-20A takes everything that made the S-20 the number one sawing equipment brand and adds full automatic operation. For the shop that needs to run full cut lists and finish more parts per shift, with less strain on the operator.

Industry Exclusive

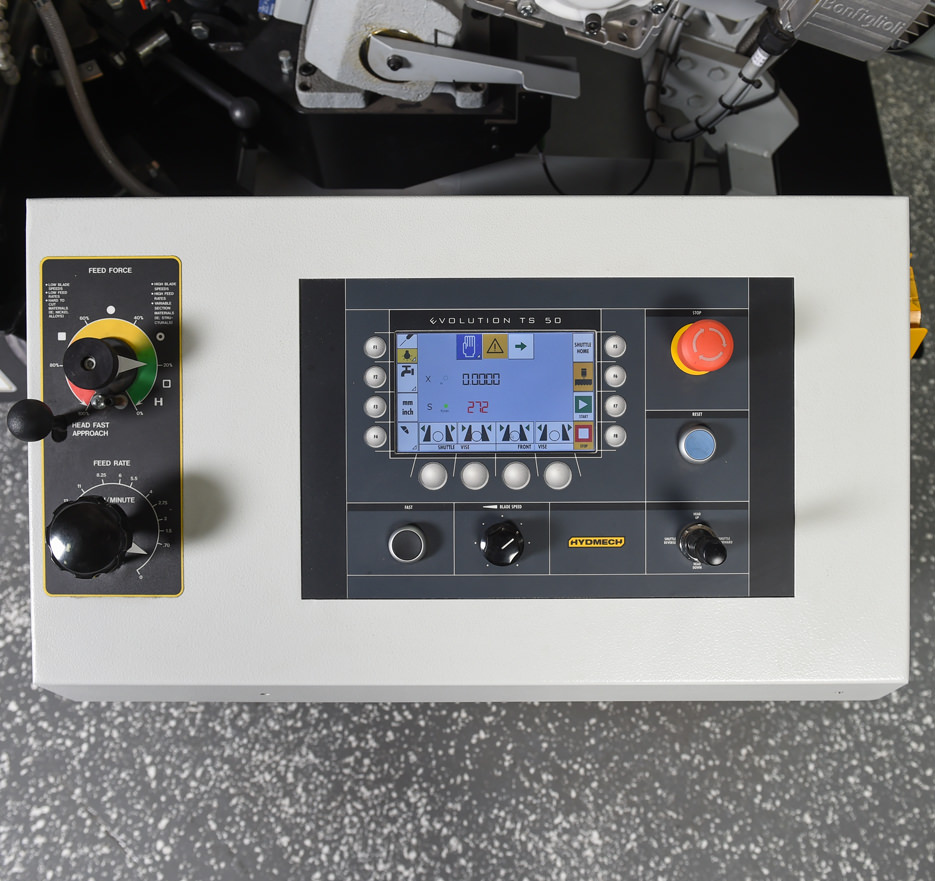

Automatic PLC Touchscreen Control

Program it once and run it all shift. The automatic PLC touchscreen stores up to 100 jobs with 20 in the queue, so a full day of cut lists is ready before the first bar goes in. Set length, angle, and quantity, then let the saw index, clamp, cut, and repeat on its own. Clear, consistent, and simple enough for anyone on your floor to run. Less operator time per cut, more finished parts per shift.

✓ Reduces setup errors and training time at any skill level

Industry Exclusive

Cast Iron Saw Head

The heavy cast iron saw head is the foundation of a clean, straight cut. Its mass dampens vibration and holds the blade steady through hard material and long production runs. The head swings up to 60 degrees for miter work and returns automatically after every cut. True direct blade drive, no belts or pulleys, puts full 5 HP to the blade for longer blade life and tighter tolerances.

✓ Targeted lubrication. Cleaner cuts, cleaner floor.

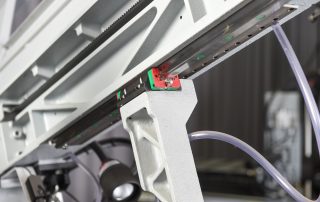

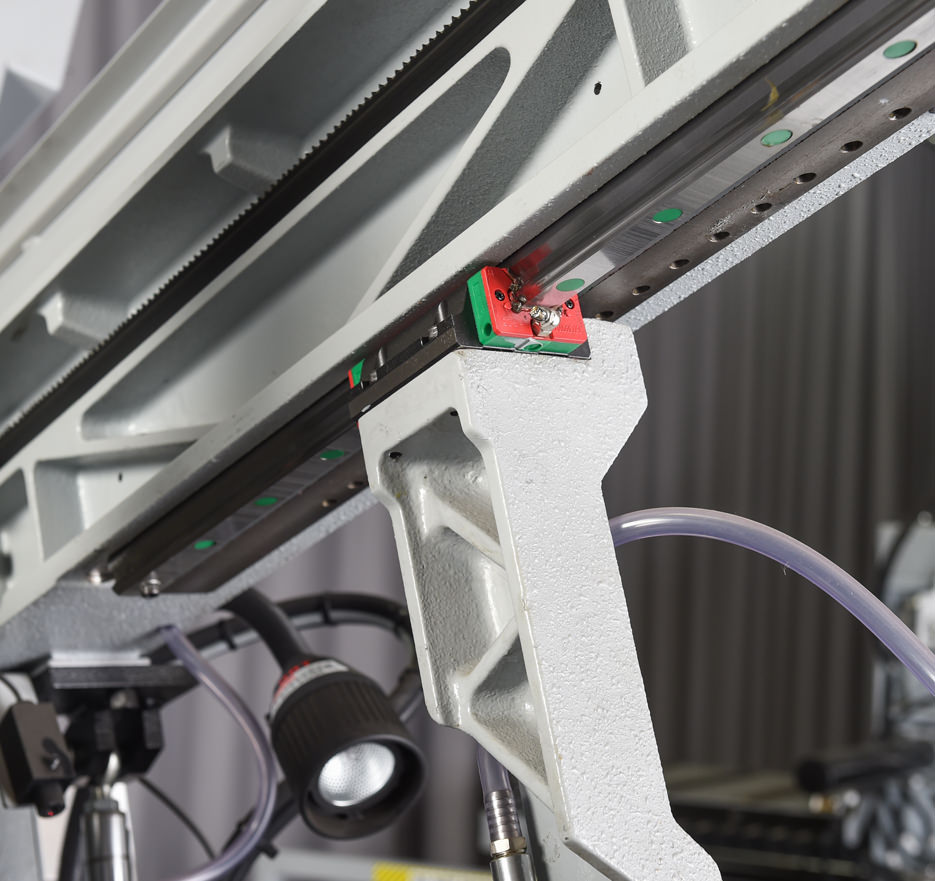

Adjustable Cast Iron Guide Arms

Blade support is what keeps wide cuts straight. The S-20A’s cast iron guide arms ride on linear rails and adjust to sit as close to the material as possible, keeping the blade rigid across the full 18 inch capacity. Pre-set, replaceable carbide inserts hold alignment cut after cut. Position the movable arm for the part in front of you and the saw tracks true from the first cut to the last.

✓ Faster cycle times. Less operator fatigue. More cuts per shift.

Specification	Value
Capacity — 90° Rectangular	13″ H × 18″ W (330 × 457 mm)
Capacity — 90° Round	13″ (330 mm)
Capacity — 45° Rectangular	13″ × 10 3/4″ (330 × 273 mm)
Capacity — 45° Round	12″ (304 mm)
Capacity — 30° Rectangular	13″ × 7 3/4″ (330 × 197 mm)
Capacity — 30° Round	8 1/2″ (216 mm)
Blade Size	1″ × 14′ 10″ (25.4 mm × 4521 mm)
Blade Speed (VFD)	75–330 SFM / 22–106 m/min
Blade Drive	5 HP VFD (3.5 kW)
Blade Drive Type	True Direct Drive — no belts or pulleys
Blade Wheels	Cast Iron
Indexing	Automatic Multi-Index, up to 27″ per stroke
Control	Automatic PLC Touch Screen — 100 jobs, 20 in queue
Vise Type	Hydraulic, Full Capacity, Full Stroke
Feed System	Hydraulic Positive Down Feed
Guide Arms	Cast Iron on Linear Rails, Adjustable
Coolant Tank Capacity	12 US Gal. (45 L)
Work Load	5,000 lbs (2,272 kg)
Machine Voltage	480V standard; other voltages with optional transformer
Machine Weight	3,800 lbs (1,727 kg)
Table Height	31″ (787 mm)
Machine Dimensions	93″ × 86″ × 52″ (2362 × 2184 × 1320 mm)

Download Layout Drawing

Cutting Capacity at a Glance

90°

13" H × 18" W

Round: 13"

45°

13" × 10 3/4"

Round: 12"

30°

13" × 7 3/4"

Round: 8 1/2"

Miter Range

90° – 30°

Easy swing cast iron head

Automation at a Glance

Control: Automatic PLC touch screen

Job storage: 100 jobs, 20 in queue

Indexing: Multi-index up to 27" per stroke

Coolant: Flood with wash-down hose

Request a Quote for This Saw

WHATS INCLUDED

Standard & Optional Features

Standard Features

Easy-swing, heavy-duty cast iron saw head (swings up to 60°)
Automatic multi-index cast iron shuttle — up to 27″ per stroke, ball screw and stepper motor
5 HP VFD true direct blade drive, no belts or pulleys
VFD variable blade speed, 75–330 SFM
Automatic PLC touchscreen control — 100 jobs, 20 in queue
Full capacity, full-stroke hydraulic material vises
Hydraulic positive down-feed of sawing head
On-demand hydraulics save energy
Cast iron guide arms on linear rails, adjustable for spacing
Pre-set, replaceable carbide guide inserts
Mechanical band tensioning with digital readout
Cast iron band wheels
Blade chamber separates material from cut part, extending blade life
Flood coolant with wash-down hose
Laser light & work light
Replaceable blade brush
Robust steel base
Safety door interlocks & out-of-stock switch
Easy-access electrical panel & angle scale with locking mechanism

Optional Features & Add-ons

Full capacity hydraulic overhead bundling Cut multiple pieces in a single pass. Stack and clamp bundles of material overhead, reducing the number of cuts needed for high-volume jobs. Ideal for tube, pipe, and structural profiles.
Variable vise pressure
Mist lubrication (shop air required)
Remote console — 10′ cord
Idler conveyors and accessories
Powered conveyors and accessories
Power transformer — 208V, 240V, or 575V

Custom Material Handling

HYDMECH designs and manufactures material handling systems for heavy-duty industrial applications. Custom specifications or complete turnkey engineered solutions available.

Ask about material handling →

Pricing Available Through Your Dealer

Contact an authorized HYDMECH dealer for current pricing, financing options, and availability in your region.

WHY HYDMECH

The #1 Band Saw Brand in North America

Real shops choose HYDMECH for reliability, dealer support, and the lowest cost-per-cut over the life of the machine.

#1

Sawing Equipment Brand

The Metal Center News Brand Survey is voted on by the fabricators, job shops, and metal service centers who buy and run this equipment every day. In 2025 they ranked HYDMECH #1. That matters more than anything we could say about ourselves.

Best

Cost-Per-Cut

Every decision on the S-20A comes back to one question: will this cost the shop less over time? Direct-drive motors, on-demand hydraulics, and automatic indexing add up to the lowest cost-per-cut in the class. Not a claim. An engineering priority.

Local

Dealer Support Network

When something needs attention, you don't want to wait two weeks for a technician from three states away. Our dealer network means local service, local parts, and someone who knows your machine. Fast.

Built

In North America

Built at our Conway, Arkansas facility. When you need parts fast or have a question, you're talking to people in North America who know the saw and stand behind it.

COMMON QUESTIONS

What Buyers Ask About the S-20A

Where is the S-20A made?Joanna2026-07-28T02:16:40+00:00

Where is the S-20A made?

The S-20A is assembled at HYDMECH’s facility in Conway, Arkansas. HYDMECH has been designing and manufacturing band saws in North America since 1978.

What is the warranty on the S-20A?Joanna2026-07-28T02:17:17+00:00

What is the warranty on the S-20A?

The S-20A comes with a two year parts warranty and one year labor warranty, provided through your authorized HYDMECH dealer.

How many jobs can the S-20A store and run automatically?Joanna2026-07-28T15:31:19+00:00

How many jobs can the S-20A store and run automatically?

The automatic PLC touchscreen control is programmable for up to 100 jobs with 20 in the queue. Set length, angle, and quantity for each job, and the S-20A indexes material with its cast iron shuttle, clamps with full-stroke hydraulic vises, and cuts each part in sequence.

What materials can the S-20A cut?Joanna2026-07-28T02:16:34+00:00

What materials can the S-20A cut?

The S-20A cuts mild steel, structural steel, aluminum, stainless steel, tubing, and solid round bar. The 5 HP VFD variable speed drive lets operators dial in the right blade speed for each material, from 75 to 330 SFM.

What is the difference between the S-20P and the S-20A?Joanna2026-07-28T02:16:30+00:00

What is the difference between the S-20P and the S-20A?

Both are horizontal pivot mitering band saws built on the same rugged frame. The S-20P is semi-automatic: the operator loads each piece and the saw lifts, clamps, and cuts. The S-20A is fully automatic. Its cast iron shuttle multi-indexes up to 27″ per stroke, and the automatic PLC touchscreen stores up to 100 jobs with 20 in the queue, so the saw indexes, clamps, cuts, and repeats a full cut list on its own.

What is the cutting capacity of the S-20A?Joanna2026-07-28T02:16:32+00:00

What is the cutting capacity of the S-20A?

At 90 degrees the S-20A cuts up to 13″ round and 13″ x 18″ rectangular. At 45 degrees it cuts up to 12″ round and 13″ x 10 3/4″ rectangular. At 30 degrees it cuts up to 8 1/2″ round and 13″ x 7 3/4″ rectangular.

"We continue to buy HYDMECH because they’re reliable. HYDMECH stands behind their equipment. If there are any problems, they get taken care of immediately. The uptime is very good on those saws and that’s good for our business."

Mark Mullen, President

Griggs Steel - High Speed Steel Provider

Ready to talk about the HYDMECH S-20A?

Our sawing specialists can answer your questions, help you configure the right options, and connect you with your nearest dealer.

Request a Quote for This Saw

The quote form will be pre-filled with "S-20A" so your specialist is ready for your call
