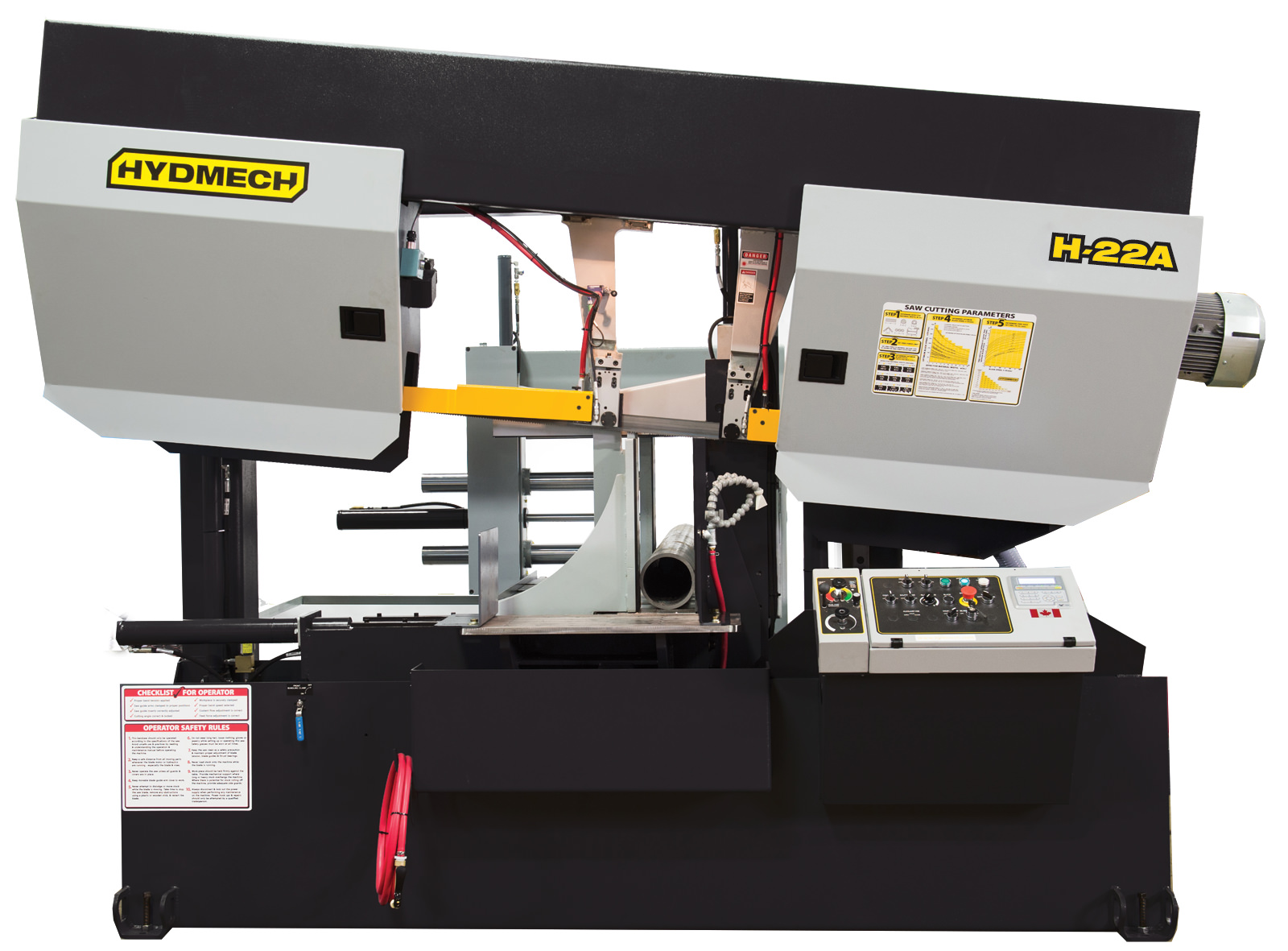

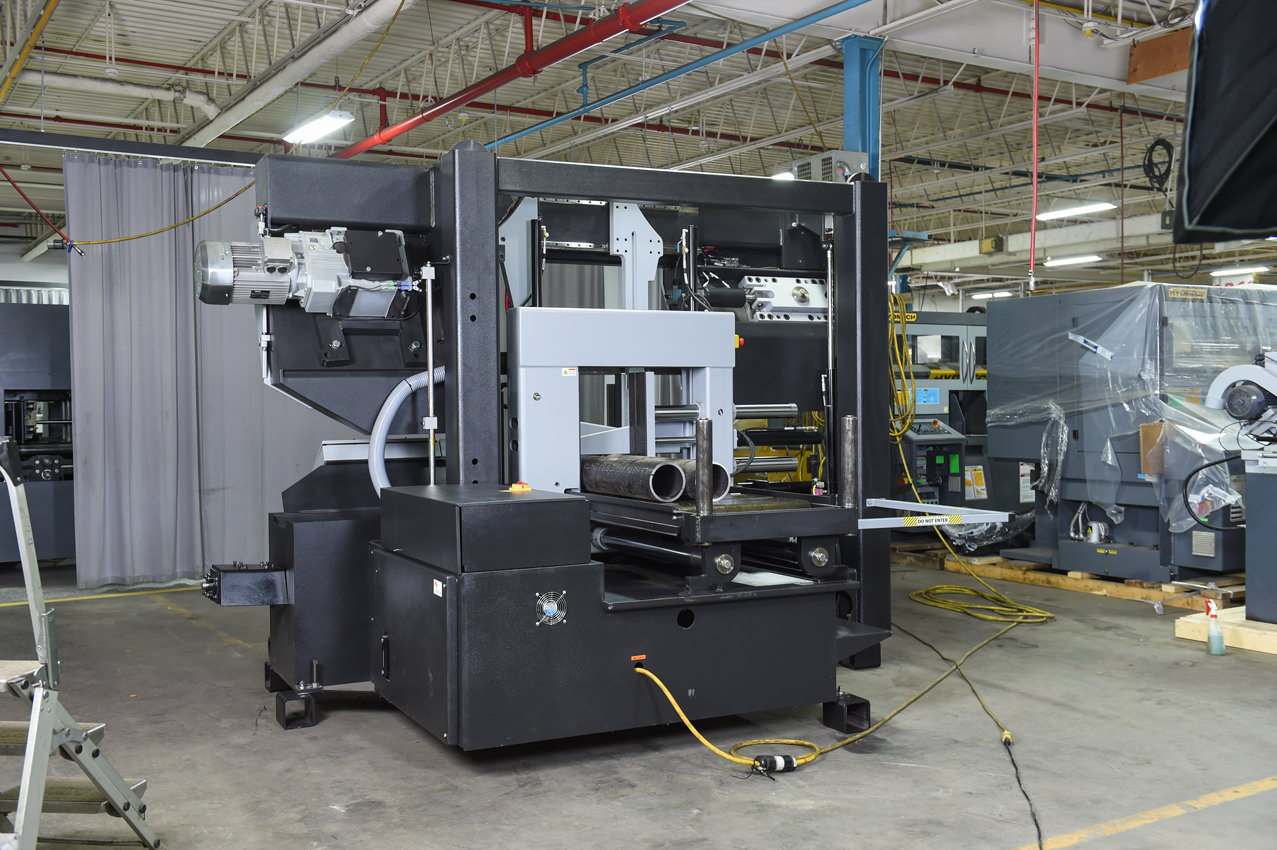

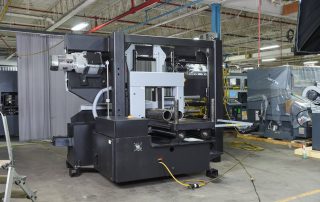

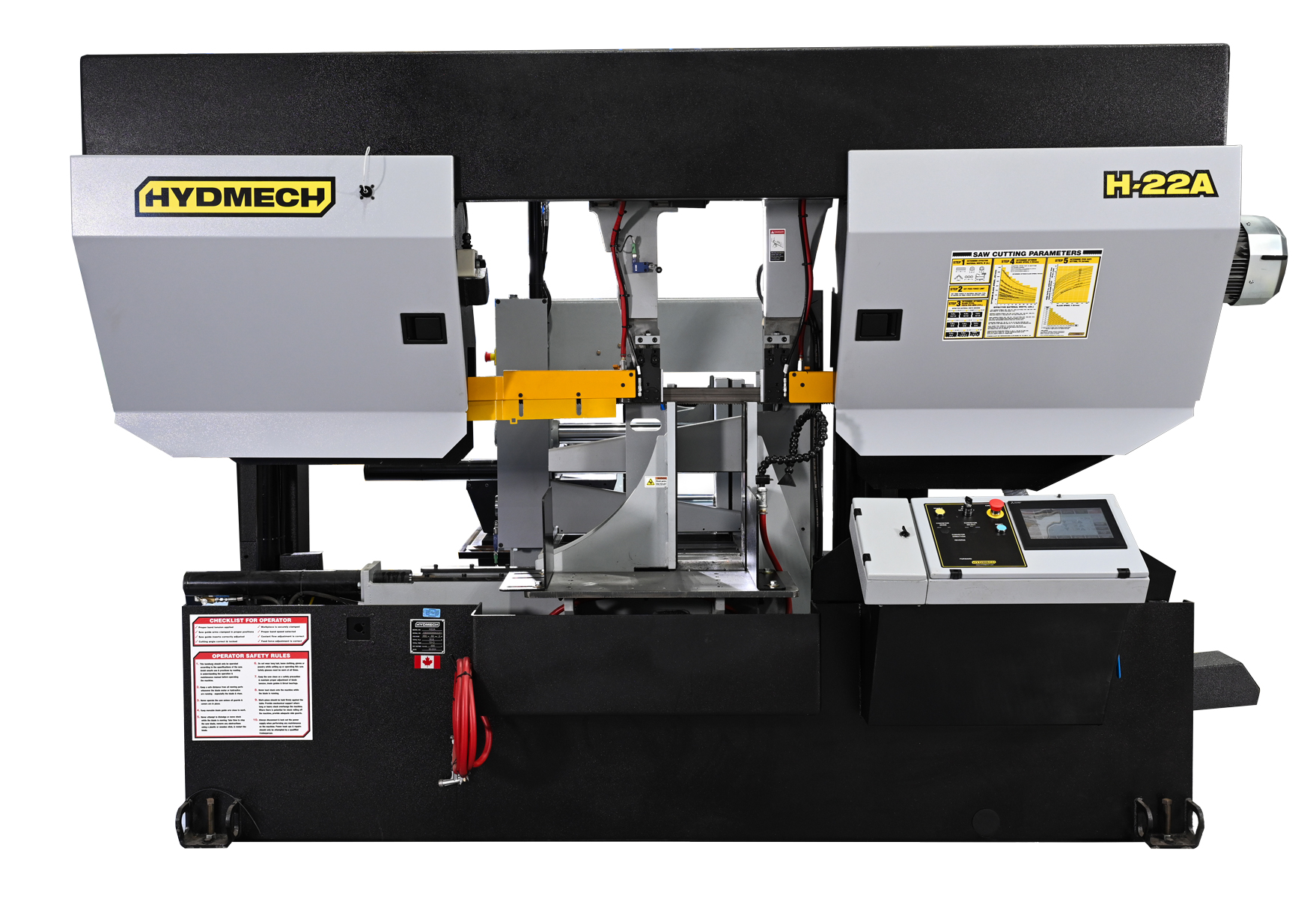

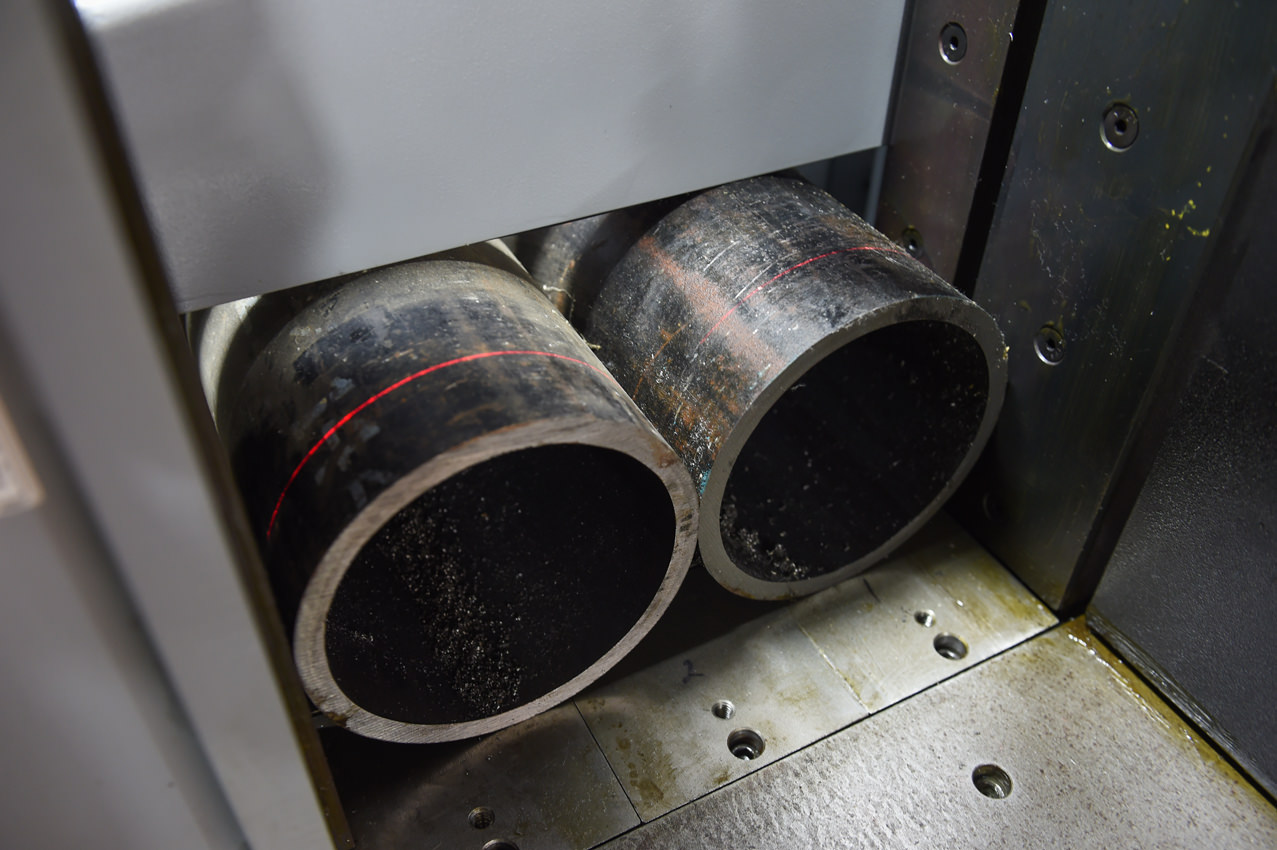

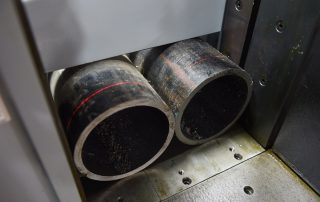

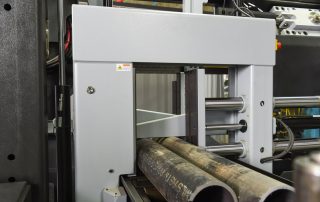

H-22A HORIZONTAL BAND SAW

The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-22A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

Featuring a 22″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	22″ x 22″ Canted: 20″ x 22″	22″ Canted: 20″
Blade Size	2” x 22’ 6”
Blade Drive	10 HP VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	40-300 SFM
Automatic Multi-Indexing	0-34″
Machine Weight	12,500 lbs.
Table Height	31” Canted:35″
Dimensions (w x l x h)	141” x 88” x 92”

METRIC

Capacity	Rectangular (h x w)	Round
90°	560 mm x 560 mm Canted: 508 mm x 560 mm	560 mm Canted: 508 mm
Blade Size	50.8 mm x 6858 mm
Blade Drive	7.5 kW VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	12-91 m/min
Automatic Multi-Indexing	0-864 mm
Machine Weight	5670 kg
Table Height	787 mm Canted: 889 mm
Dimensions (w x l x h)	3581 x 2235 x 2337 mm

STANDARD FEATURES

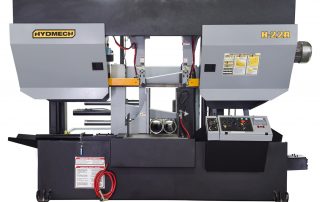

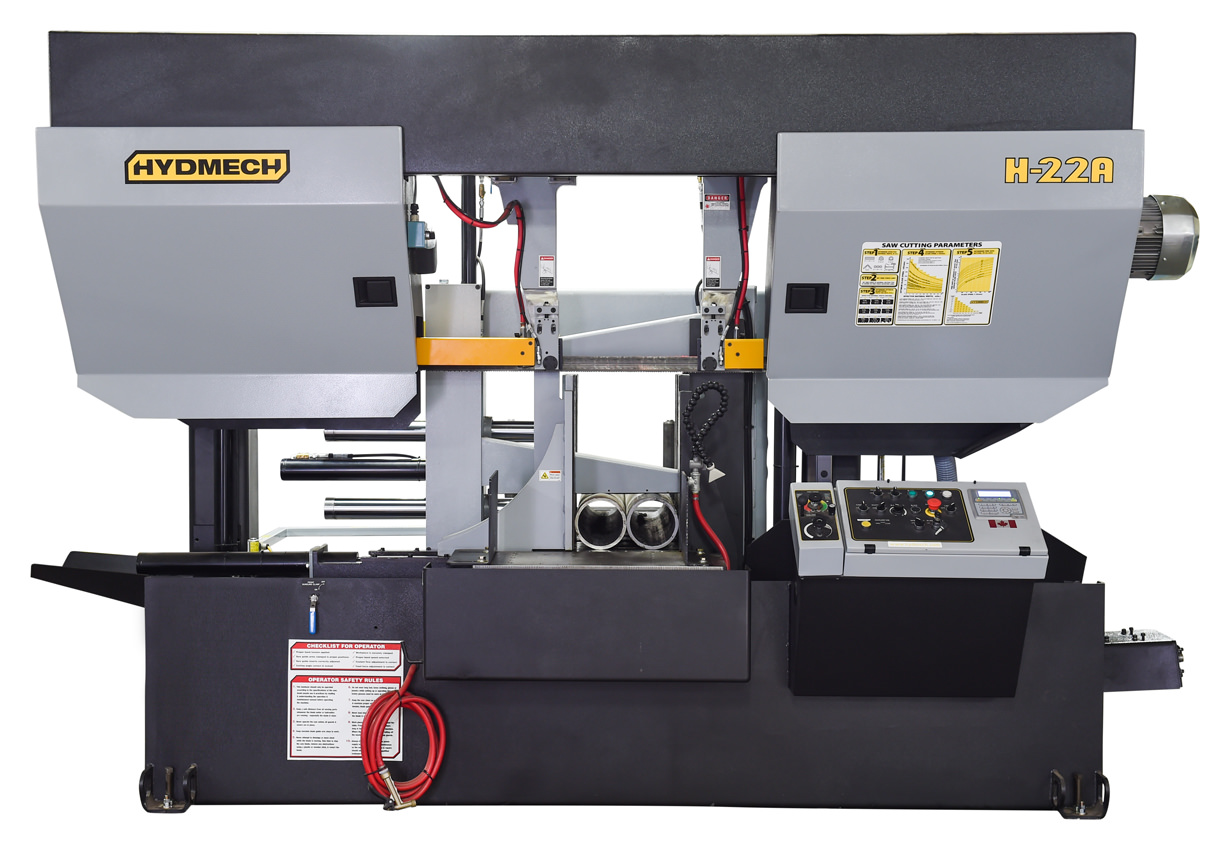

One piece design – no alignment necessary
Spilt front vise allows for short remnant length

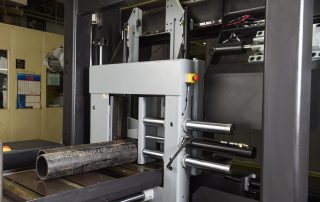

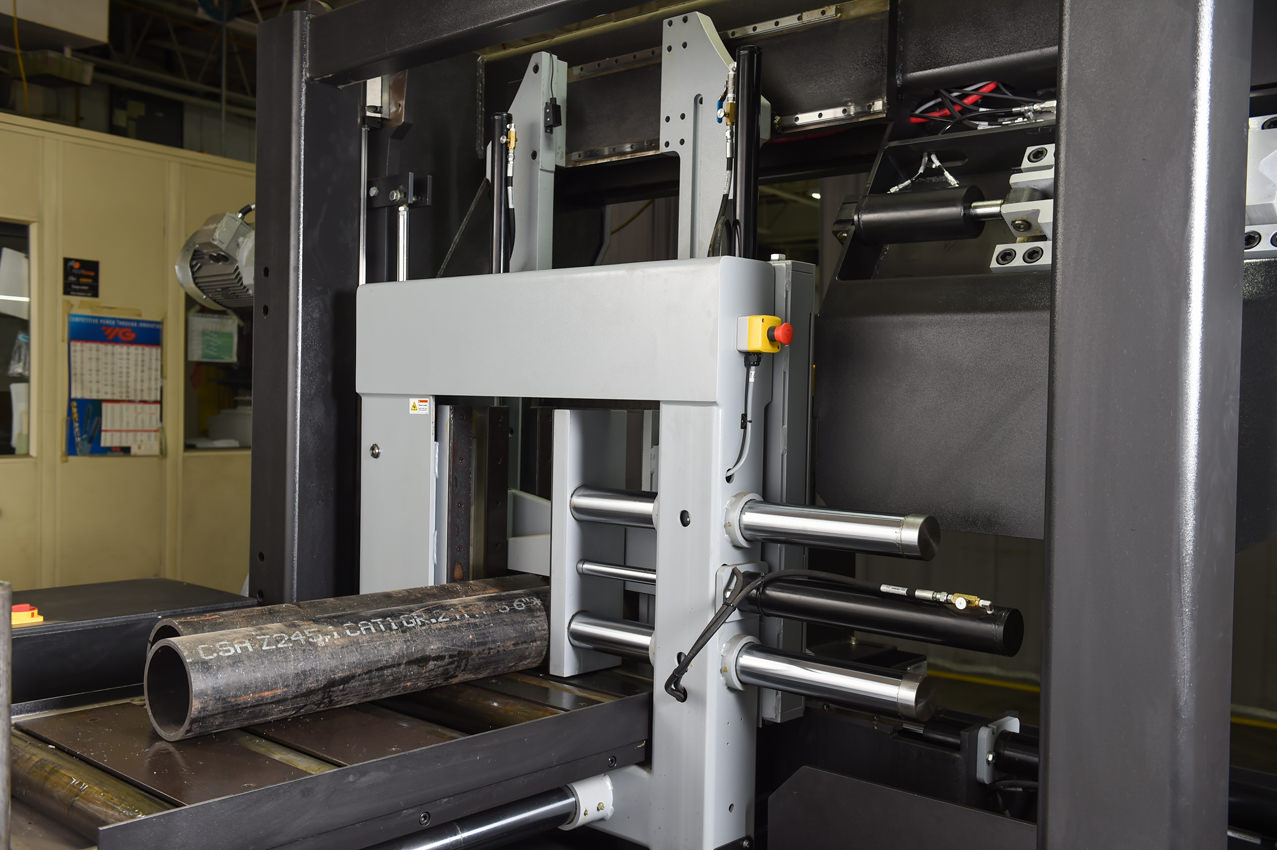

Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

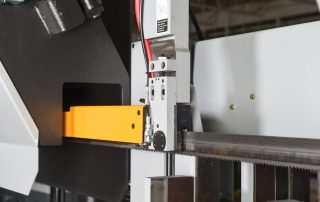

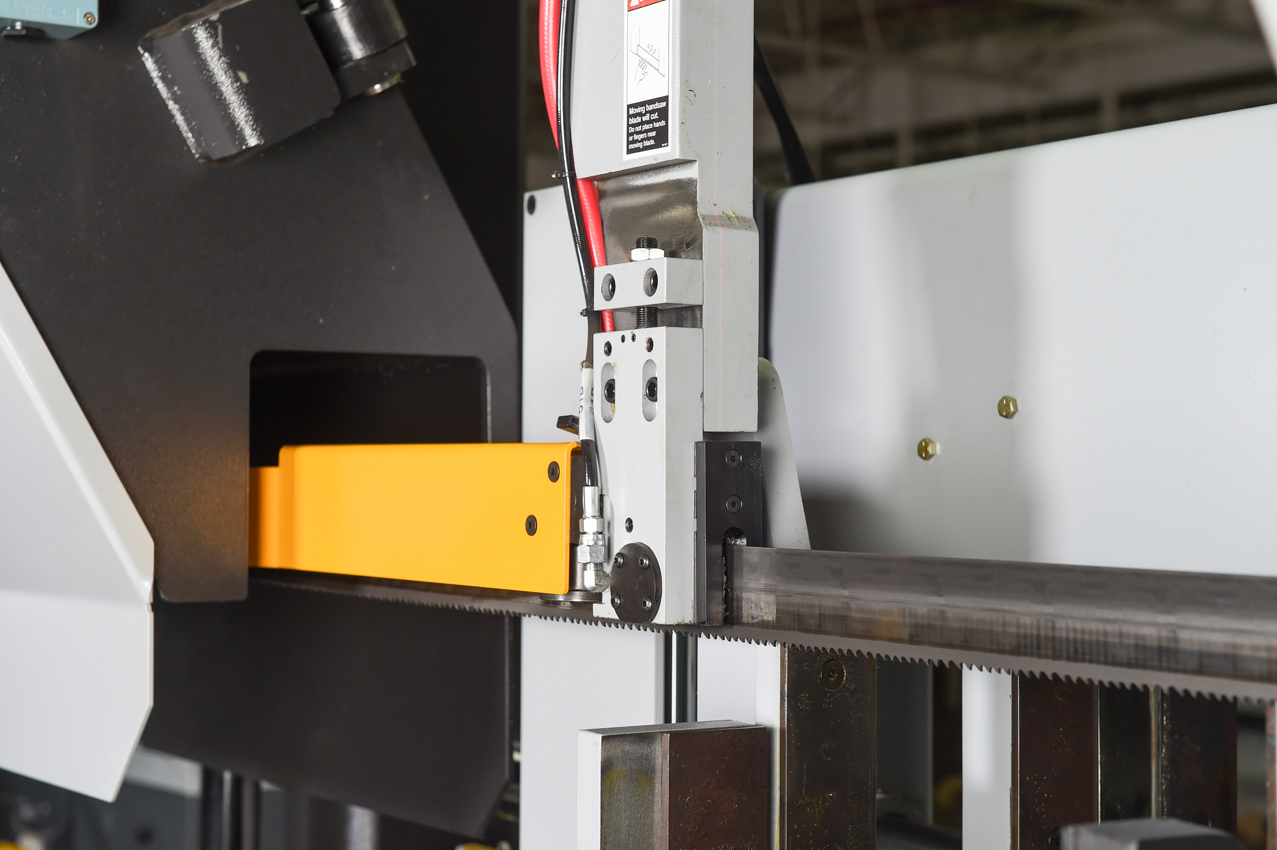

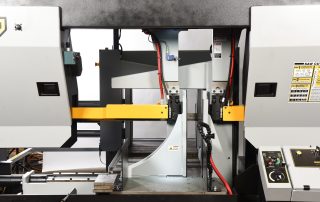

Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Hydraulic positive down feed
Blade chamber separates material from cut part

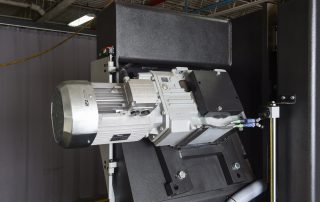

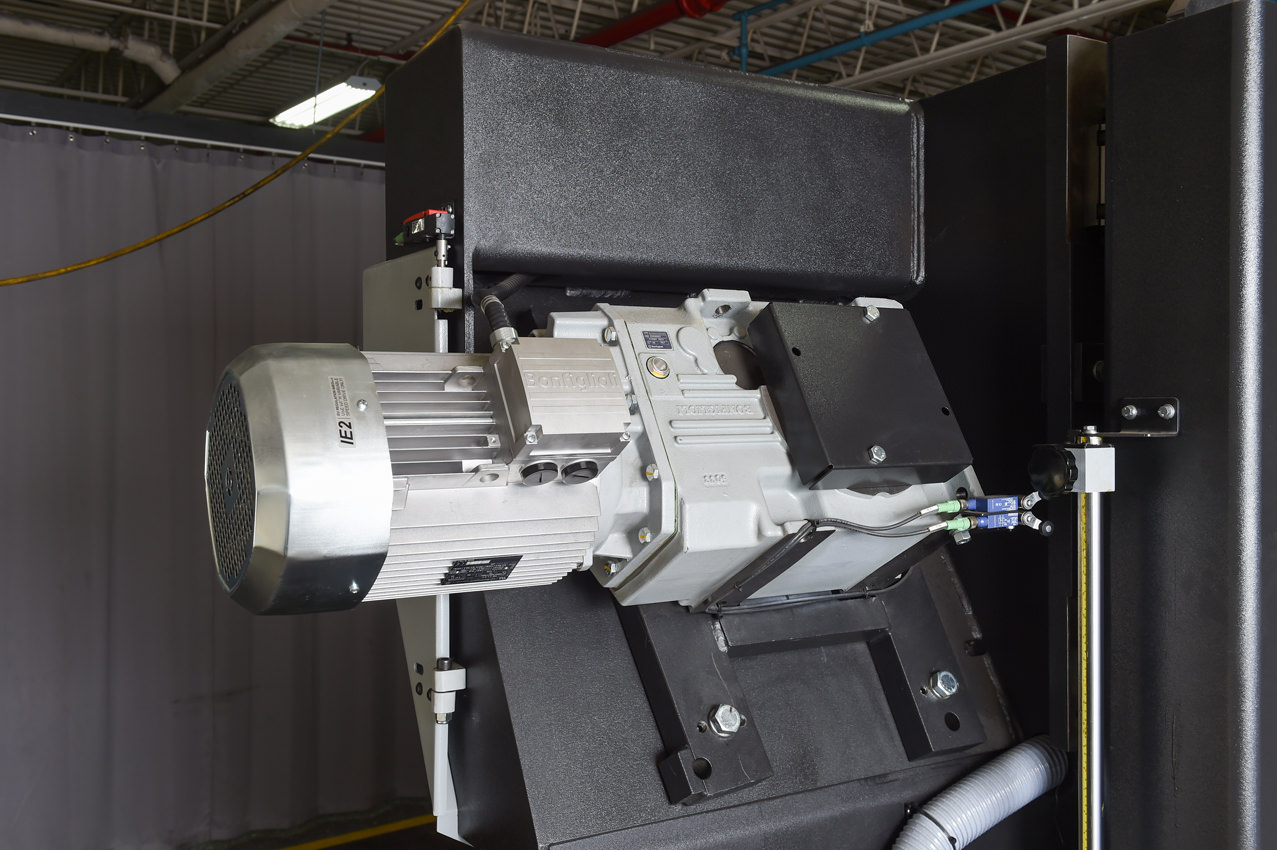

10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys

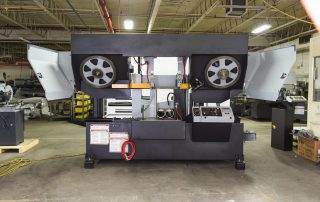

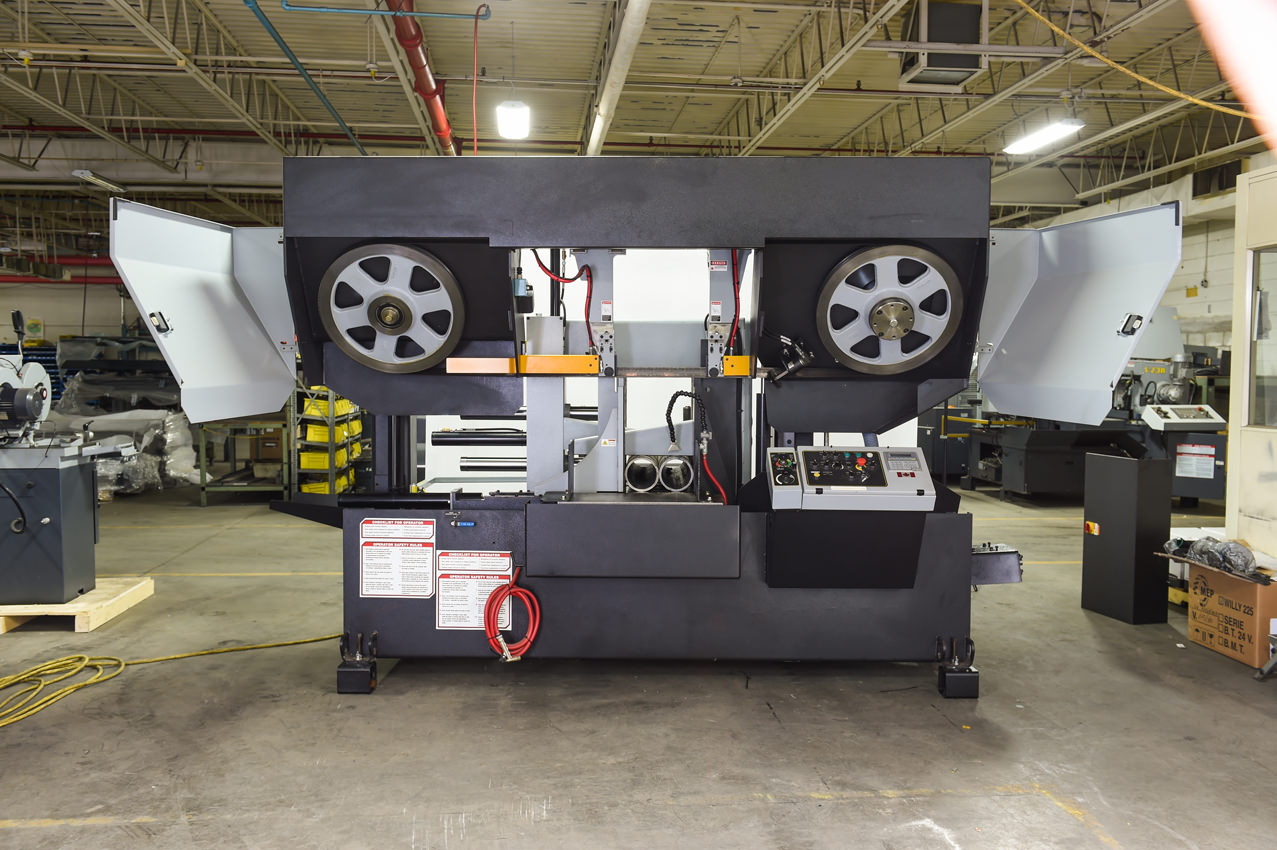

Cast iron band wheels

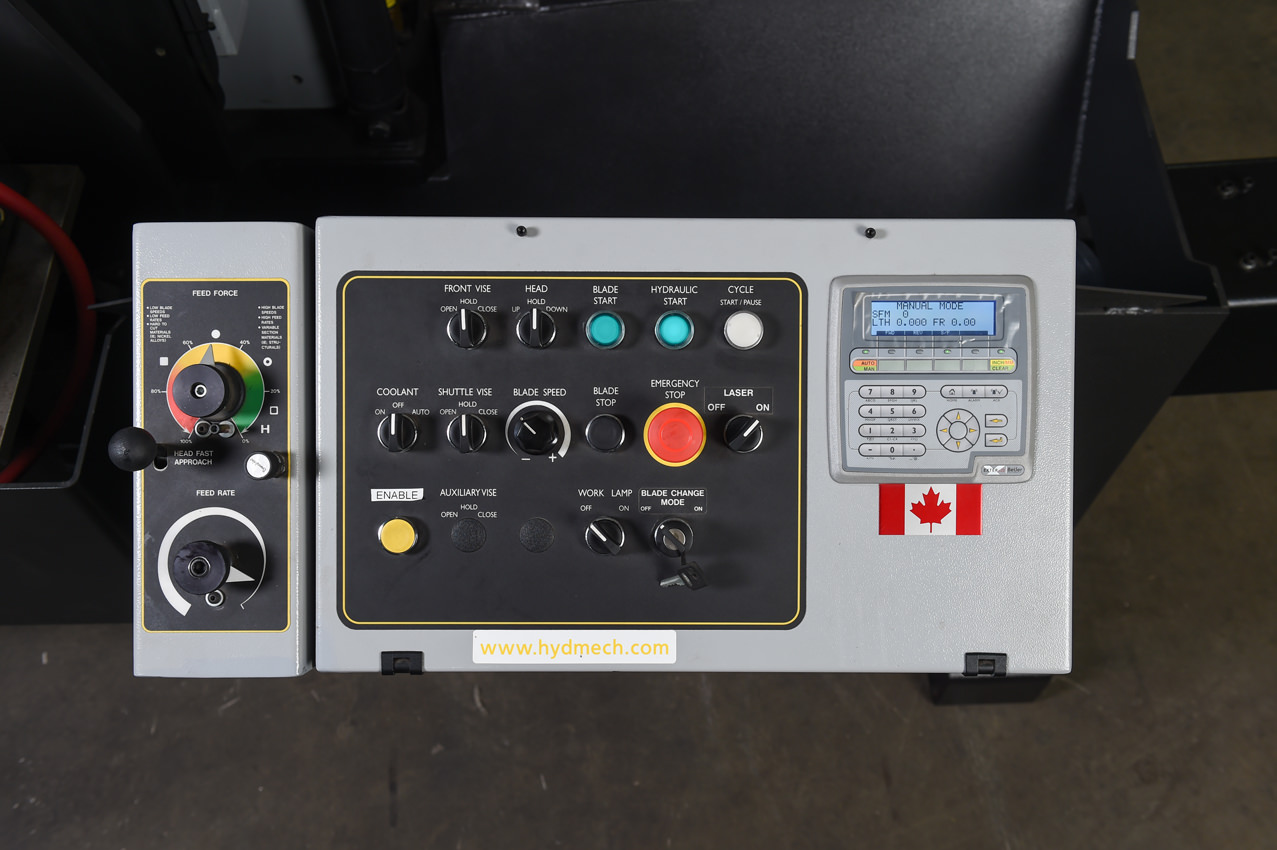

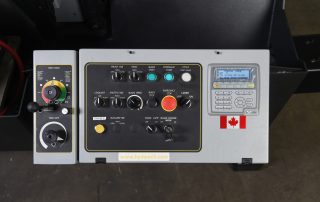

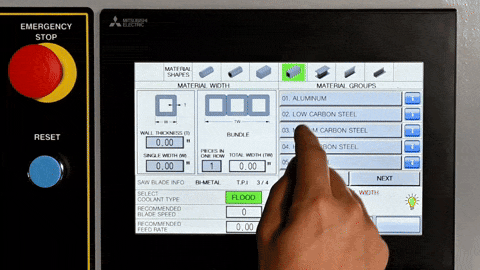

Automatic PLC control programmable up to 99 jobs with 5 in queue.

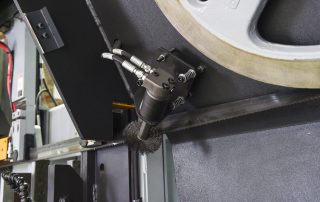

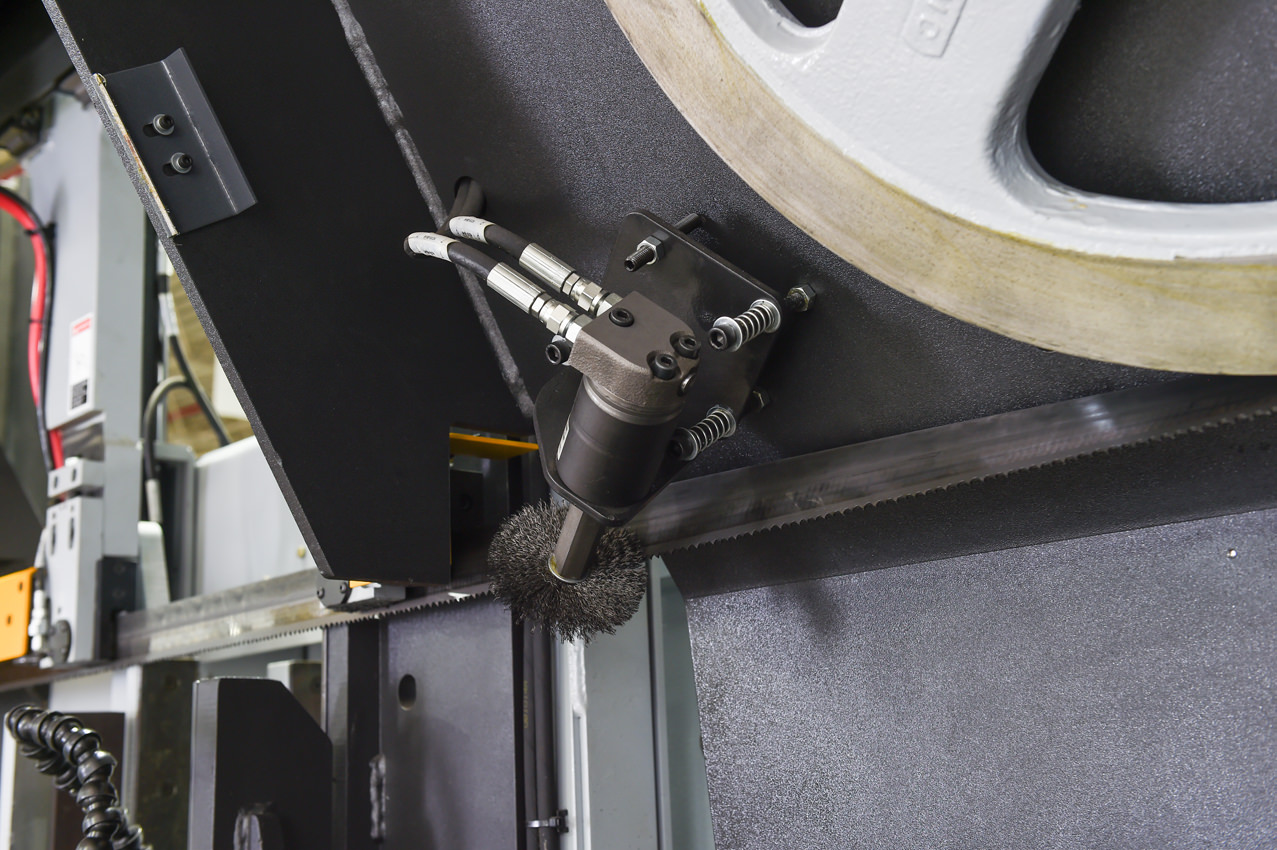

Replaceable blade brush
Robust steel base

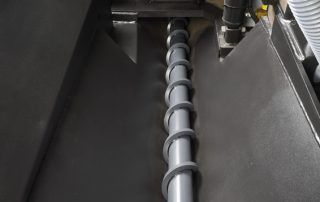

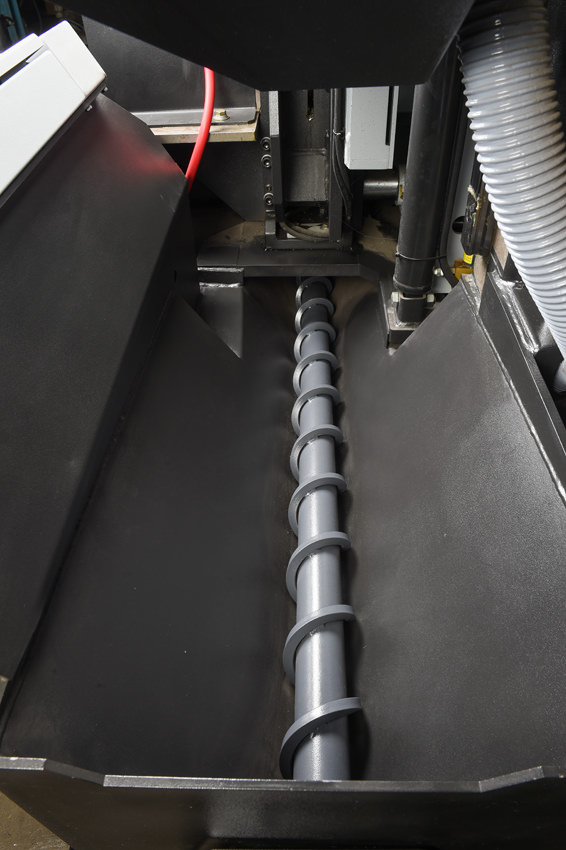

Automatic chip removal auger
Out of stock switch

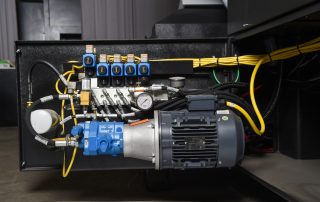

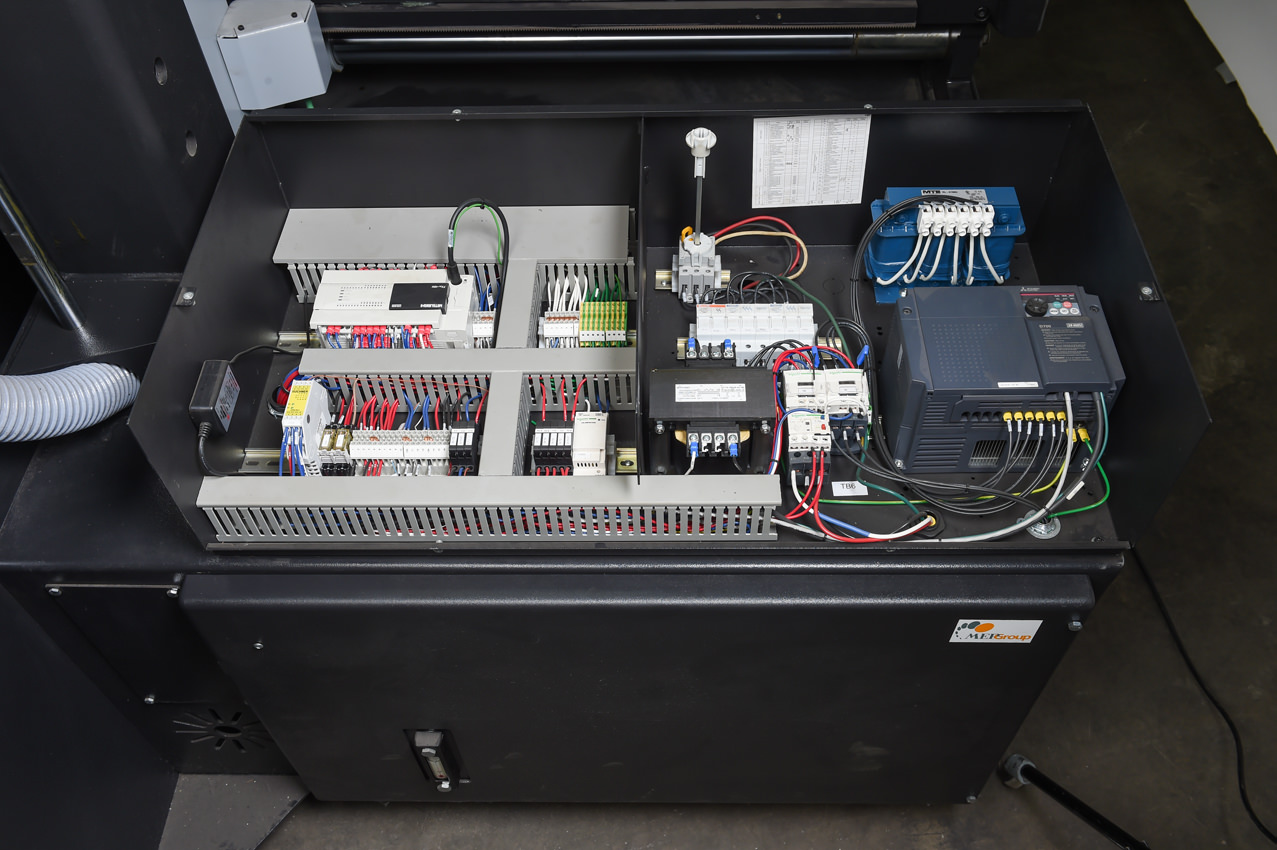

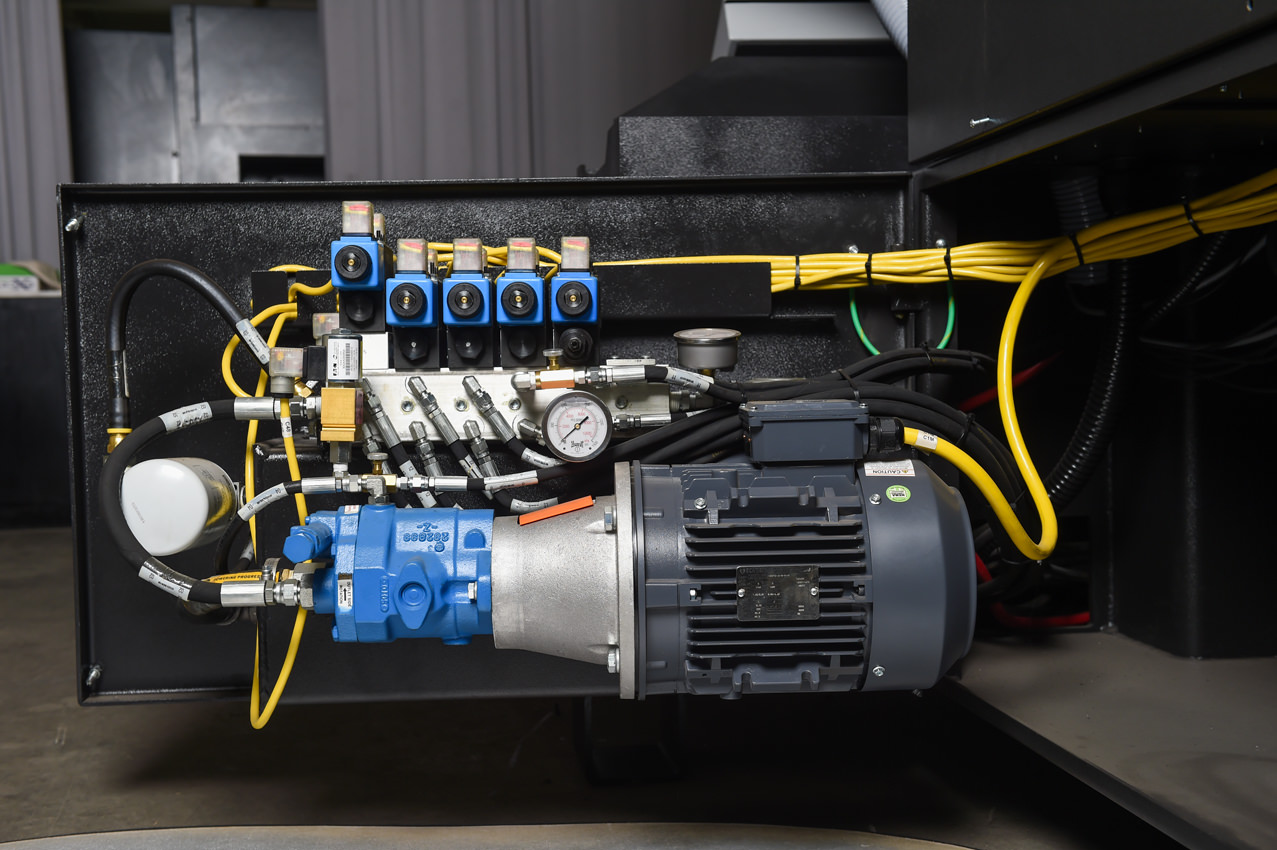

Easy access electrical panel and hydraulics
Blade breakage switch

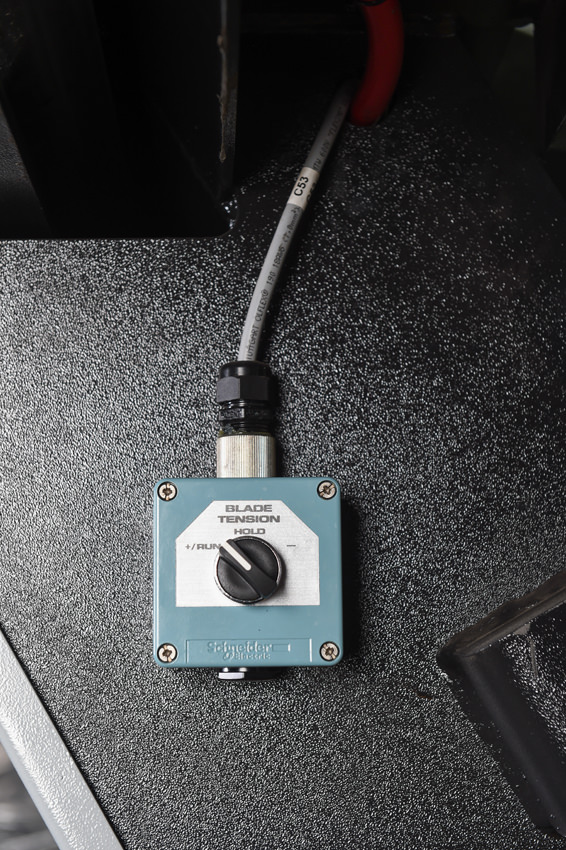

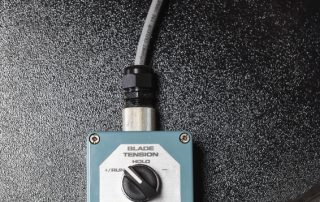

Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning

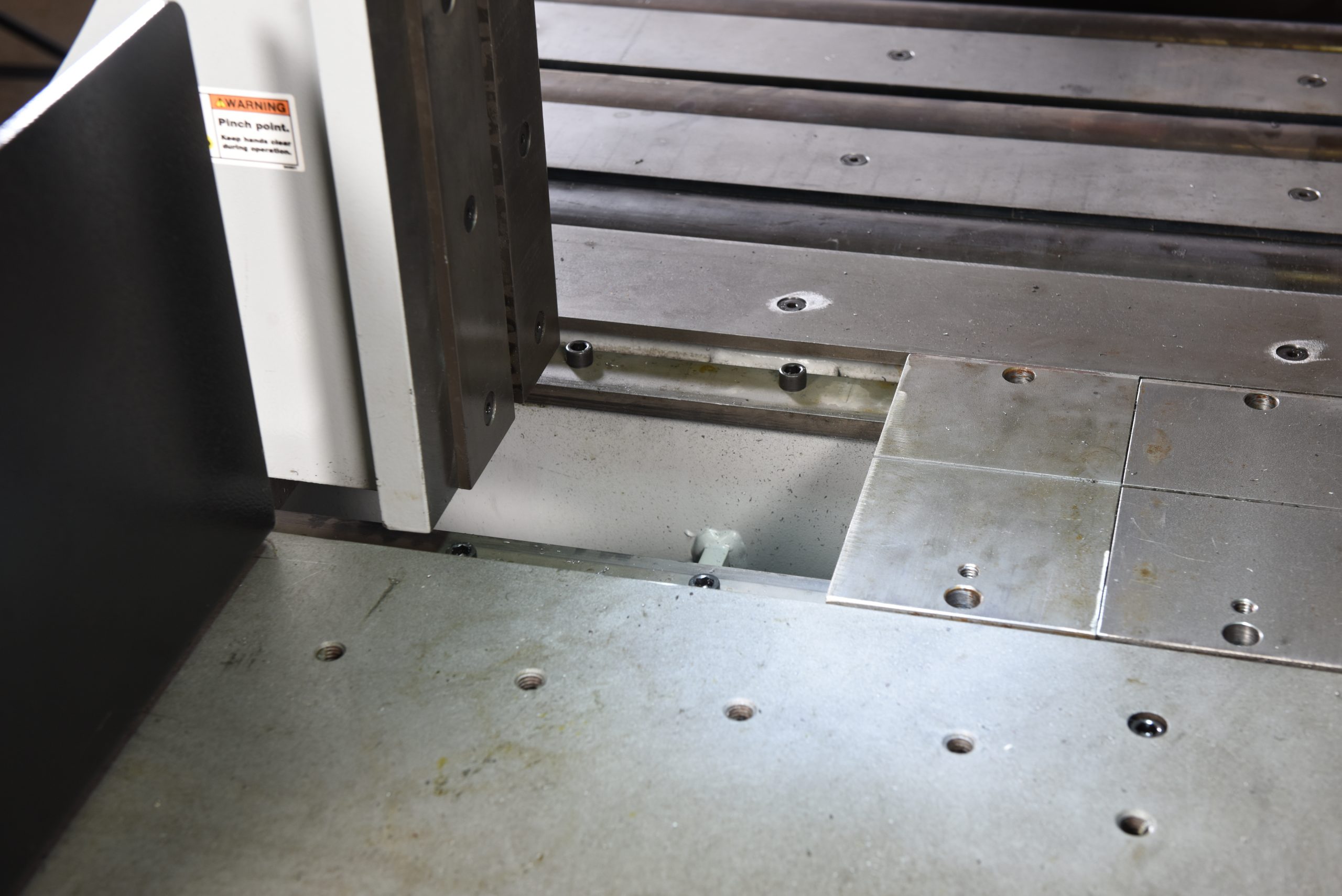

Hardened, replaceable wear plates
Safety door interlocks

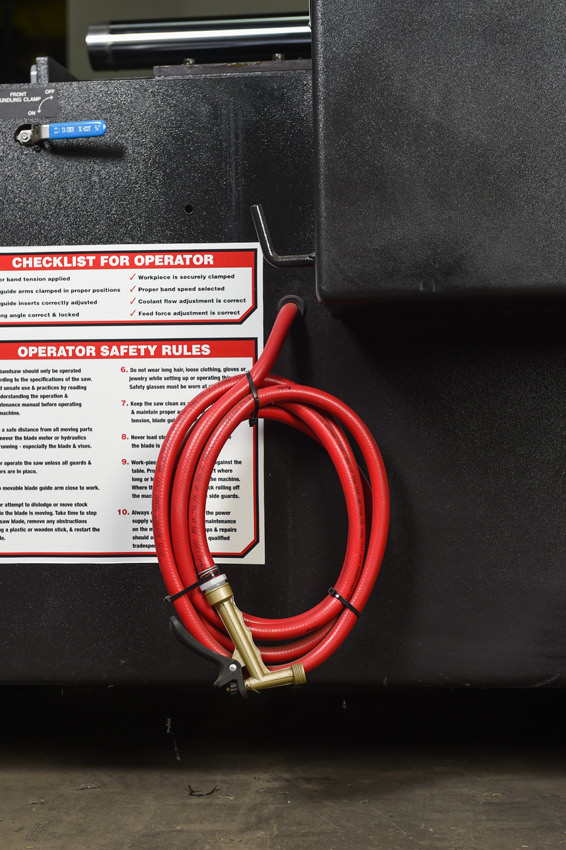

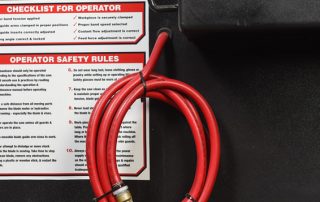

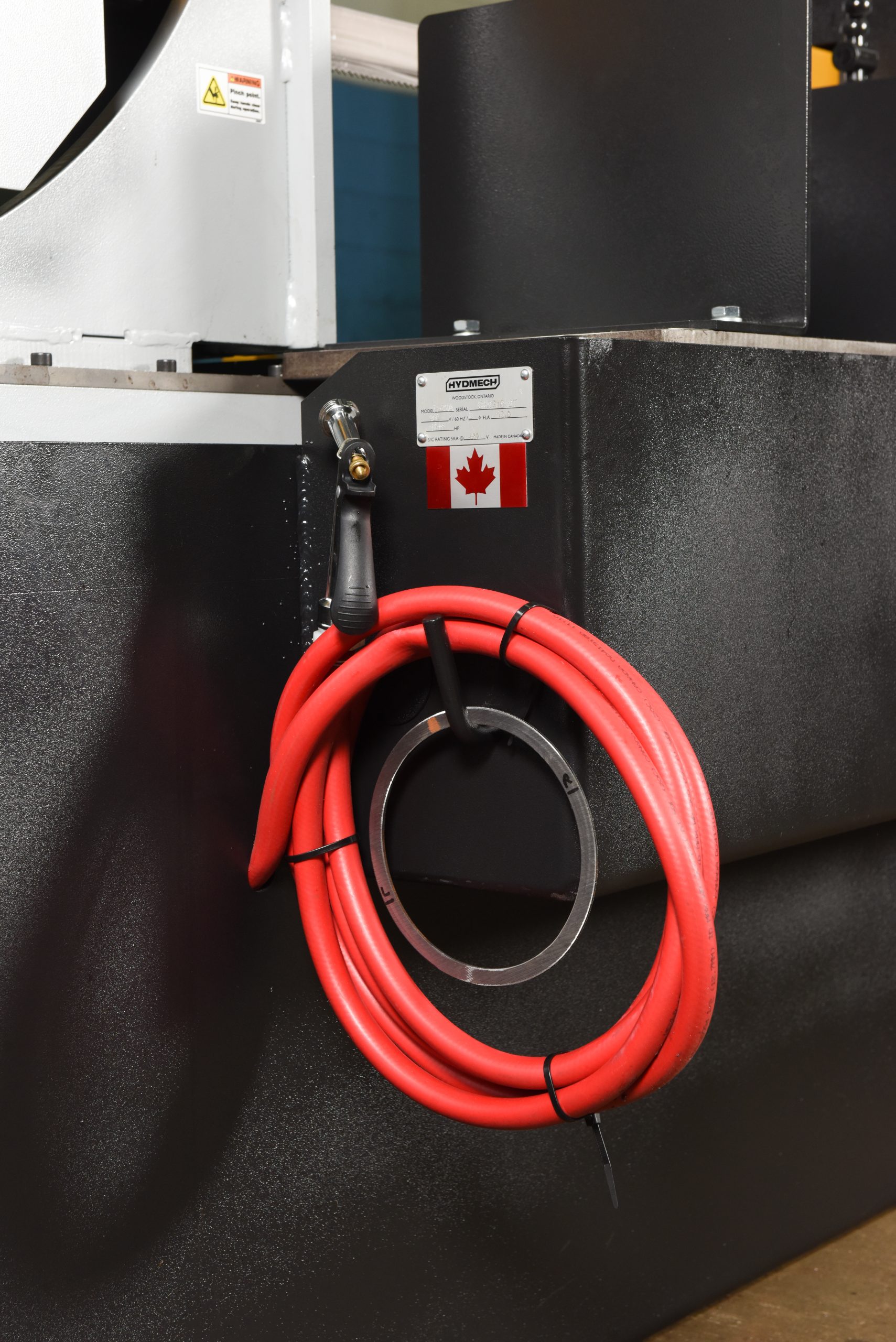

Flood coolant with wash down hose
Work light
Variable vise pressure

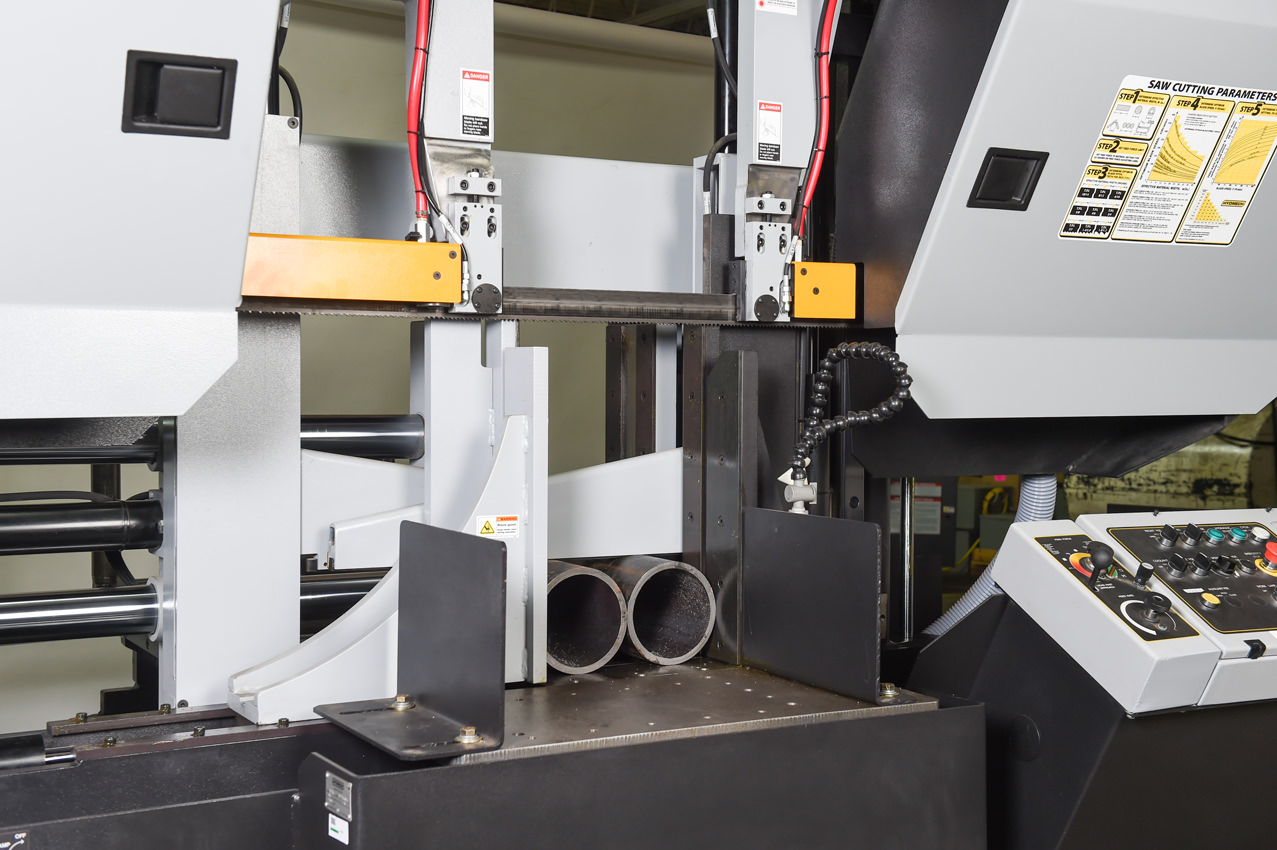

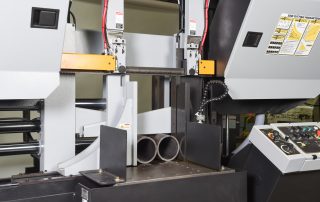

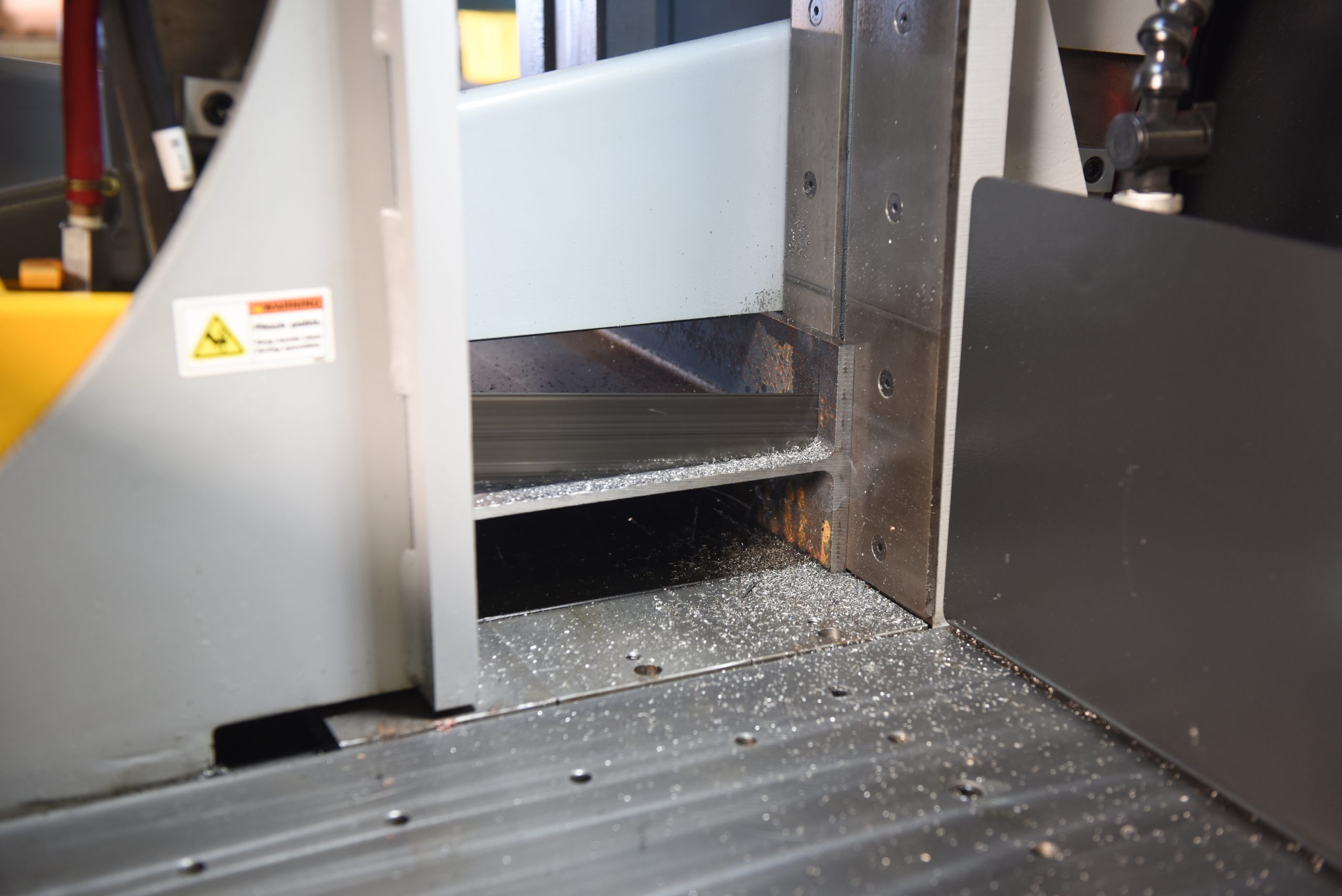

Split Front Vise

The split front vise reduces burrs and allows for holding thin pieces close to the blade on both sides. The blade passes through the vise and the vise holds the workpiece on both sides at the same time.

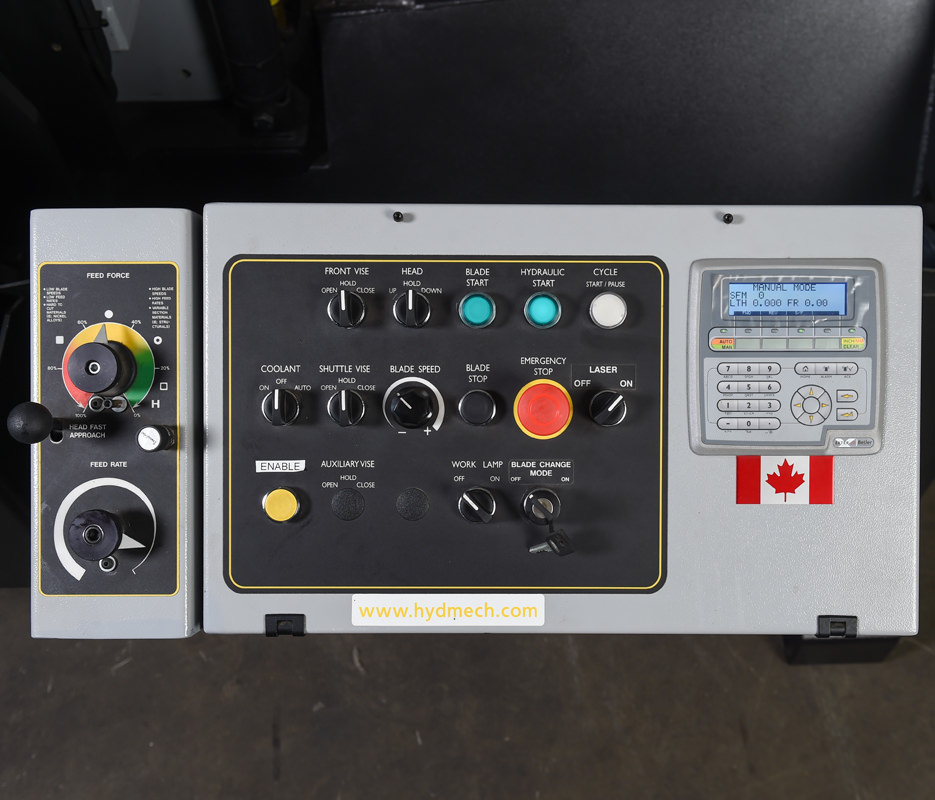

Two Hand Control

Designed for safety, the two button control on the head and the vises, insures that the operators hands are not in the cutting and vising area during saw operation.

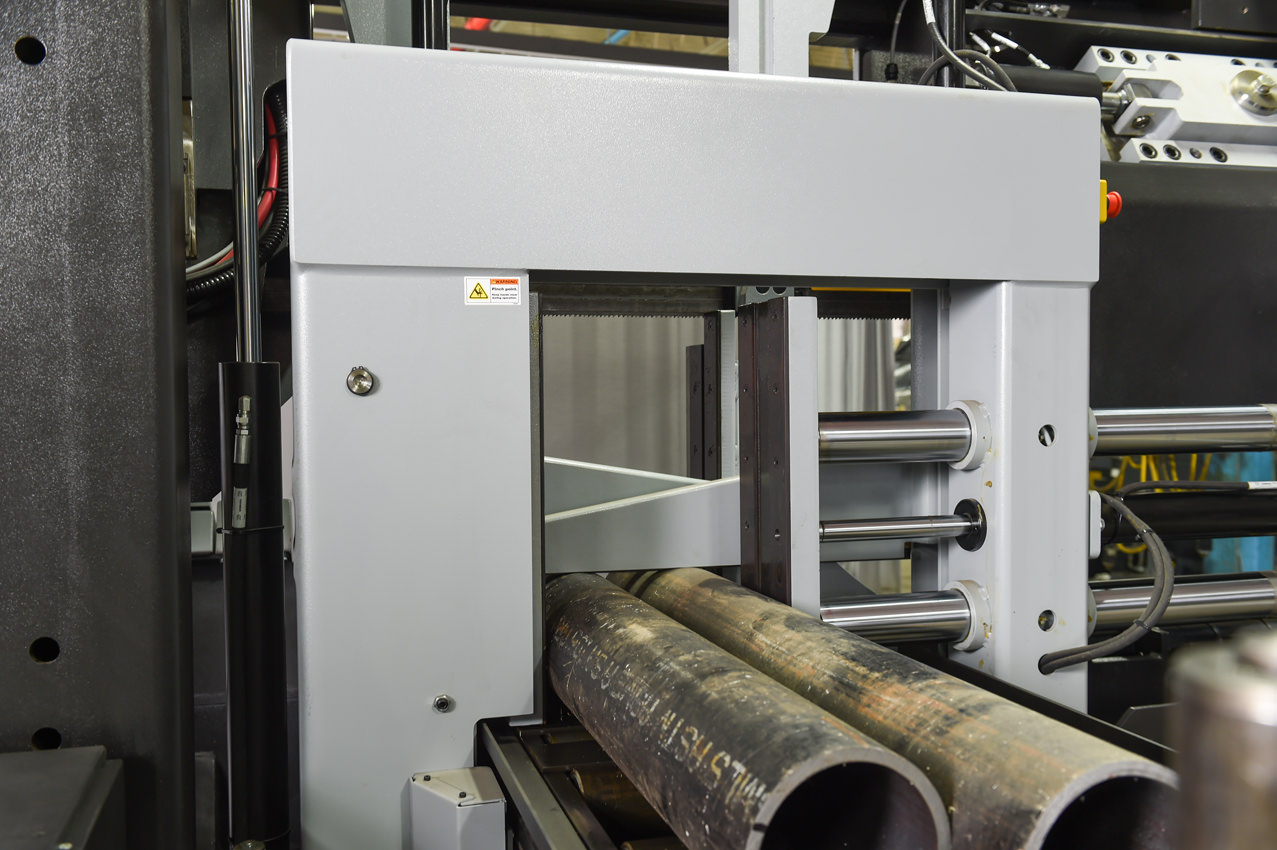

Full Capacity, Full Stroking Vises

Allow you to operate the vises faster and hold large pieces better. Full height vises allow you to hold large objects more efficiently, like I beams. Full stroking vises mean you don’t have to manually change the position of the vise operator.

Chip Conveyor

The chip conveyor makes cleaning the machine easier. It removes the chips from the machine while it is running, which is safe for the operator and clean.
