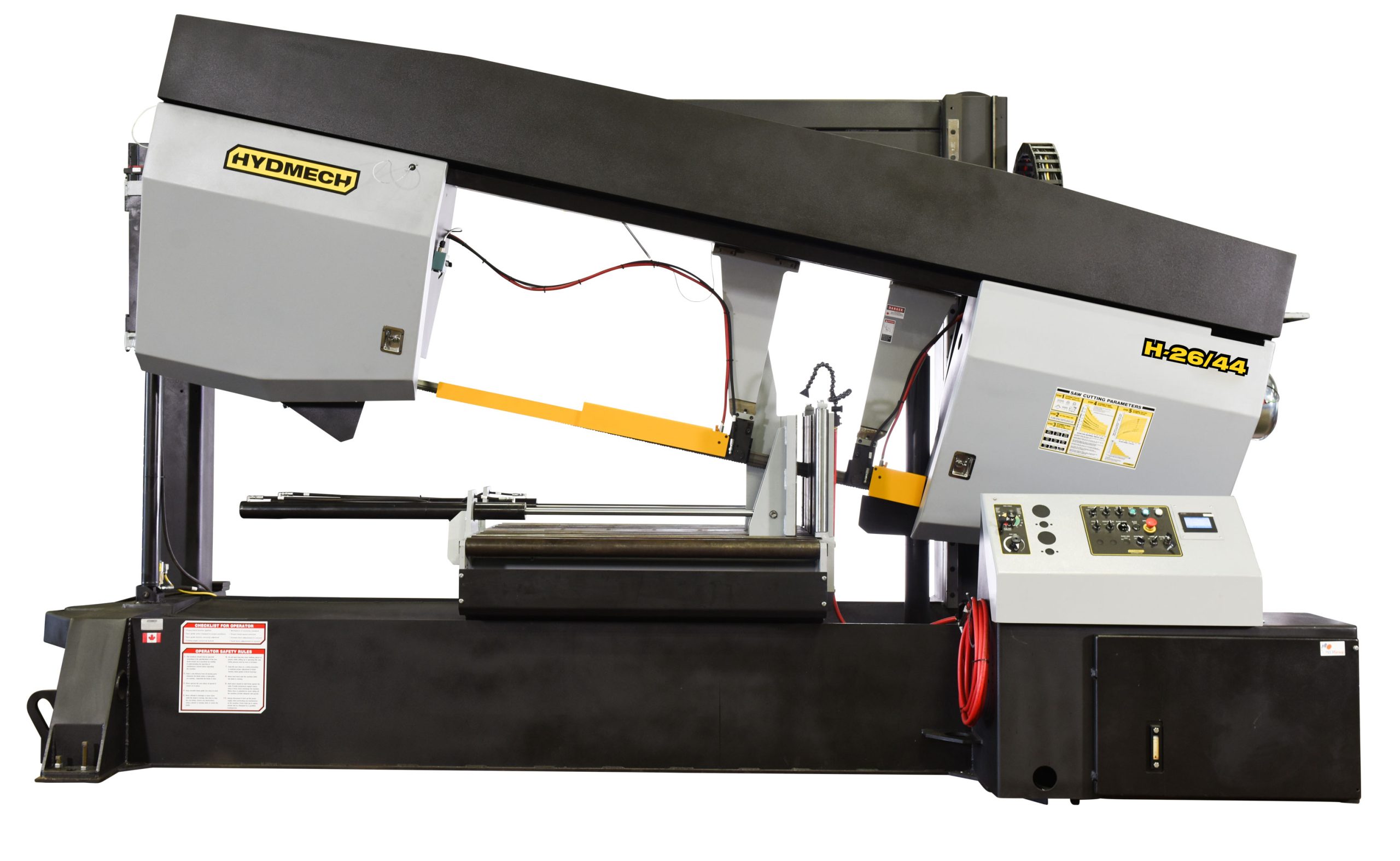

H-26/44 HORIZONTAL BAND SAW

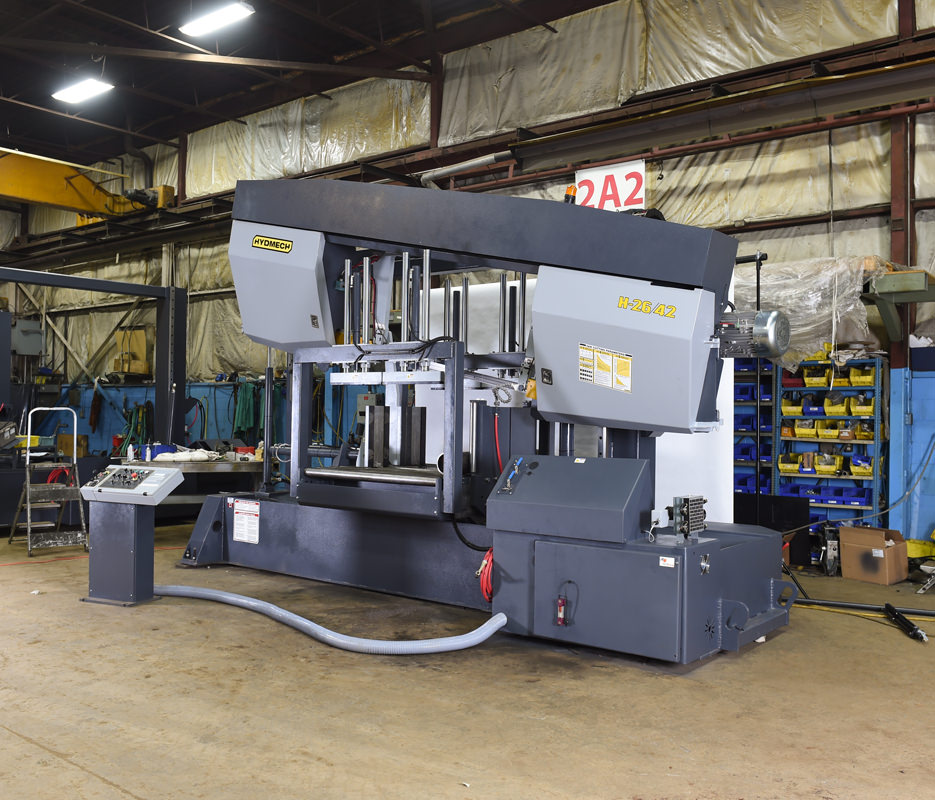

H-26/42 HORIZONTAL BAND SAW

The H-26/44 is a semi-automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

Its 12° degree canted head allows for more efficient cutting and improved blade life. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, and guide arm.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 26″H x 44″W capacity, 20 HP motor, and 2 5/8″ blade, the H-26/44 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	26″ x 44″	29″
Blade Size	2 5/8” x 33′
Blade Drive	20 HP VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	75-300 SFM
Machine Weight	21,000 lbs.
Table Height	38”
Dimensions (w x l x h)	217” x 83” x 137”

METRIC

Capacity	Rectangular (h x w)	Round
90°	660 mm x 1,118 mm	736 mm
Blade Size	67 mm x 10058 mm
Blade Drive	15 kW VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	22-91 m/min
Machine Weight	9454 kg
Table Height	965 mm
Dimensions (w x l x h)	5511 x 2082 x 3479 mm

STANDARD FEATURES

12° canted head
Built to withstand heavy fabricating environments
One piece design – no alignment necessary
Steel guide arms
Hydraulic positive down feed
20 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Cast iron band wheels
Semi-automatic PLC control
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Laser light

12 Degree Canted Head

Its 12° degree canted head allows for more efficient cutting and improved blade life. It allows blade to be more forgiving when making interruptive cuts.

Heavy Duty Construction

At over 21,000 lbs, the H-26/44 is extremely well built to withstand the wear and tear of heavy day to day use.

Electronic Dual Down Feed

Electronic DDF feed is controlled by amperage draw chip load. Head feeding will automatically adjust based on relative chip load. It’s very responsive closed loop system gives better cutting and longer blade life.

20 HP True Direct Blade Drive

The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life.
