H-40/65 HORIZONTAL BAND SAW

H-40/65 HORIZONTAL BAND SAW

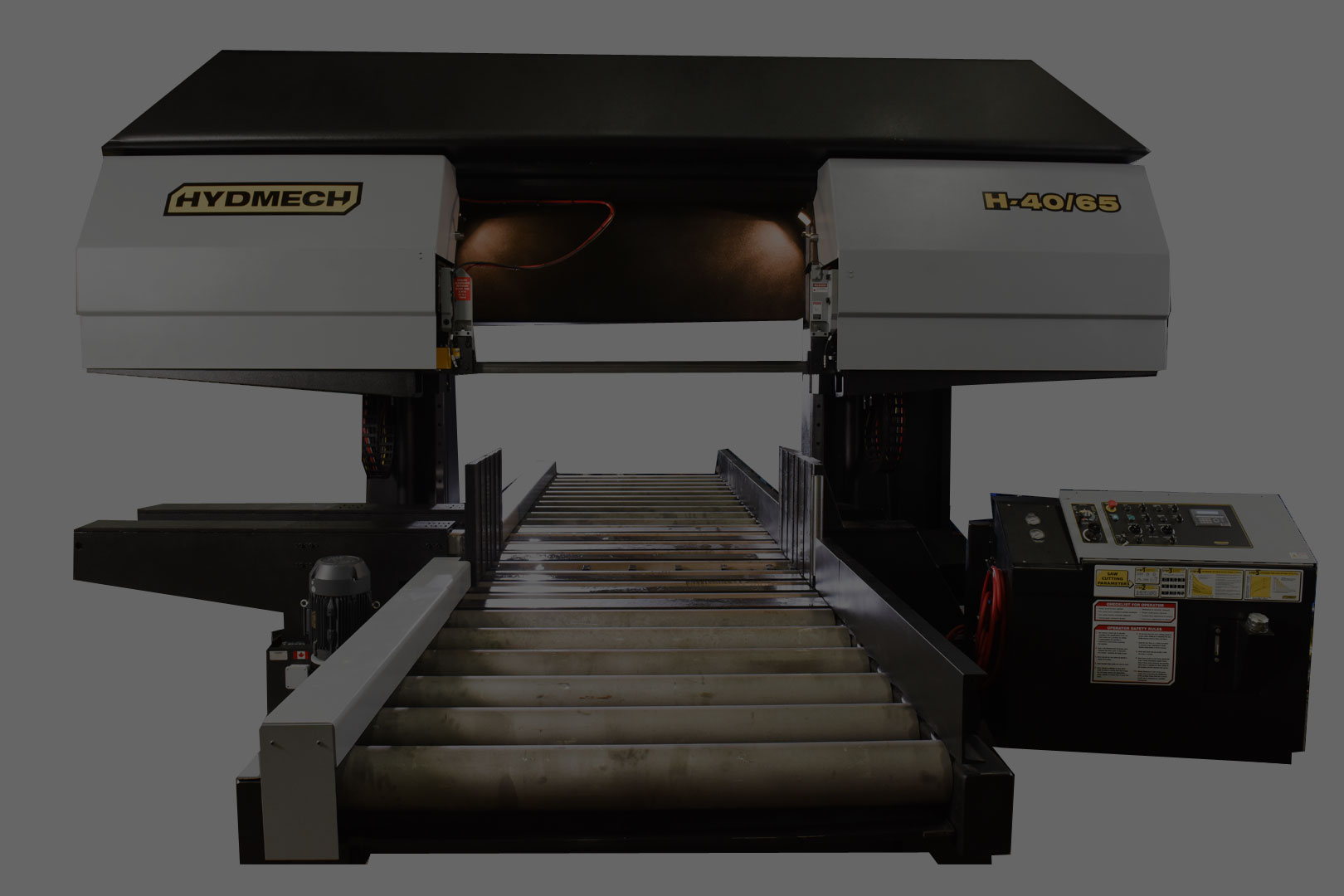

The H-40/65 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-40/65 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.

Featuring a 40″H x 65″W capacity, 20 HP motor, and 3″ blade, the H-40/65 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

Capacity Rectangular (h x w) Round
90° 40″ x 65″ 40″
Blade Size 3” x 40’ 4”
Blade Drive 20 HP VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed 45-225 SFM
Machine Weight 45,000 lbs.
Table Height 27”
Dimensions (w x l x h) 235” x 102” x 145”
Capacity Rectangular (h x w) Round
90° 1016 mm x 1651 mm 1016 mm
Blade Size 76.2 mm x 12294 mm
Blade Drive 15 kW VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed 14-69 m/min
Machine Weight 20,411 kg
Table Height 686 mm
Dimensions (w x l x h) 5969 x 2591 x 3683 mm

STANDARD FEATURES

  • Dual pots horizontal band saws

  • One piece design – no alignment necessary

  • 8’ of powered rollers built into the bed of the machine

  • Cast iron guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times

  • 20 HP VFD. True direct blade drive – no belts/pulleys

  • Full capacity hydraulic vises

  • Cast iron band wheels

  • User friendly operator control

  • Replaceable blade brush

  • Robust steel base

  • Automatic chip removal auger

  • Easy access electrical panel and hydraulics

  • Blade breakage switch

  • • Hydraulic band tensioning with digital readout

  • 5 HP hydraulic pump provides system pressure

  • Replaceable carbide guide inserts

  • Hardened, replaceable wear plates

  • Safety door interlocks

  • Flood coolant with wash down hose

  • Work light

  • Laser light

H-40/65 Durable Machine

Extremely Durable Machine

At over 45,000 lbs, the H-40/40 is extremely well built and design to withstand the wear and tear of heavy material. It has a work load capacity of 50,000 lbs.

H-40/65 8 Foot Powered Roller

8’ of powered Rollers

Move large blocks with ease thanks to the H-4040’s built in 8’ of powered rollers.

H-40/65 Large 3 Inch Blade

Large 3” Blade

Maximize your beam strength when cutting large blocks

S-20 Horizontal Pivot Band Saw Angle Measurement

Electronic Dual Down Feed

Electronic DDF feed is controlled by amperage draw chip load. Head feeding will automatically adjust based on relative chip load. It’s very responsive closed loop system gives better cutting and longer blade life.

OPTIONAL FEATURES

  • Outboard vise

  • Powered conveyors

  • Power transformer
Download Brochure
Download Layout Drawing

PHOTO GALLERY

H-40/65 8 Feet Of Powered Rollers Built Into The Bed Of The Machine
H-40/65 20 HP True Direct Blade Drive No Belts Or Pulleys
H-40/65 Automatic Chip Removal Auger
H-40/65 Cast Iron Band Wheels

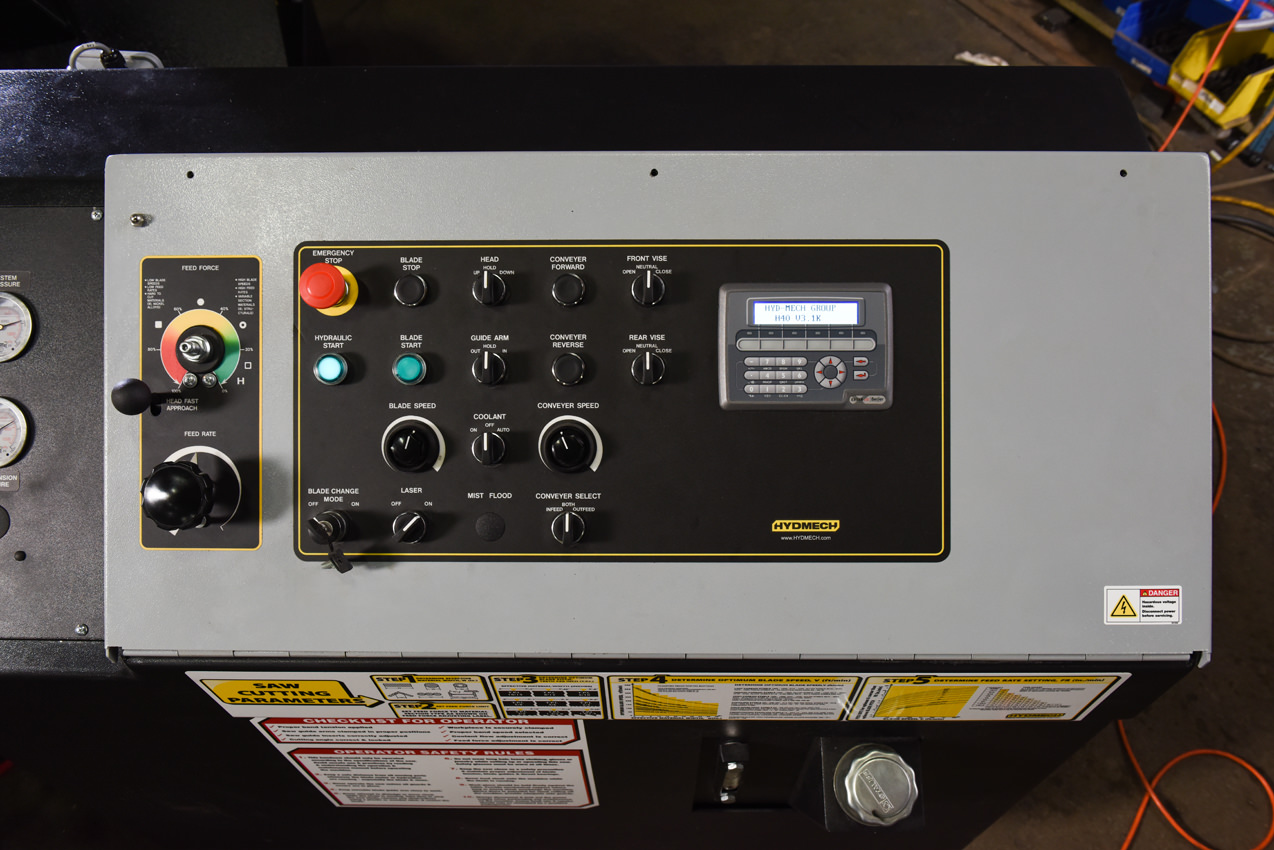

H-40/65 Control Panel
H-40/65 Features Cast Iron Guide Arms

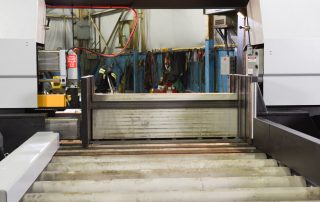

H-40/65 Full Capacity Hydraulic Vises
H-40/65 Hydraulic Band Tensioning With Digital Readout
H-40/65 Large Capacity Cuts

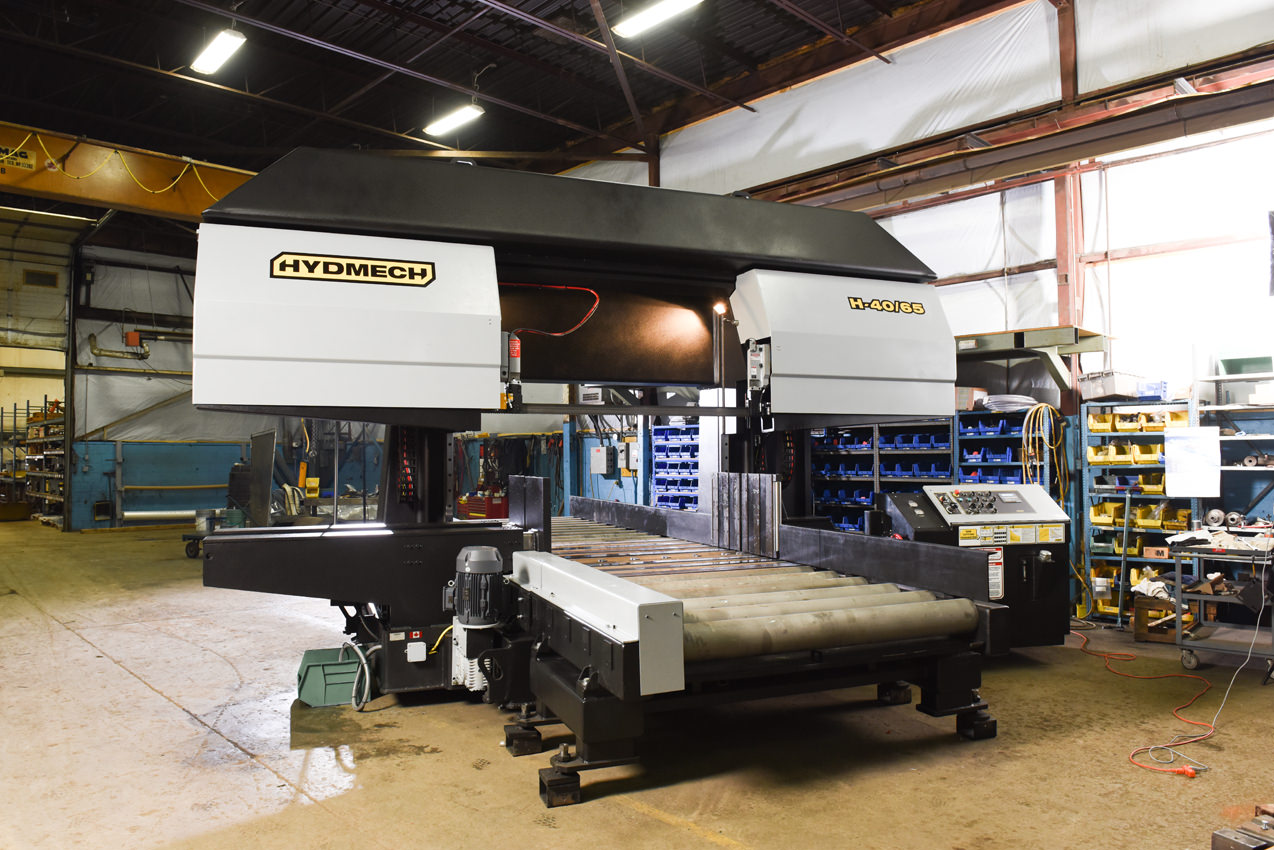

H-40/65 One Piece Design No Alignment Necessary
