VCS-36HD VERTICAL CONTOUR BAND SAW
VCS-36HD VERTICAL CONTOUR BAND SAW
Built to tackle your toughest contour needs
The VCS-36HD is a multi-purpose machine that can cut a large range of materials – from steel to aluminum, to wood, plastics, rubber, and everything in between! With the ability to be used as a friction saw, cutting even hardened steel is a breeze.
With a throat (band to column) of 36″ and work height of 20″, 15 Hp motor, and the ability to utilize blades from 1/18″ to 1″, the HYDMECH VCS-36HD is the ideal choice for all your vertical contour cutting needs.
MACHINE SPECIFICATIONS
| Capacity Throat (band to column) |
36” |
| Maximum Work Height | 20″ |
| Blade Drive | 15 HP VFD |
| Blade Speed | 20-15,000 SFM |
| Blade Size | 1/18″ to 1 ” x 246″ |
| Table Dimensions | 36″ x 36″ |
| Voltages Available | 480 v (all other voltages require optional transformer) |
| Machine Weight | 5,000 lbs. |
| Dimensions (w x l x h) | 77” x 64” x 108” |
| Capacity Throat (band to column) |
914 mm |
| Maximum Work Height | 508 mm |
| Blade Drive | 11 KW |
| Blade Speed | 6-4,572 MPM |
| Blade Size | 3.2 mm to 25.4 mm x 6248.4 mm |
| Table Dimensions | 914 mm x 914 mm |
| Voltages Available | 480 v (all other voltages require optional transformer) |
| Machine Weight | 2268 kg |
| Dimensions (w x l x h) | 1955 mm x 1625 mm x 2743 mm |
STANDARD FEATURES

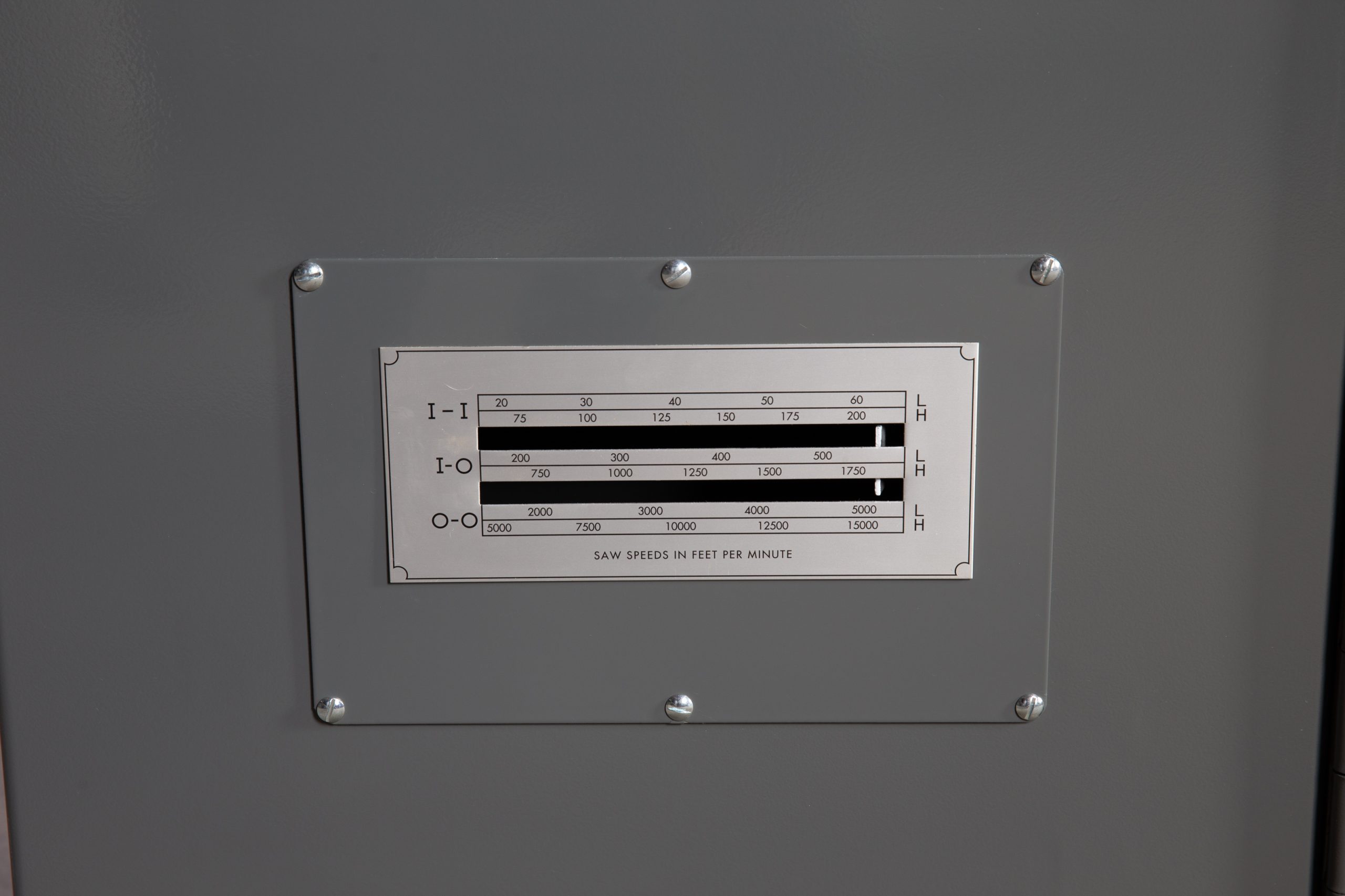

- Blade speed indicator
- Blade tension indicator

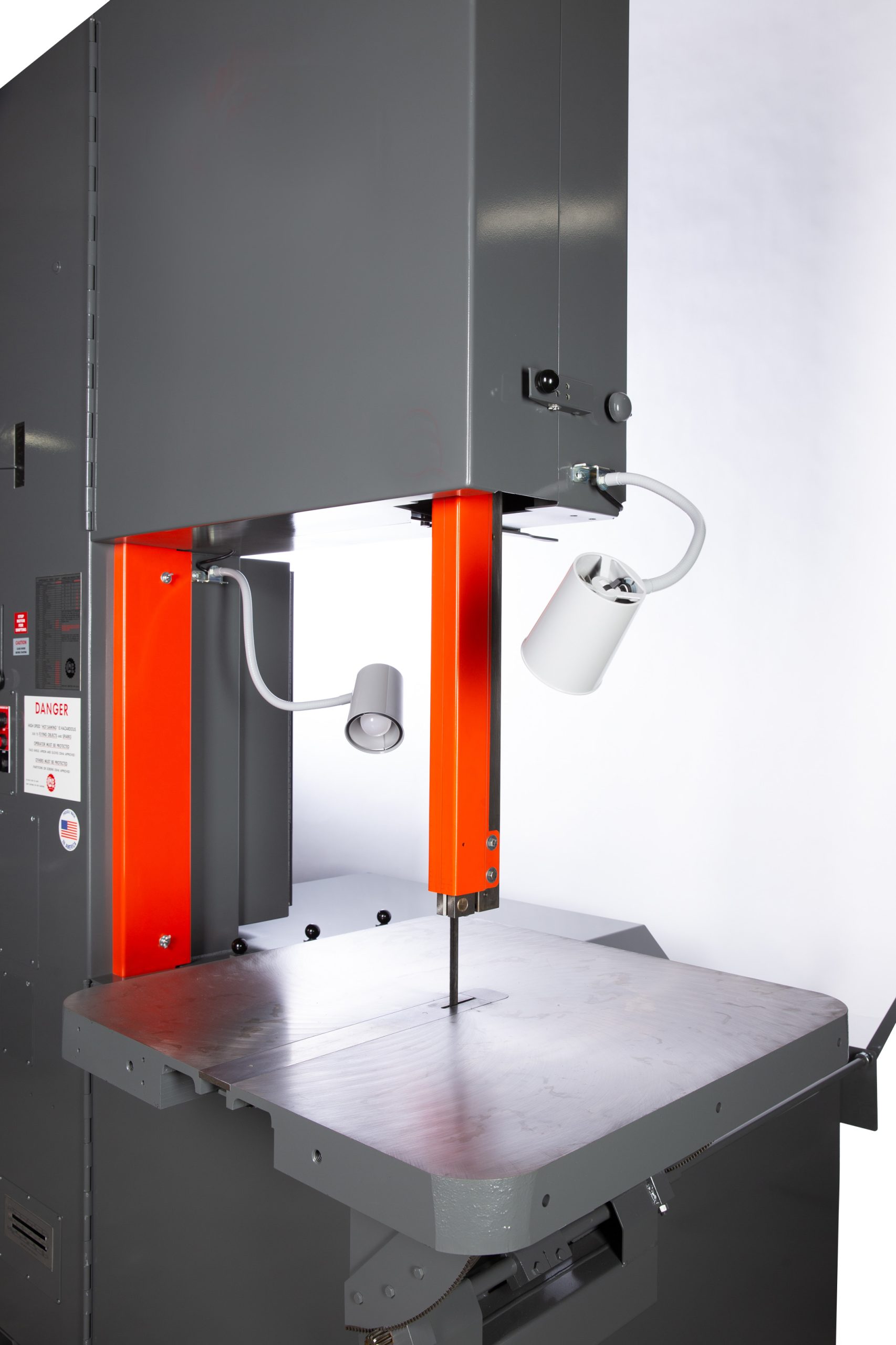

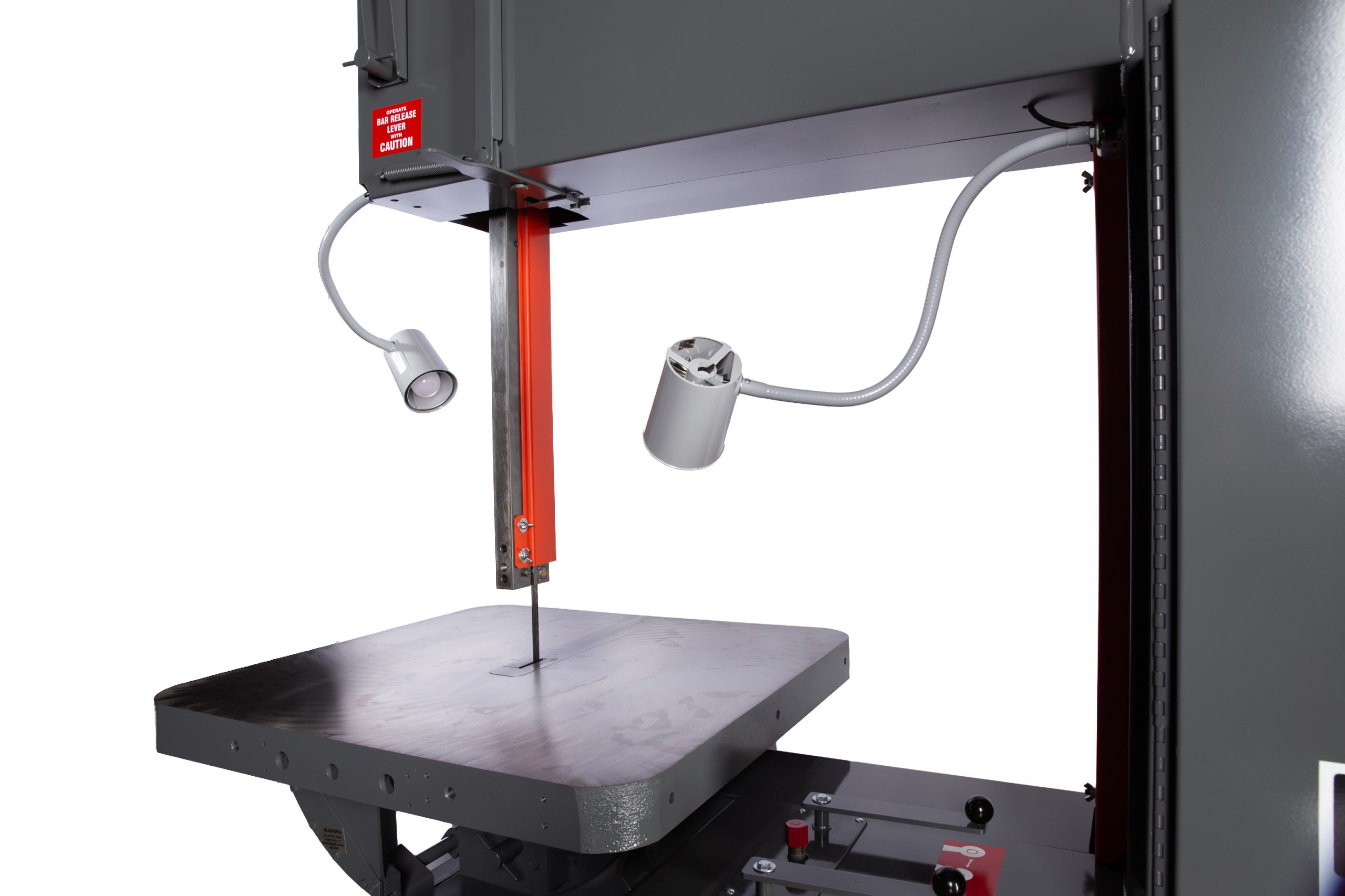

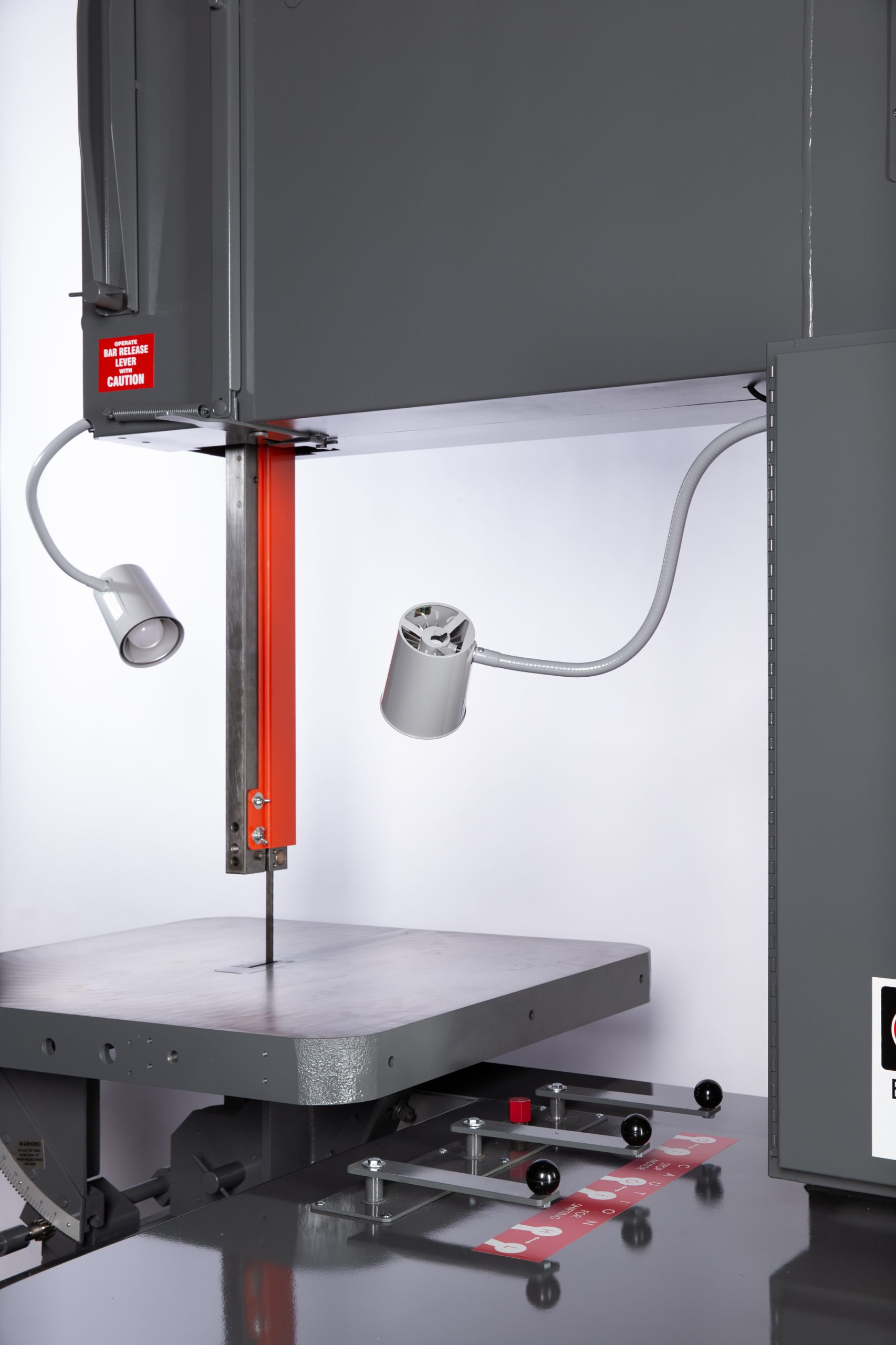

- Work Light (2)
- Safety door interlocks

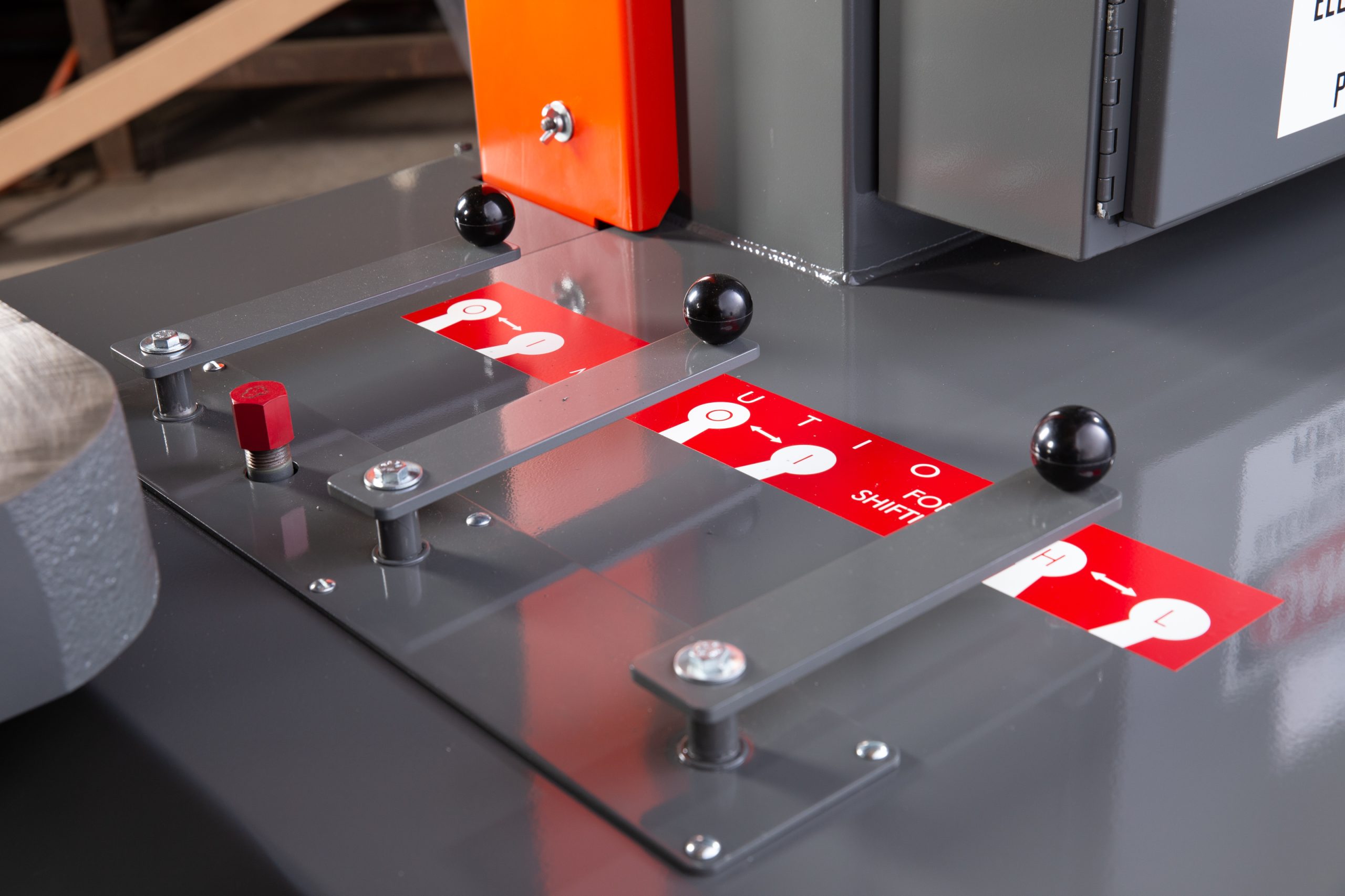

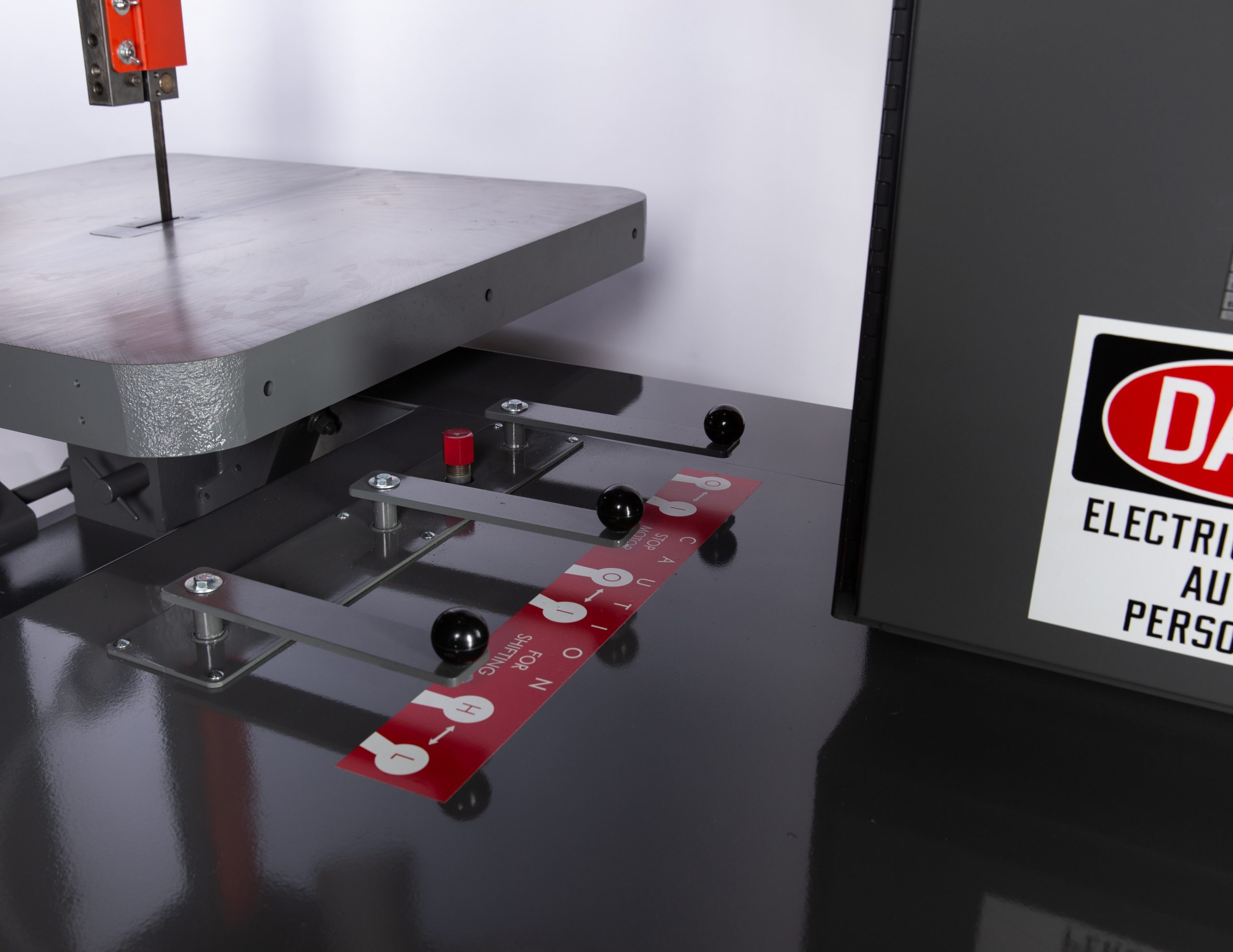

- Six speed gearbox

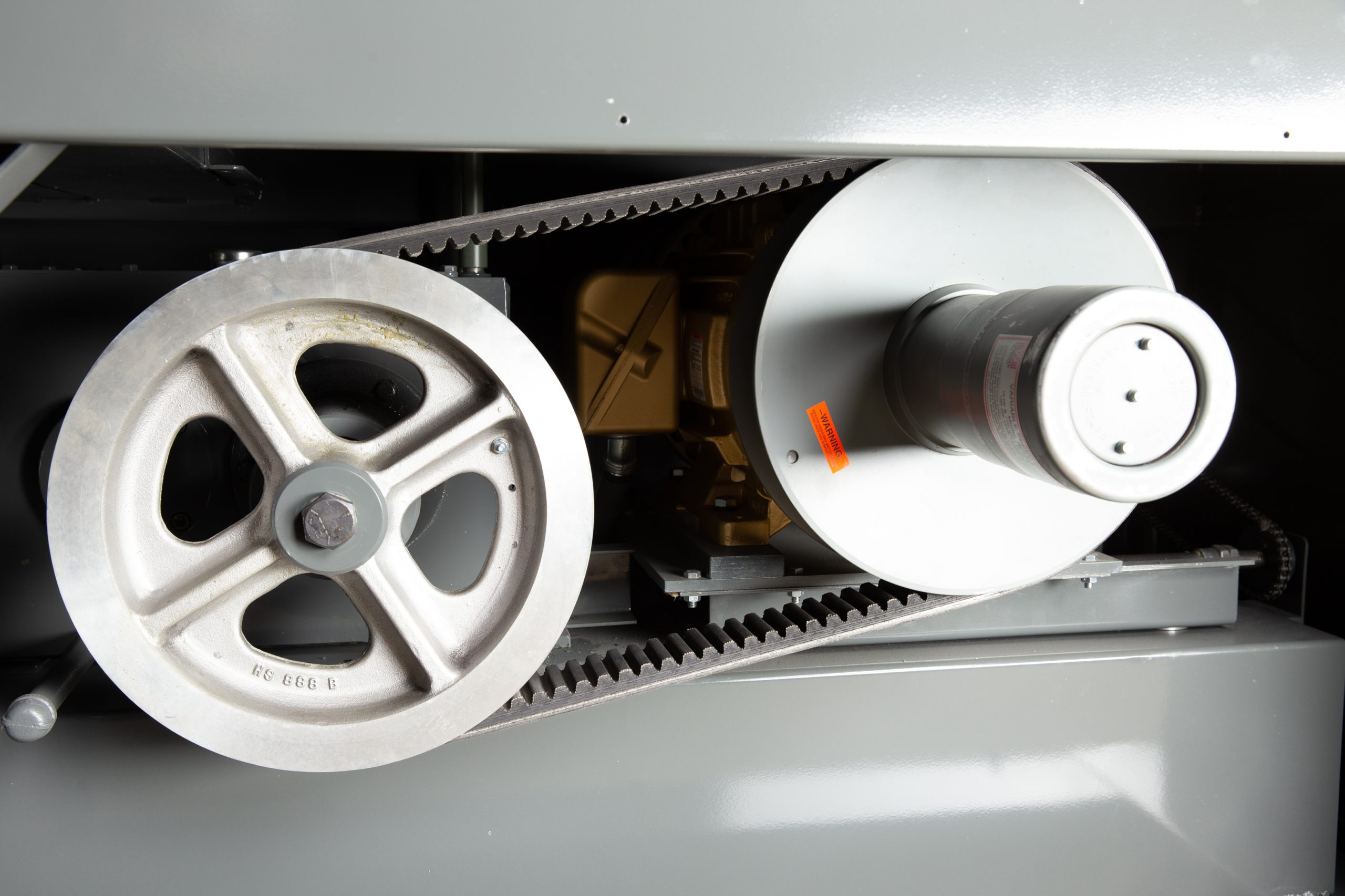

- Variable Pulley Speed Control
- Wheel brakes

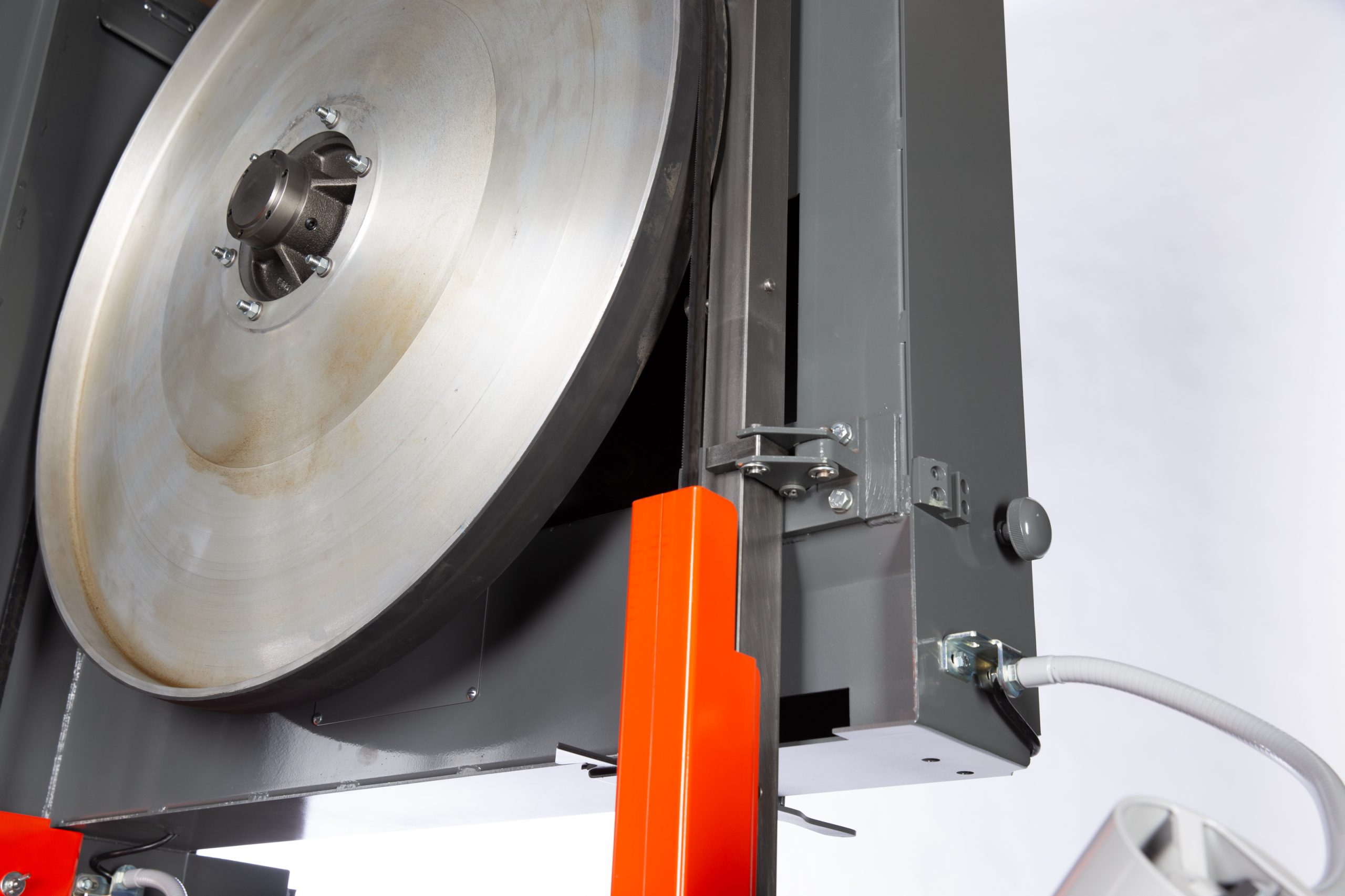

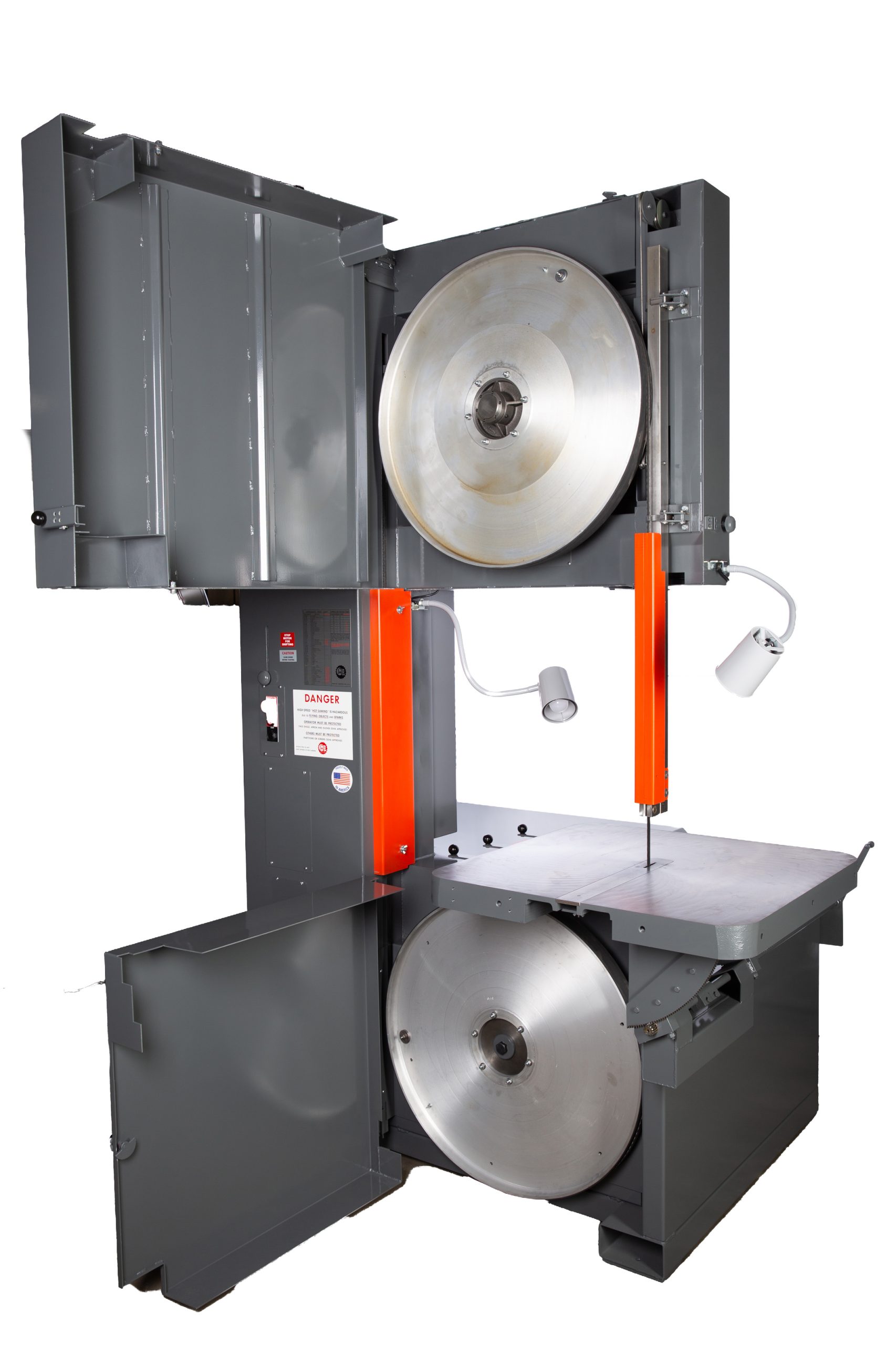

- 36” Wheels with crowned vulcanized tires
- One set of three piece guide blocks
- One set of guide inserts for 5/8” and 1” blades
- Other guide block and insert pricing available upon request
OPTIONAL FEATURES
- Air blower
- Rip fence
- Air/Hyd power feed
- Mitering attachment
- Blade welder w/grinder
- Extended work height – 30″
- Power transformer

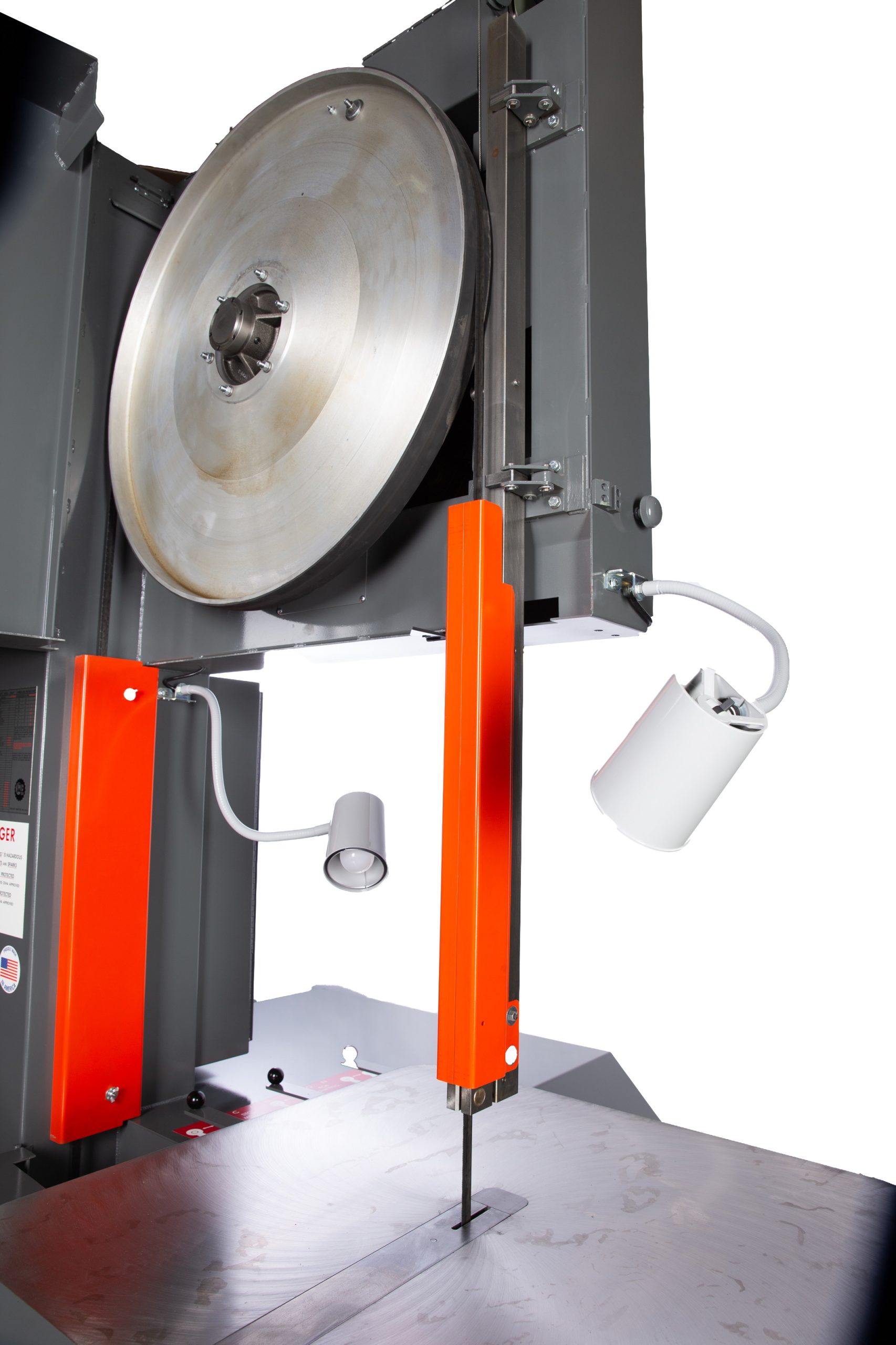

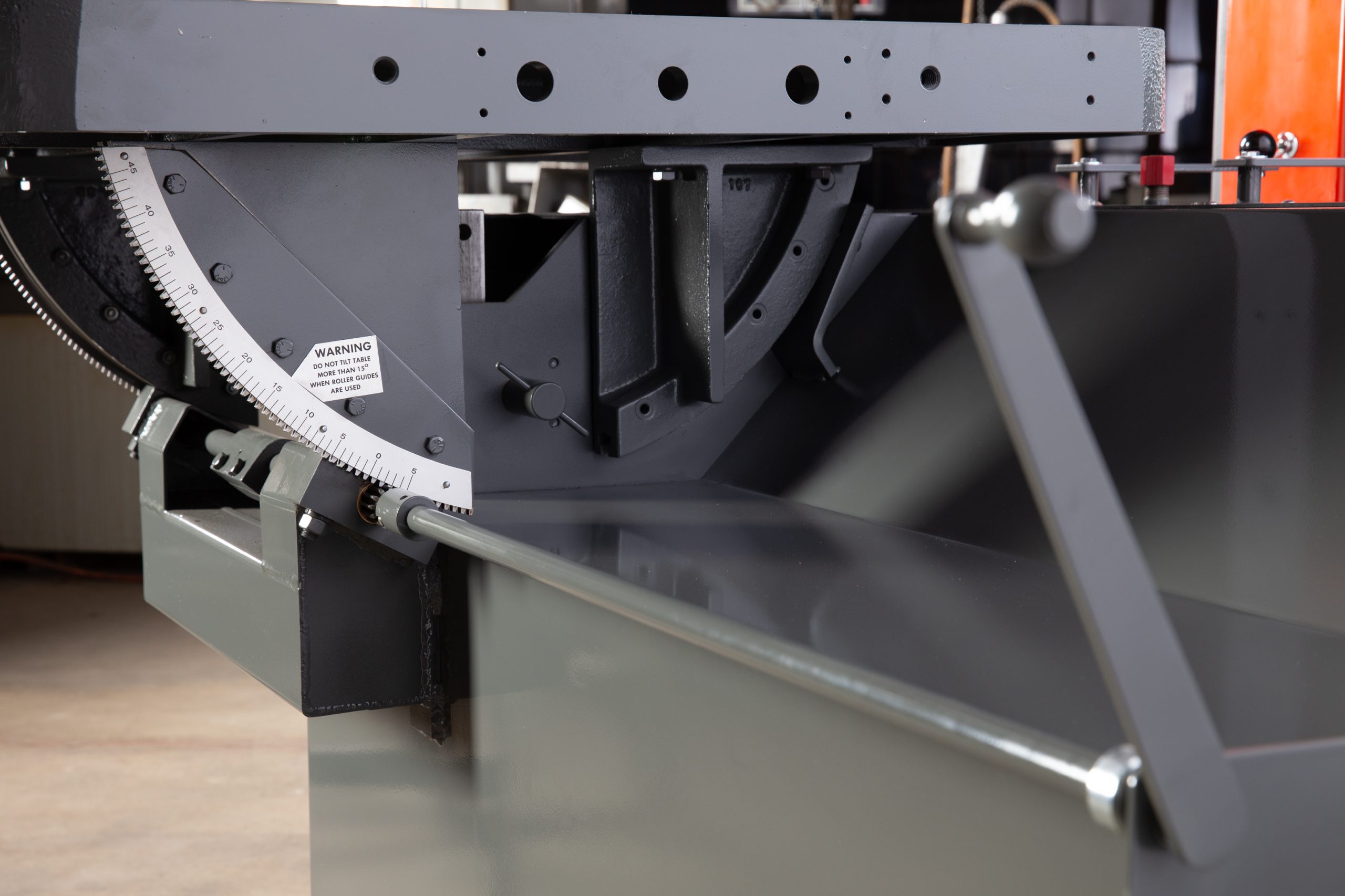

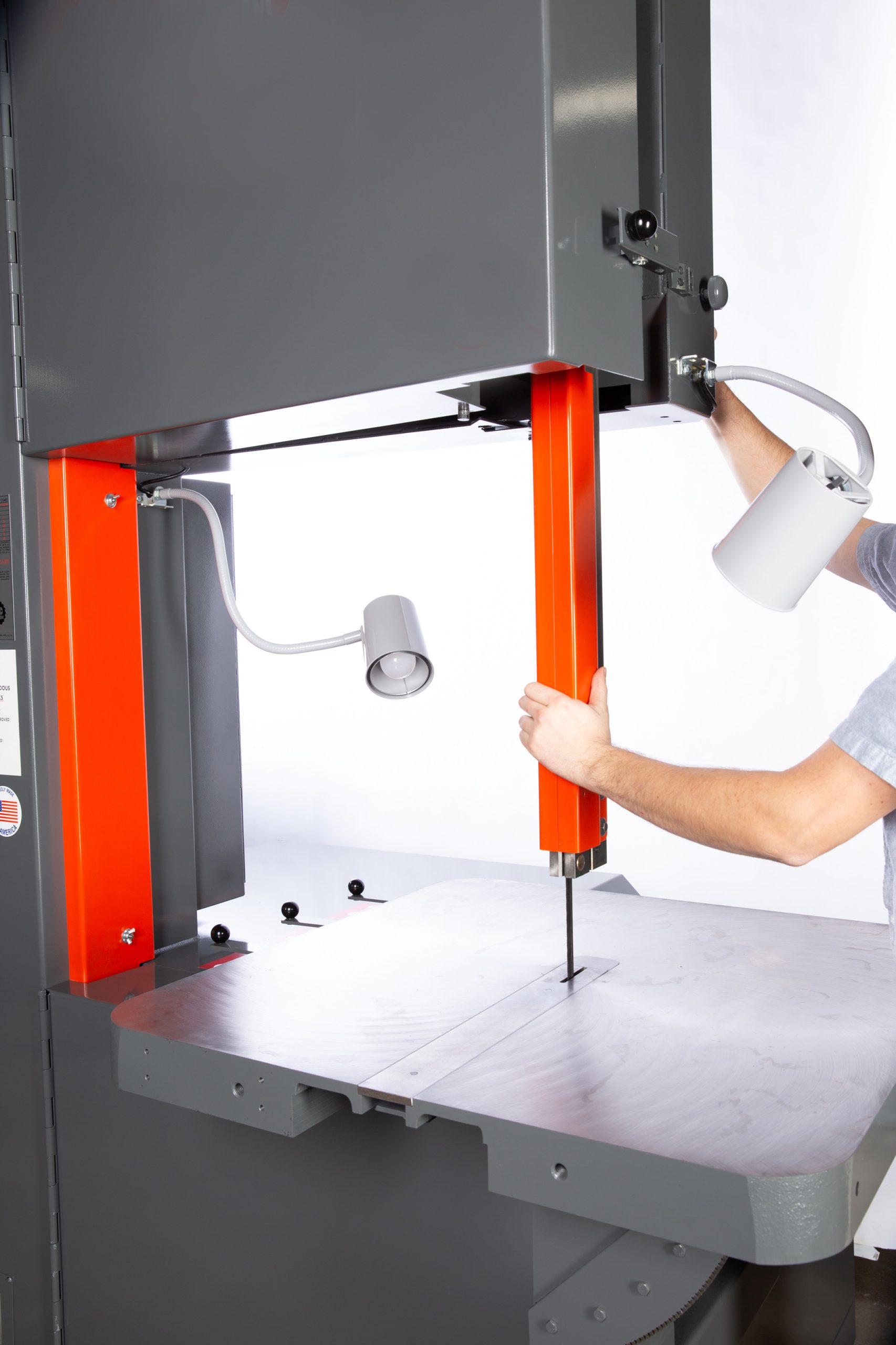

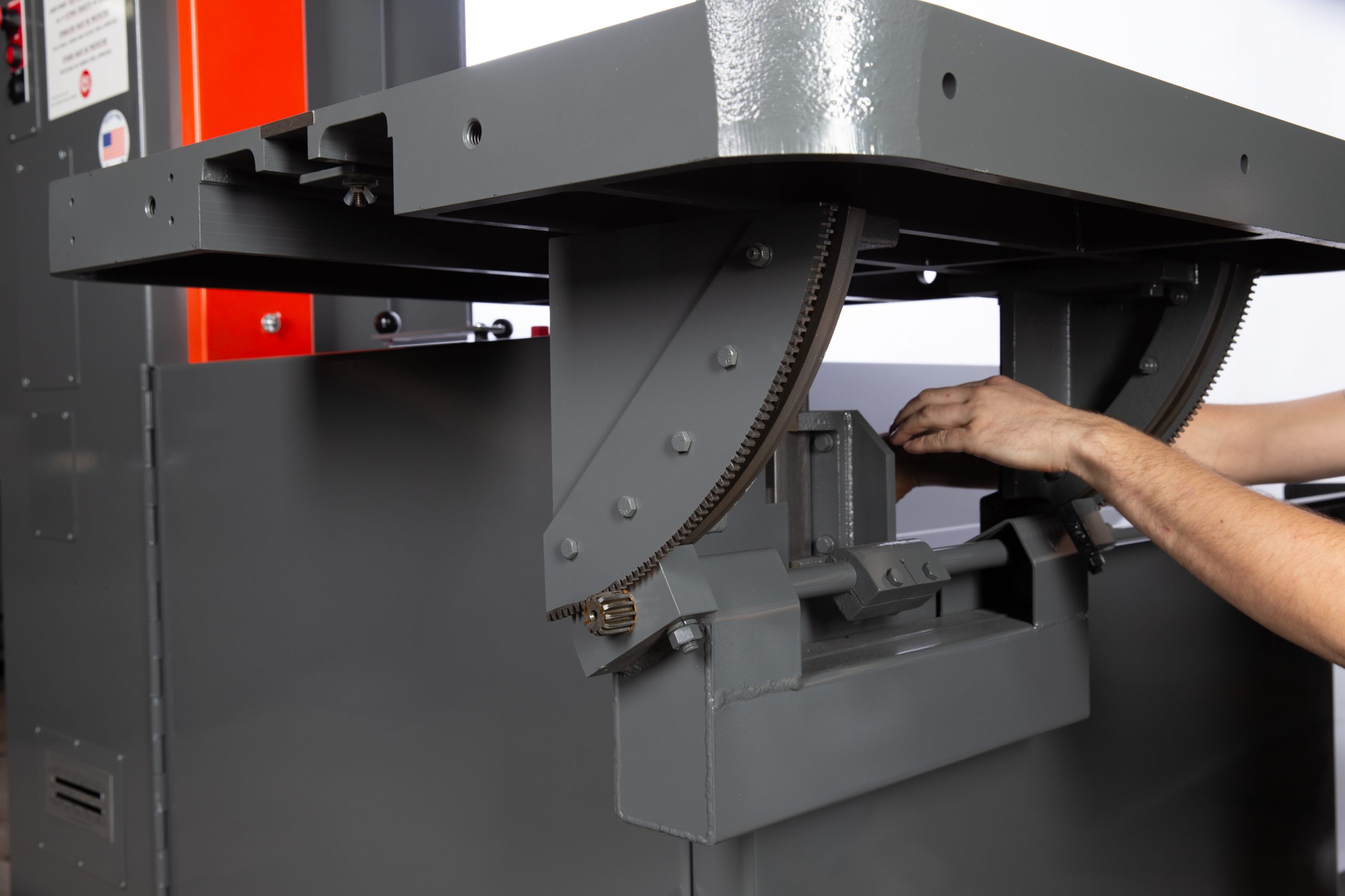

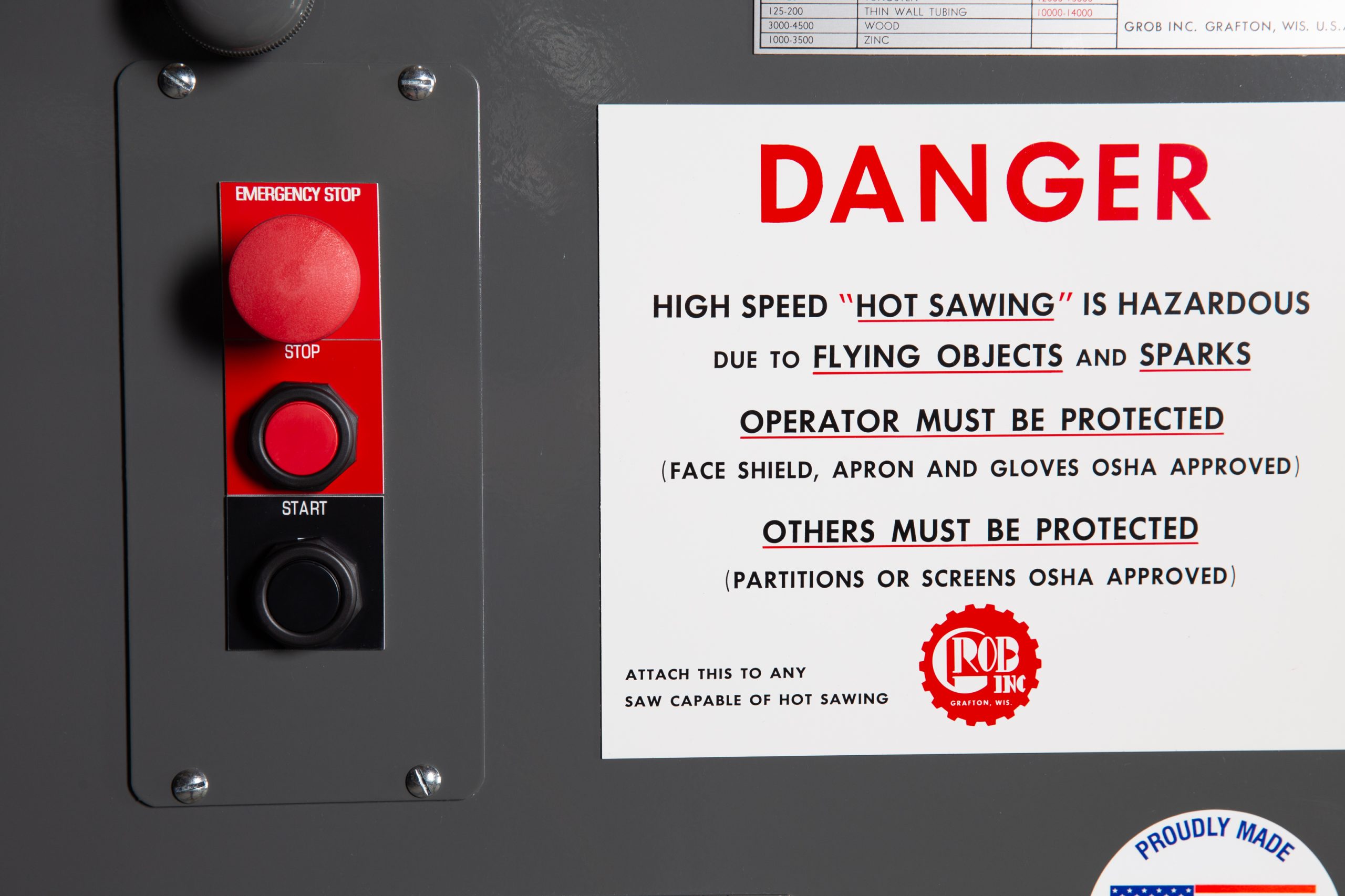

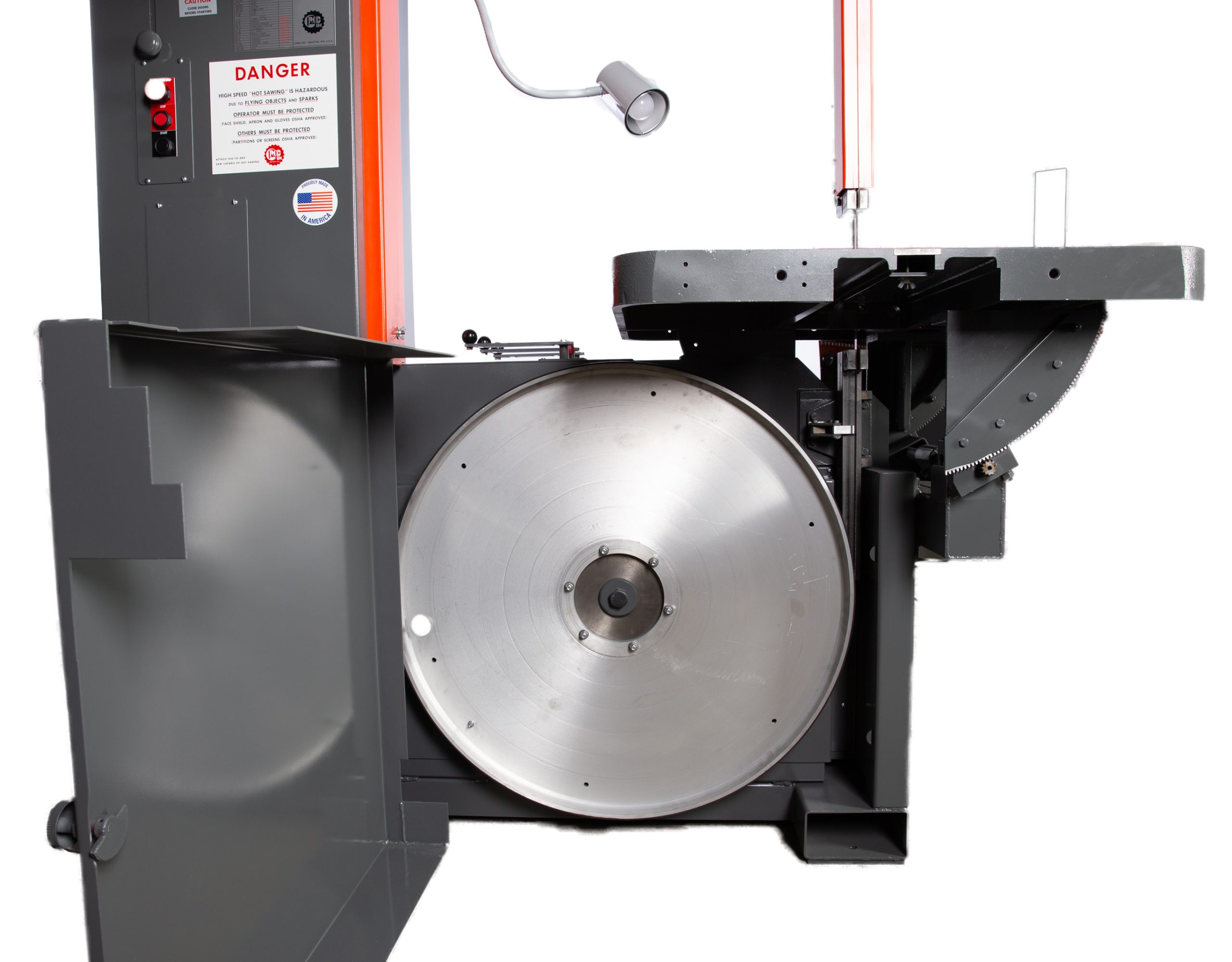

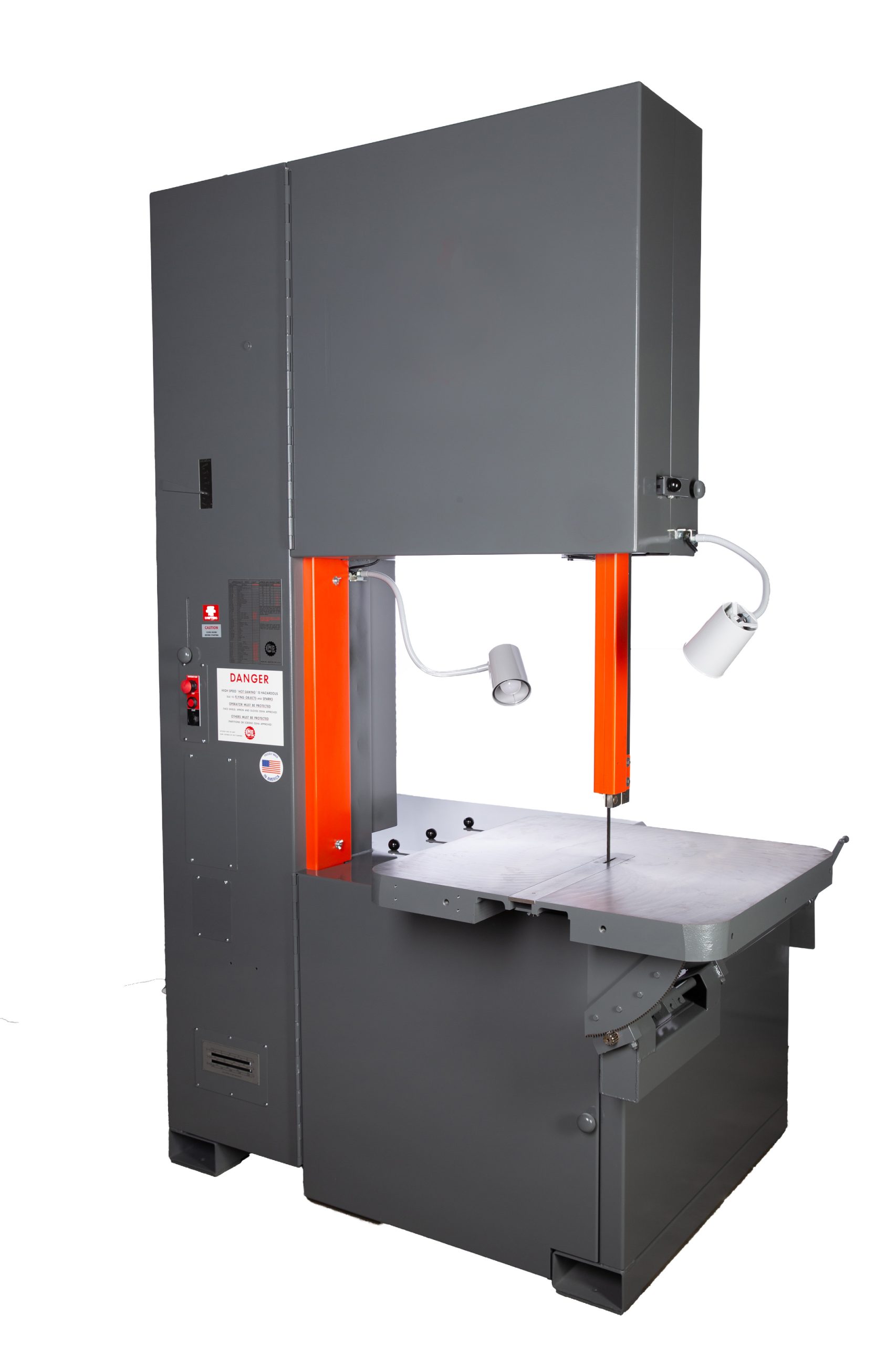

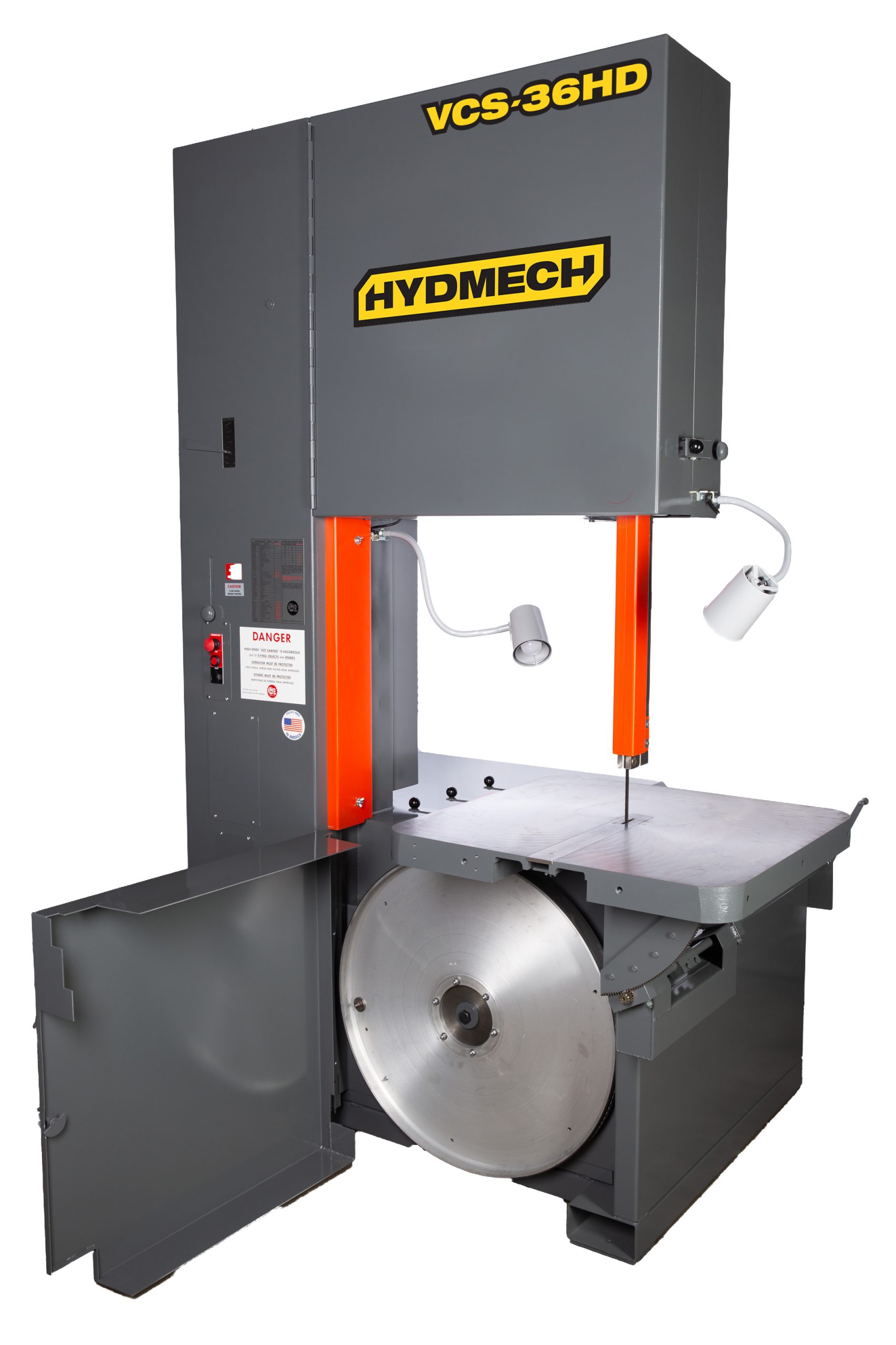

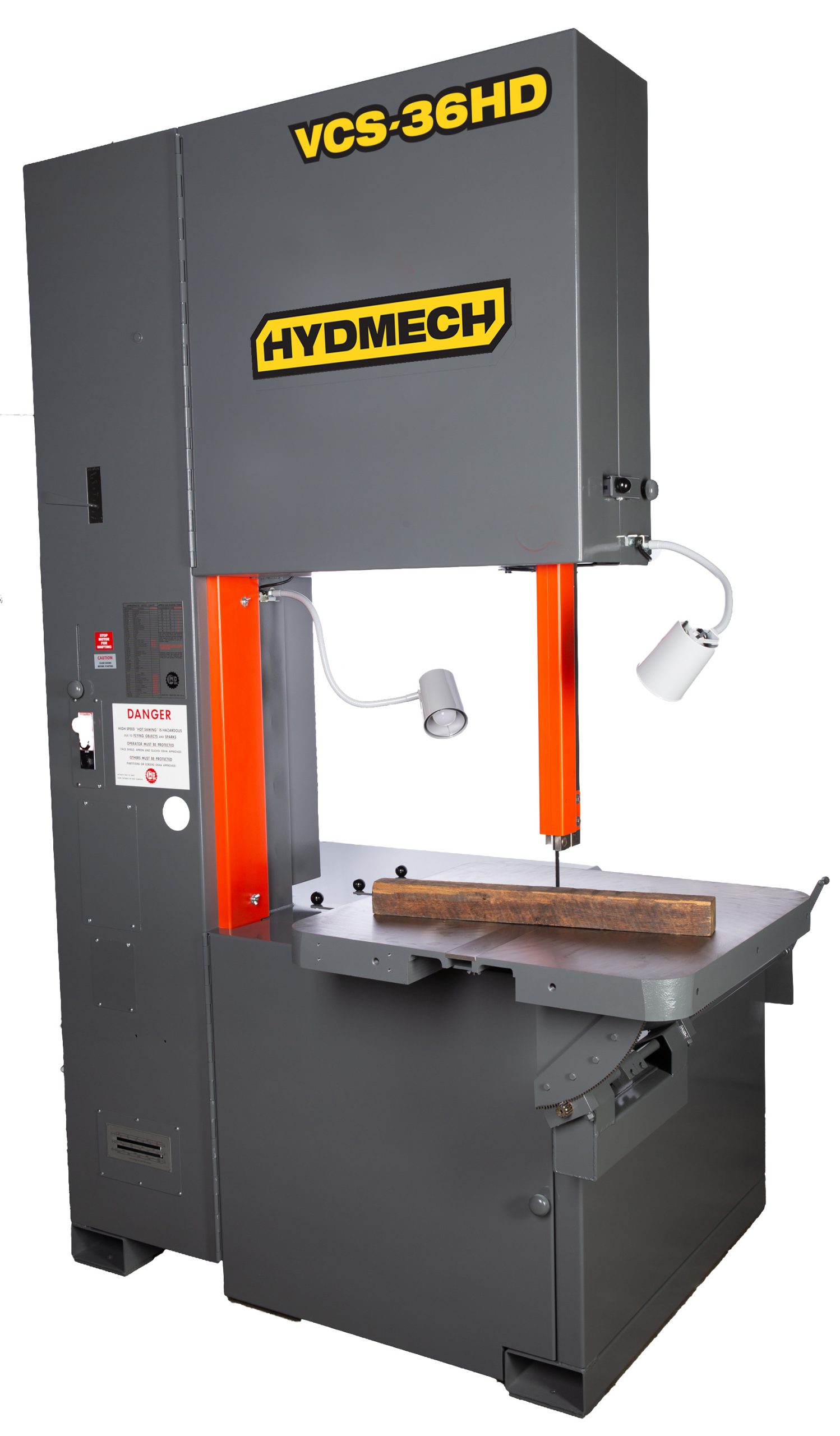

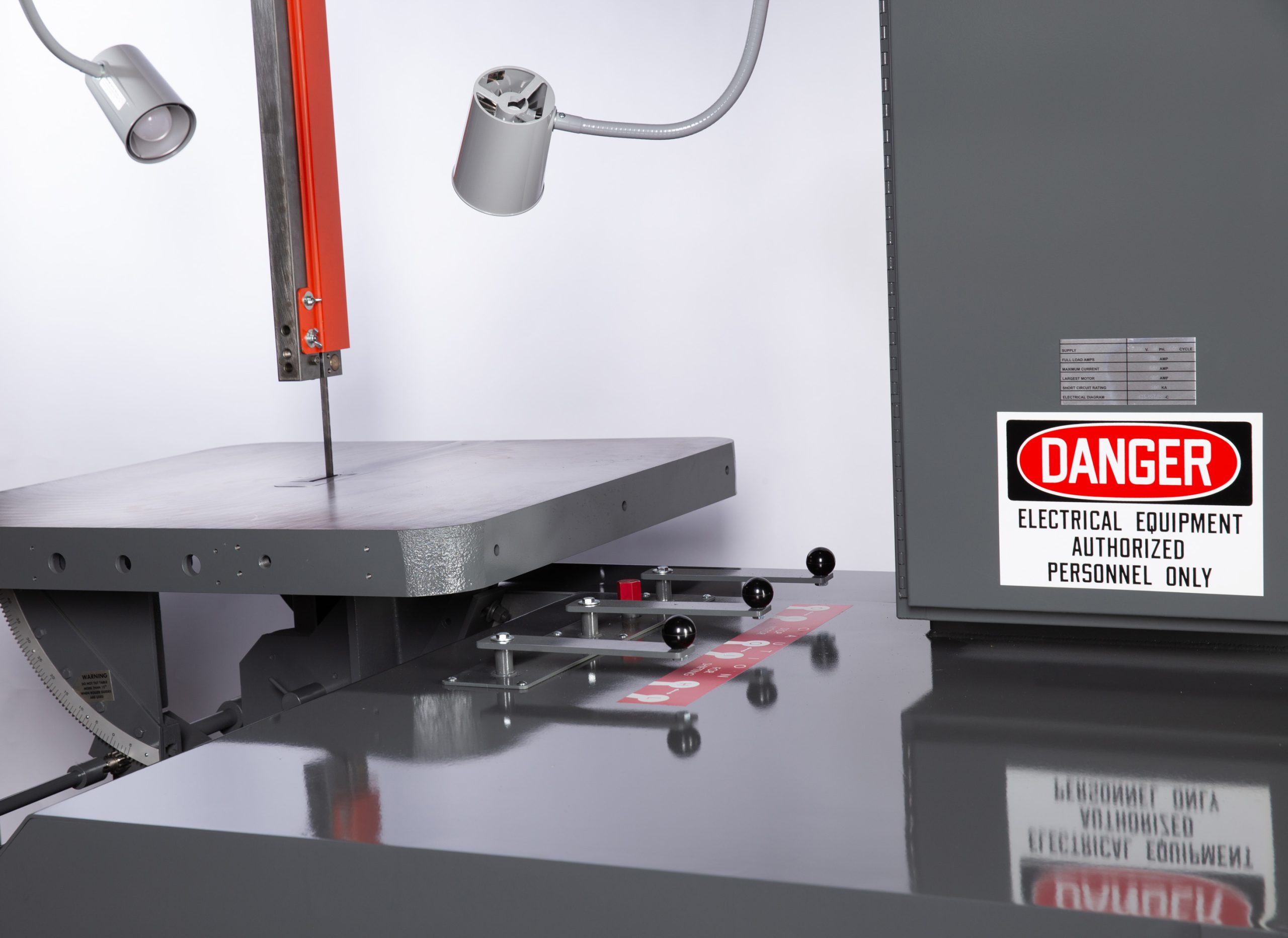

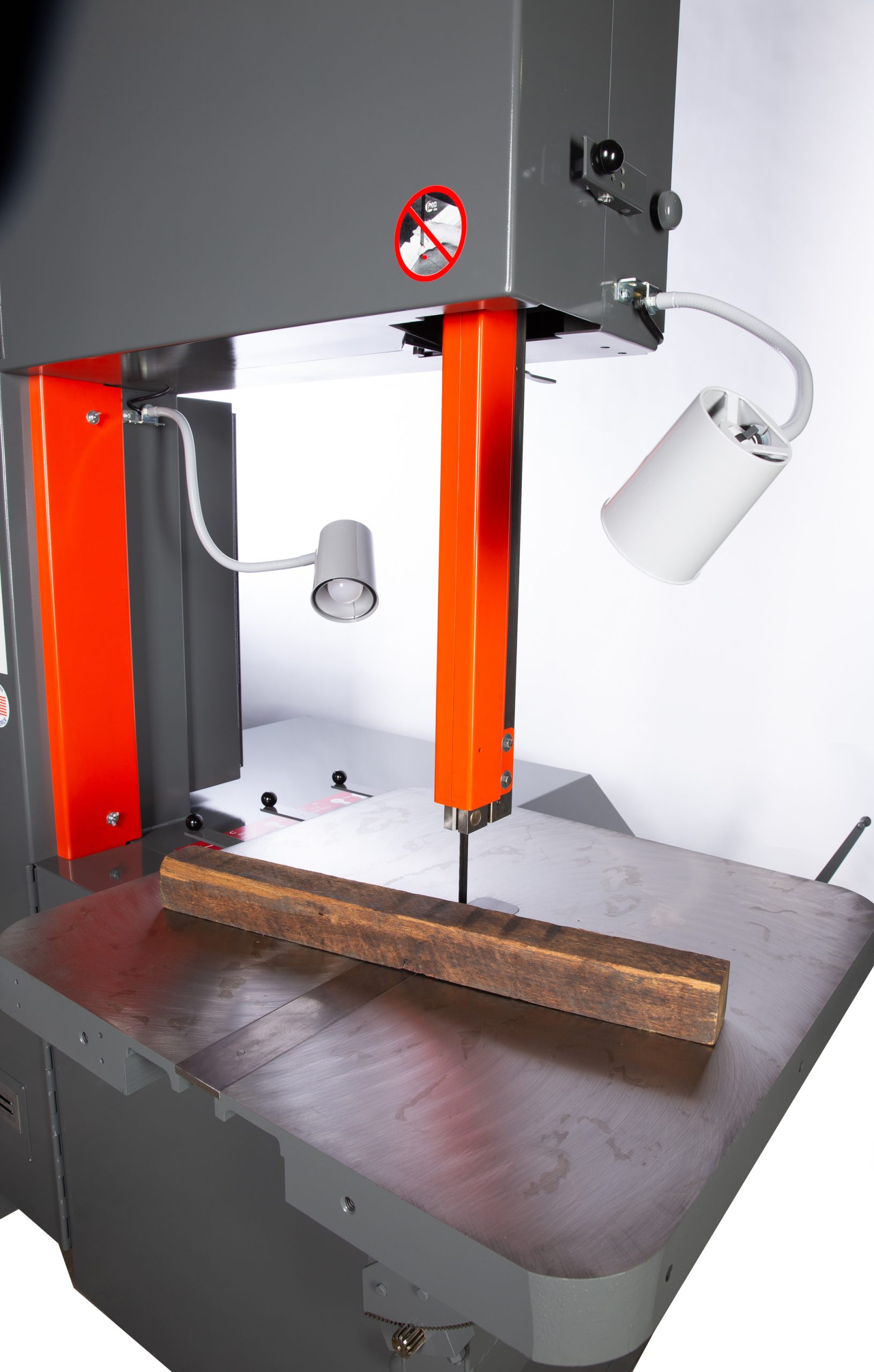

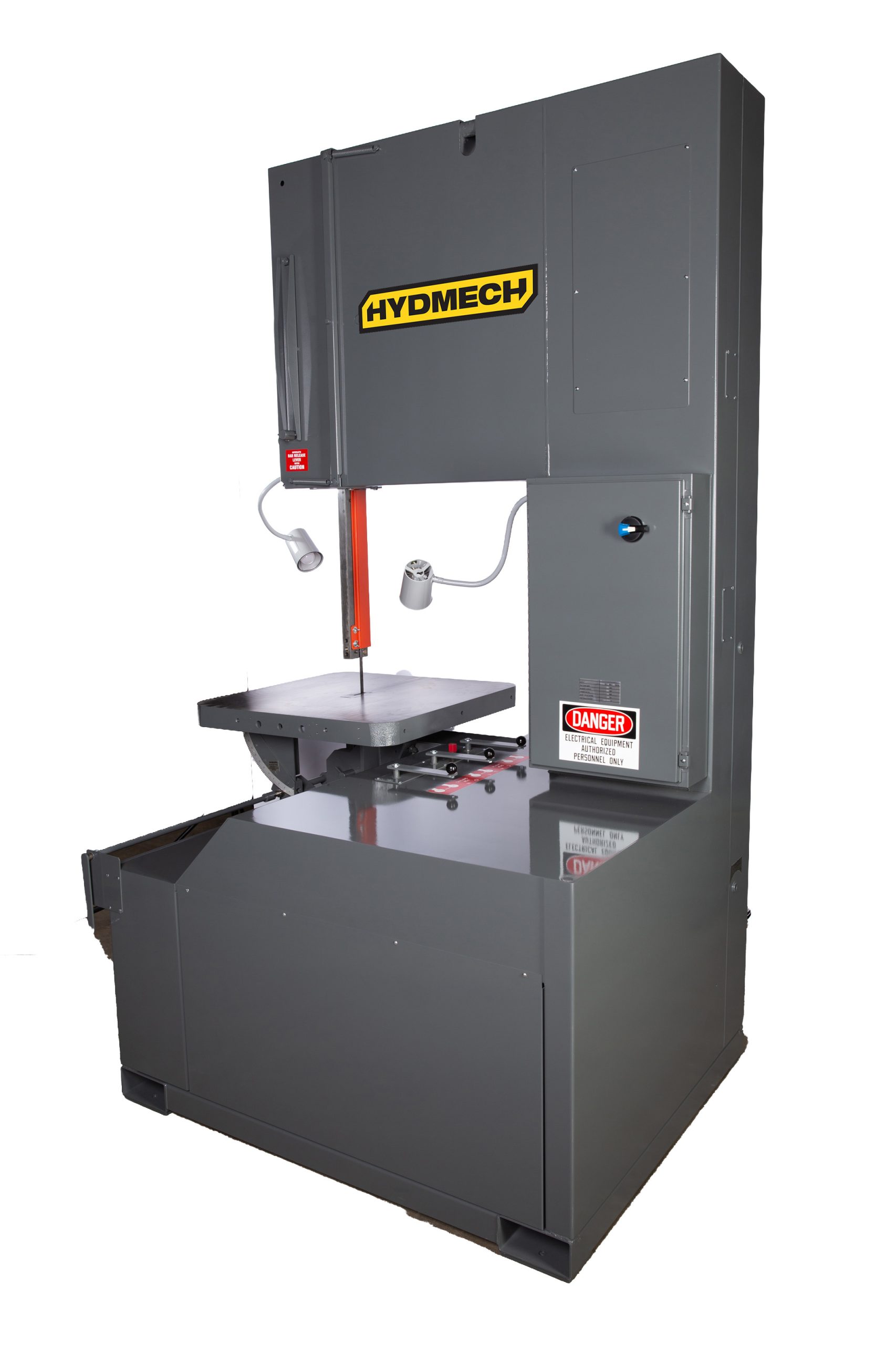

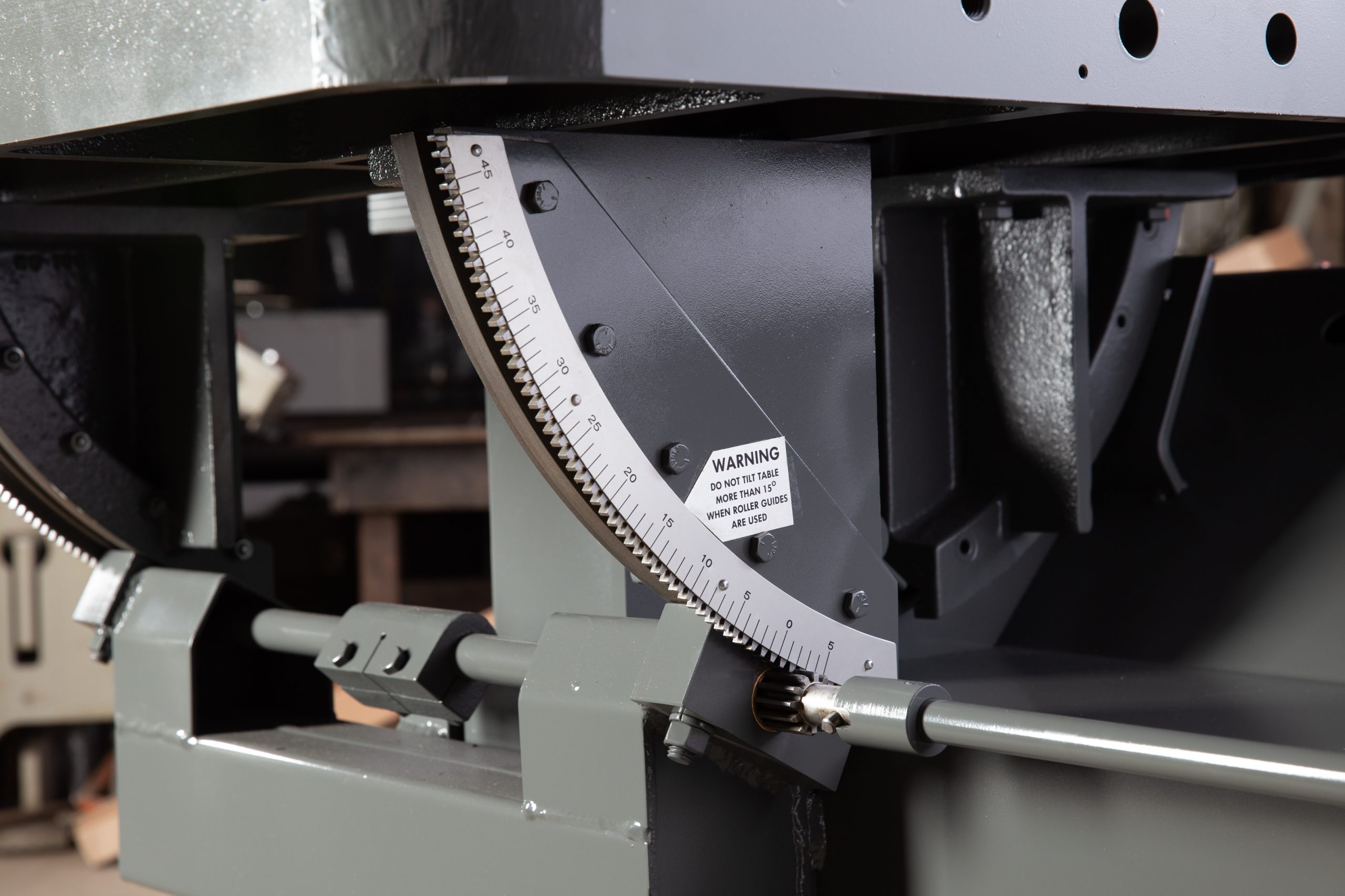

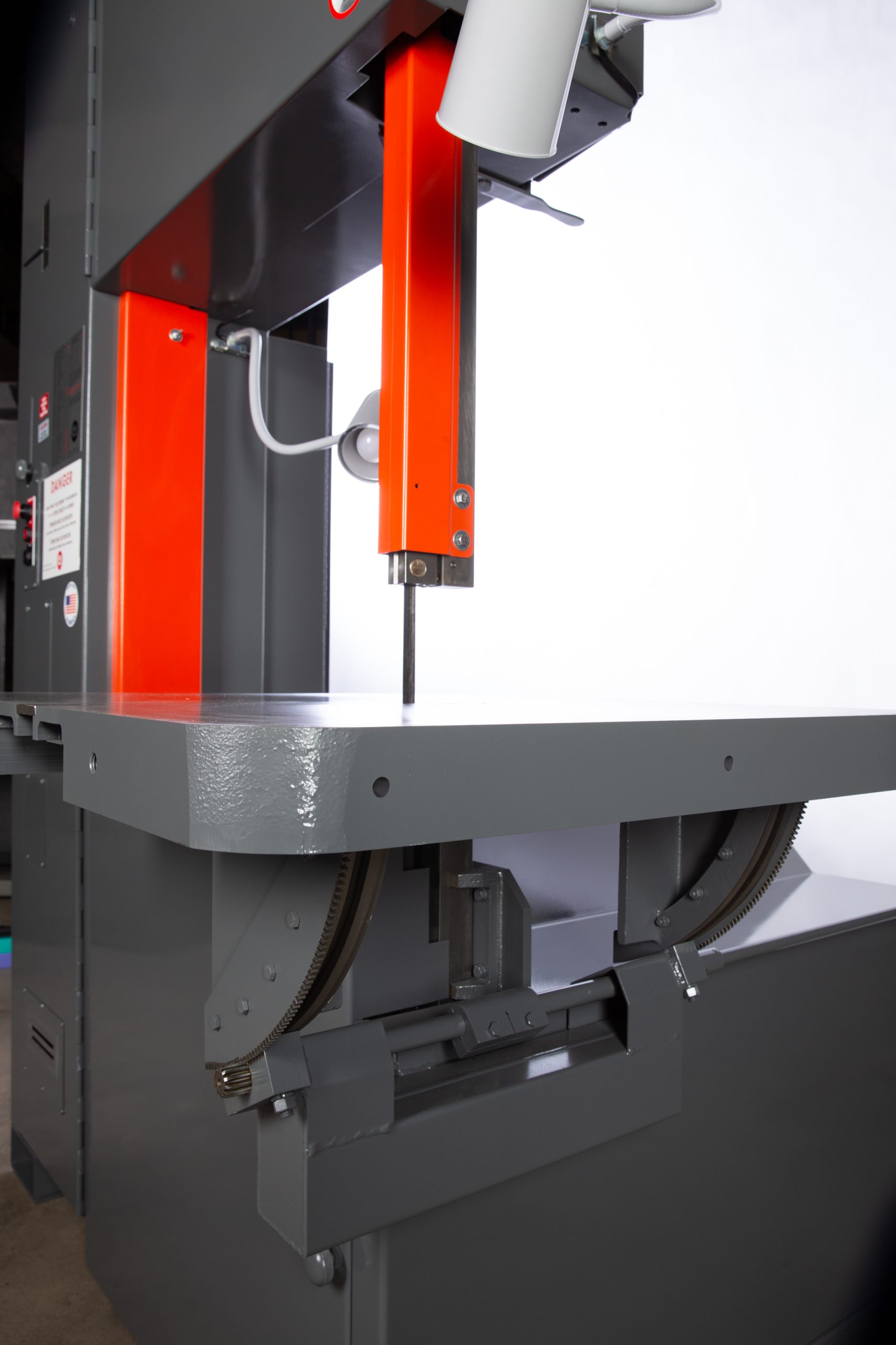

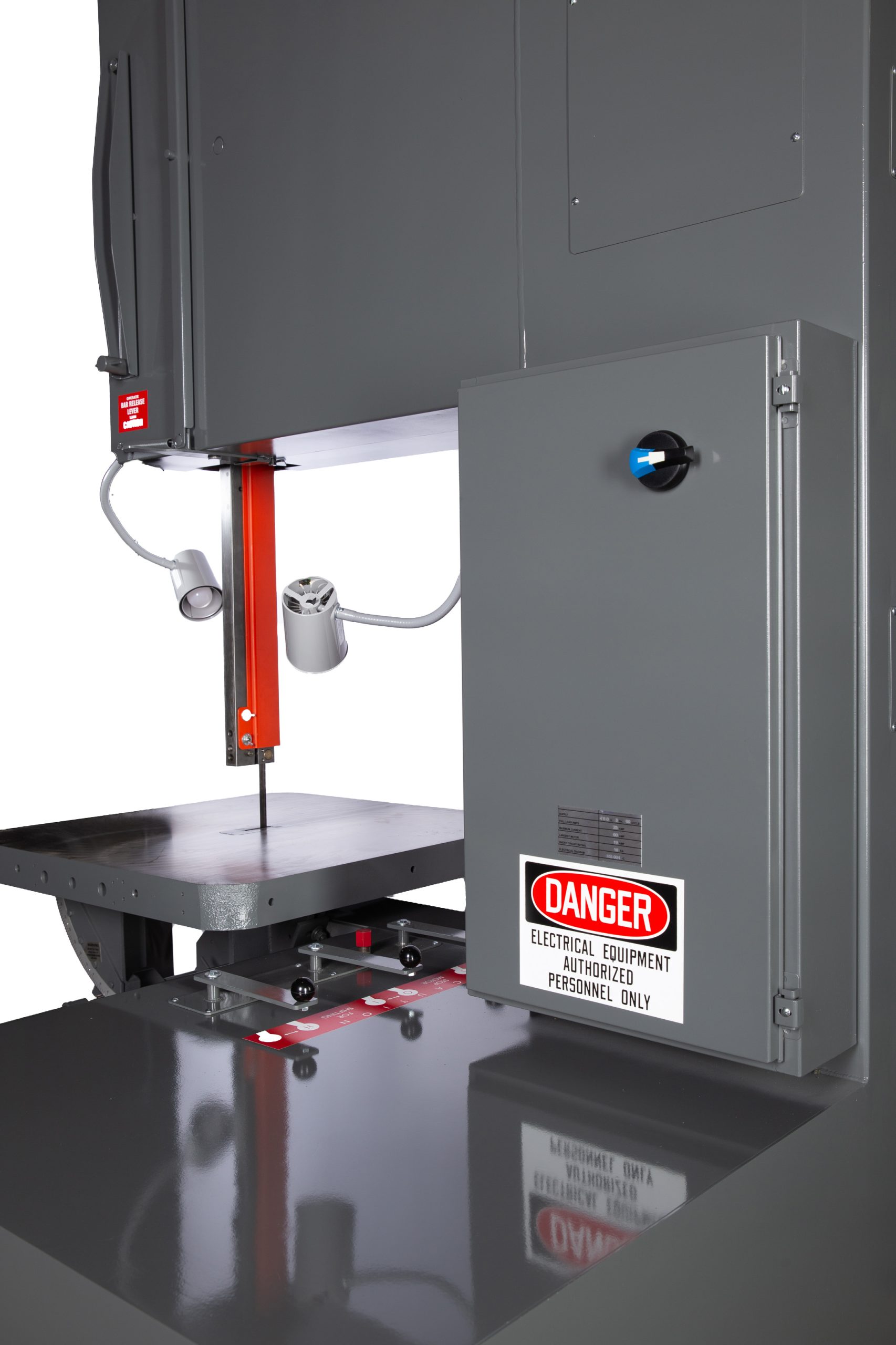

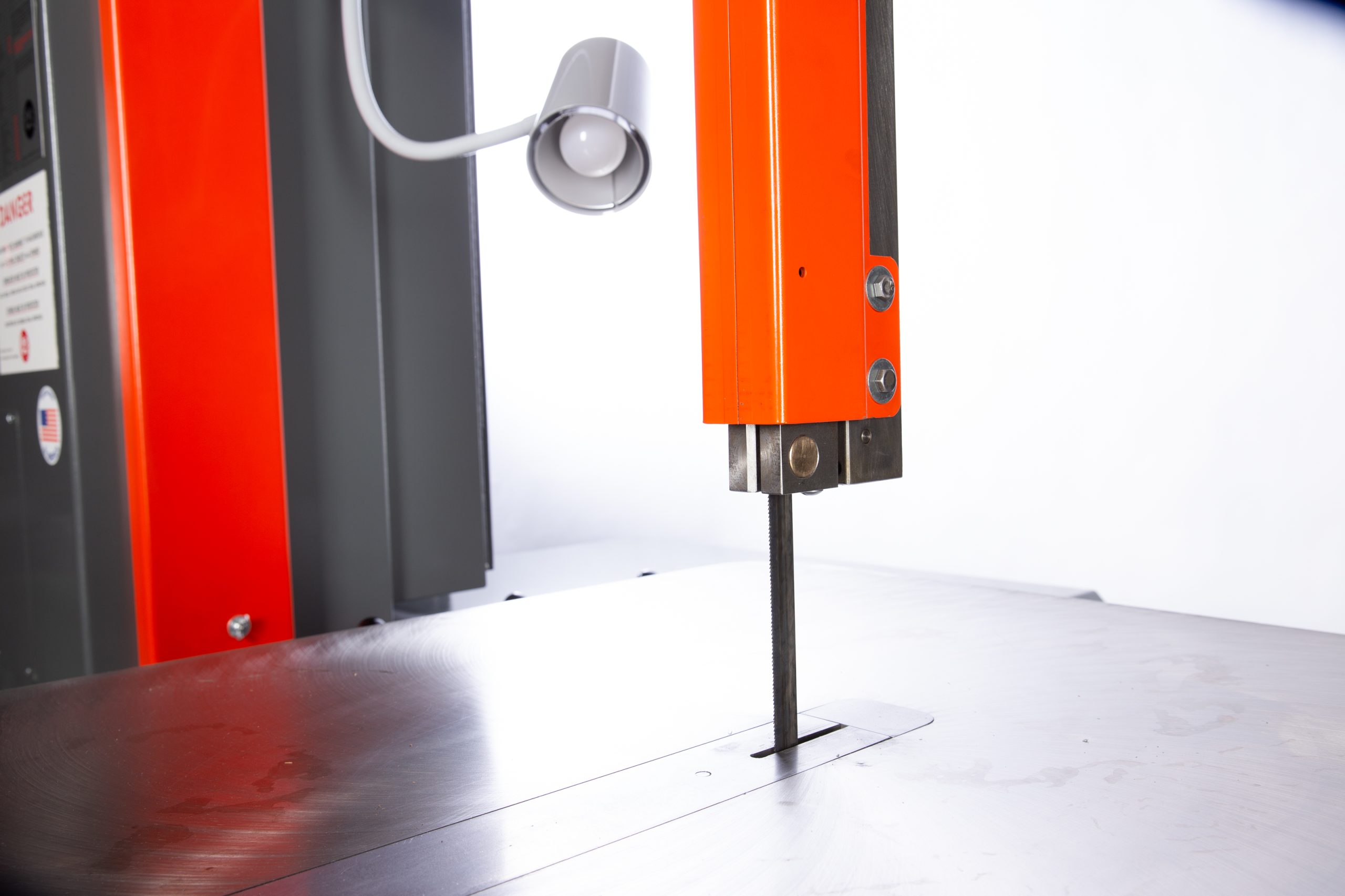

MACHINE IMAGES
