V-25 VERTICAL BAND SAW

VW-25 VERTICAL BAND SAW

V-25

Vertical band saw with the ability to miter from 60° left to 60° right.

Its standard 6° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

A heavy duty vertical saw, the V-25 efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

Capacity Rectangular (h x w) Round
90° 30″ x 25″ 25″
45° 21″ x 25″ 21″
60° Right 14 1/2″ x 25″ 14 1/2″
60° Left 13 1/2″ x 25″ 13 1/2″
Blade Size 1 1/2” x 21’ 0.5”
Blade Drive 10 HP VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed 75-350 SFM
Machine Weight 10,000 lbs.
Table Height 44”
Dimensions (w x l x h) 96” x 160” x 123”
Capacity Rectangular (h x w) Round
90° 762 mm x 635 mm 635 mm
45° 533 mm x 635 mm 533 mm
60° Left 368 mm x 635 mm 368 mm
60° Right 342 mm x 635 mm 342 mm
Blade Size 41 mm x 6413 mm
Blade Drive 7.5 kW VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed 22-106 m/min
Machine Weight 4,545 kg
Table Height 1,117 mm
Dimensions (w x l x h) 2438  x 4064 x 3124 mm

STANDARD FEATURES

  • 6° canted head allows for efficient cutting and improved blade life

  • Control provides hydraulic powered mitering from 60° left to 60° right

  • Digital angle display

  • Two full stroking hydraulic vises

  • Powered movable guide arm

  • 10 HP VFD. True direct blade drive – no belts/pulleys

  • Cast iron band wheels

  • Replaceable blade brush

  • Robust steel base

  • Easy access electrical panel and hydraulics

  • Blade breakage switch

  • Hydraulic band tensioning with digital readout

  • Replaceable carbide guide inserts

  • 3 HP hydraulic pump provides system pressure

  • Safety door interlocks

  • Flood coolant with wash down hose

  • Laser light

  • Work light

  • Variable vise pressure

two full stroking hydraulic vises

Two Full Stroking Hydraulic Vises

Securing the material with hydraulic pressure results in better blade life, increased operator safety and a decreased risk of the material moving during the cut.

10 hp true direct blade drive

10 HP True Direct Drive

The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life.

variable vise pressure

Variable Vise Pressure

Allows for adjustment of the clamping pressure of the vises. Ideal for cutting thin wall tubing and other light material applications in which a high vise pressure may deform the material.

S-20 Horizontal Pivot Band Saw Angle Measurement

Powered Moveable Guide Arm

Allows for quick adjustment of the guide arm ensuring rigidity of the blade during the cut, maximizing blade life and performance.

OPTIONAL FEATURES

  • Chip bucket with pump

  • Hydraulic overhead bundling

  • Mist lubrication

  • Pop-up feed roller

  • Tall square vise inserts

  • Hydraulic chip conveyor

  • Power transformer

  • Hydraulically positioned datum line vertical rollers

  • Bridge/interface bracket

  • Powered bridge/interface bracket

  • Idler conveyors

  • Powered conveyors

Brochure Coming Soon
Download Layout Drawing

PHOTO GALLERY

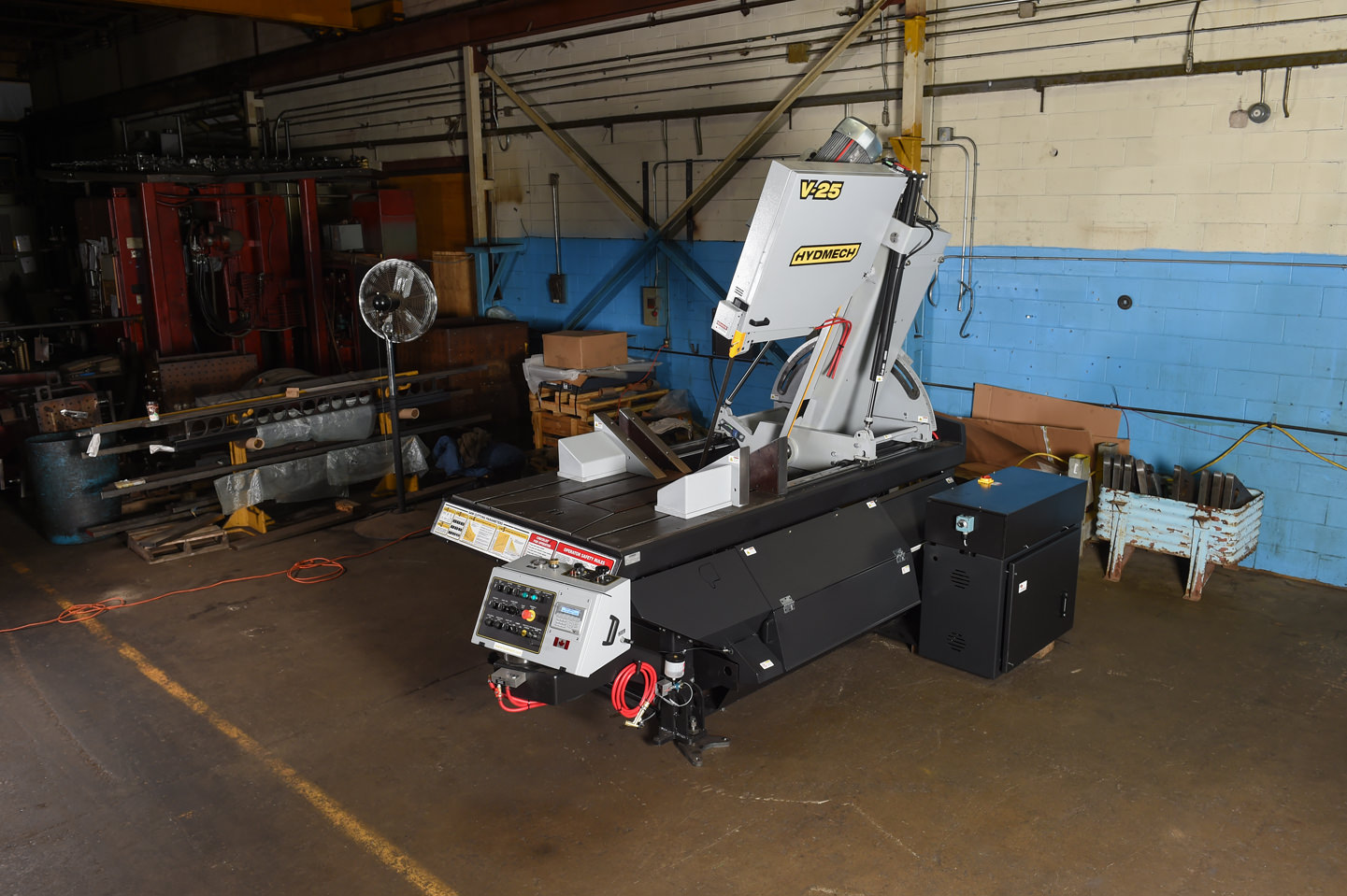

V-25 6 degree canted head
V-25 blade drive
V-25 control panel

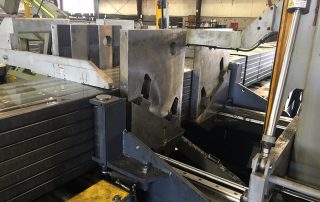

V-25 custom application
V-25 custom application
V-25 easy access hydraulics
V-25 head moves on linear rails
V-25 back
V-25 protractor with angle markers
V-25 replaceable blade brush
V-25 tall vise inserts
V-25 Wash down hose and optional mist lubrication
V-25 two full stroking hydraulic vises
V-25 machine shot
V-25
V-25
V-25
V-25 machine shot
V-25
V-25 back
V-25 front
