V-25APC VERTICAL BAND SAW

Automatic vertical band saw with the ability to miter from 60° left to 60° right.

A heavy duty vertical saw, the V-25APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications.

Featuring a large 30″H x 25″W capacity, 10 HP motor, and 1 1/2″ blade, the V-25APC is a reliable choice for all your automated vertical metal cutting applications.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	30″ x 25″	25″
45°	21″ x 25″	21″
60° Right	14 1/2″ x 25″	14 1/2″
60° Left	13 1/2″ x 25″	13 1/2″
Blade Size	1 1/2” x 21’ 0.5”
Blade Drive	10 HP VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	75-350 SFM
Automatic Multi-Indexing	60″ (120″ optional)
Machine Weight	15,000 lbs.
Table Height	44”
Dimensions (w x l x h)	158” x 254” x 123”

METRIC

Capacity	Rectangular (h x w)	Round
90°	762 mm x 635 mm	635 mm
45°	533 mm x 635 mm	533 mm
60° Left	368 mm x 635 mm	368 mm
60° Right	342 mm x 635 mm	342 mm
Blade Size	38 mm x 6413.5 mm
Blade Drive	7.5 kW VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	22-106 m/min
Automatic Multi-Indexing	1500 mm (3000 mm optional)
Coolant Tank Capacity	144 L
Machine Weight	6,818 kg
Table Height	1117 mm
Dimensions (w x l x h)	4013 x 6451 x 3124 mm

STANDARD FEATURES

6° canted head allows for efficient cutting and improved blade life
60” bar feed, left side
Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.
Two full stroking hydraulic vises
Hydraulically powered, programmable guide arm attached
10 HP VFD. True direct blade drive
Blade chamber separates material from cut part
Hydraulic chip conveyor efficiently removes chips from saw base
Replaceable blade brush
Robust steel base
Out of stock switch
Blade breakage switch
Easy access electrical and hydraulics
Pop-up feed roller – one opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure

Automatic, Hydraulic Powered Mitering

Mitering from 60 degrees left to 60 degrees right. The control panel features a digital angle display. Head tilt is controlled hydraulically.

6 Degree Fixed Canted Head

The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life.

5’ Bar Feed

From the left hand side (right side is optional) the 5’ bar feed provides support for the heavy material being fed into the saw. A 10’ bar feed is optional, and can provide faster cycle times and accuracy on long automatic indexes.

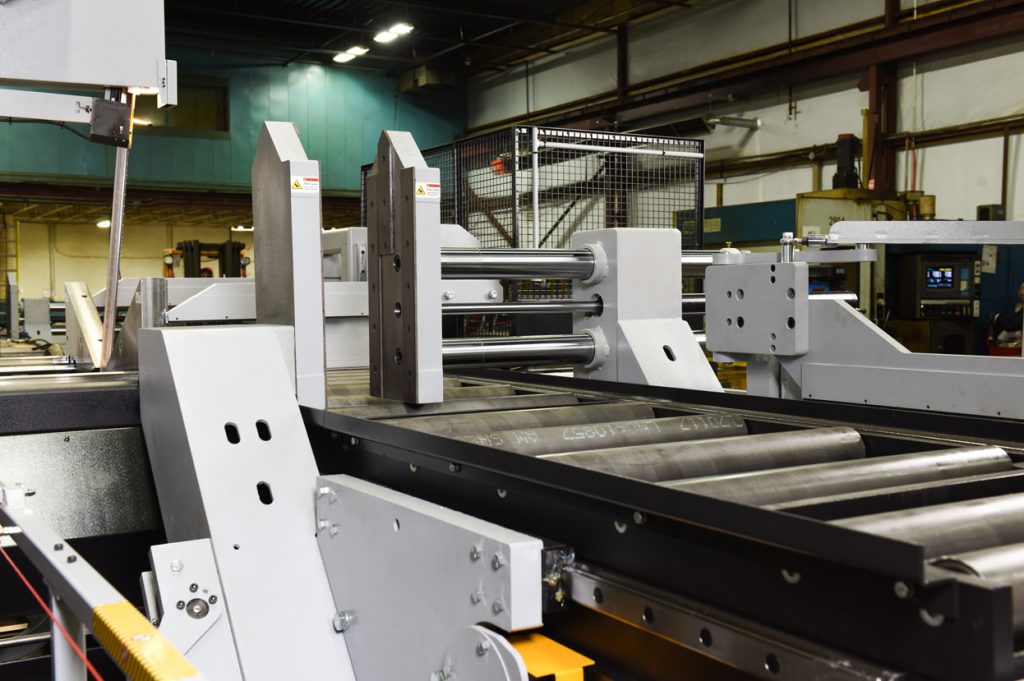

Automatic Multi-indexing

Up to 60” or 120” optional in a single stroke. The shuttle design features a retracting datum vise and lifting shuttle design that will lift material up off table and away from the datum reducing the chance of snagging material banding during automatic operation.
