VW-18-2 VERTICAL BAND SAW
Introducing the upgraded VW-18-2, an evolution from the VW-18 machine with notable enhancements:
Repositioned Datum: Following the successful design of the V18, we’ve relocated the datum to the back for improved efficiency.
Enhanced Head Rigidity: We’ve reinforced the head to ensure increased rigidity, providing enhanced stability during cutting operations for superior performance.
Upgraded Vise Rigidity: Our commitment to excellence extends to the vises, where we’ve implemented improvements to boost rigidity. This enhancement contributes to a more robust and reliable overall system.

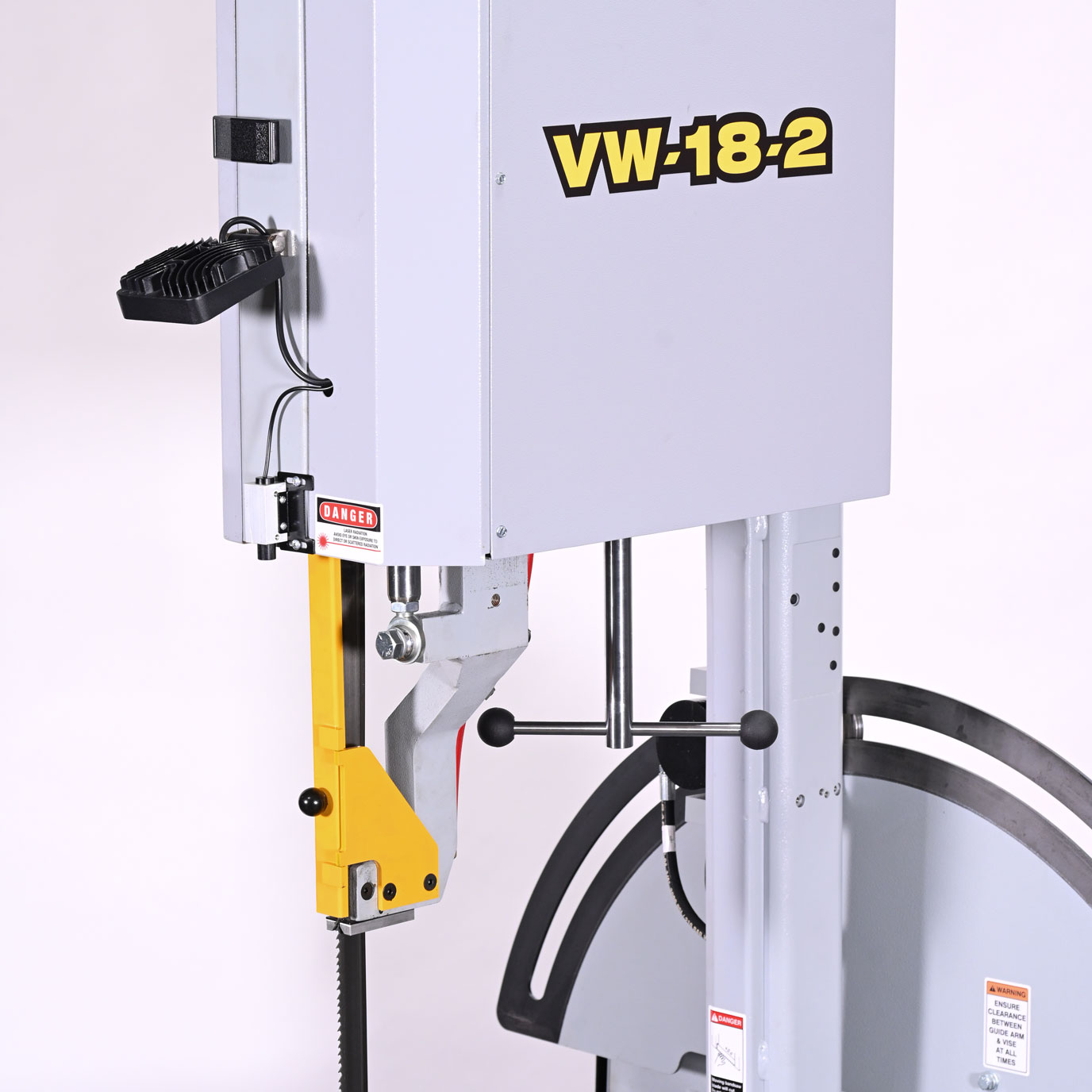

Powered Hydraulic Guide Arm: The VW-18-2 now features a powered hydraulic guide arm, adding a new dimension to precision and control during cutting processes. This innovative addition elevates the machine’s capabilities, offering a seamless and efficient operation.
The VW-18-2 stands out as a semi-automatic, vertical band saw, setting new standards with its mitering capability ranging from 60° left to 60° right. Boasting a generous 22″H x 18″W cutting capacity, a robust 5 HP motor, and a 1 1/4″ blade, this machine is your trusted companion for a wide range of light to medium-duty, vertical metal cutting applications.
Featuring a semi-automatic control that can be conveniently positioned on either side of the saw, the VW-18-2 combines precision with ease of operation for enhanced performance in your metalworking tasks.
MACHINE SPECIFICATIONS
Capacity | Rectangular (h x w) | Round |
90° | 22″ x 18″ 20 3/4″ x 18″ cant. head |
17 1/2″ |
45° | 15″ x 18″ 14″ x 18″ cant. head |
12 1/2″ |
60° Right | 10 1/4″ x 18″ 9 1/2″ x 18″ cant. head |
10 1/4″ 9 1/2″ cant. head |
Blade Size | 1 1/4” x 16’ 3” | |
Blade Drive | 5 HP VFD | |
Machine Voltage | 480 v (all other voltages require optional transformer) | |
Blade Speed | 65-385 SFM | |
Coolant Tank Capacity | 12 Gal. | |
Machine Weight | 2,700 lbs. | |
Table Height | 36 1/2” | |
Dimensions (w x l x h) | 65” x 123” x 97” |
Capacity | Rectangular (h x w) | Round |
90° | 558 mm x 457 mm 527 mm x 457 mm cant. head |
444 mm |
45° | 381 mm x 457 mm 355 mm x 457 mm cant. head |
317 mm |
60° Left | 260 mm x 457 mm 241 mm x 457 mm cant. head |
260 mm 241 mm cant. head |
Blade Size | 34 mm x 4953 mm | |
Blade Drive | 3.7 kW VFD | |
Machine Voltage | 480 v (all other voltages require optional transformer) | |
Blade Speed | 19-117 m/min | |
Coolant Tank Capacity | 45 ltr | |
Machine Weight | 1,227 kg | |
Table Height | 927 mm | |
Dimensions (w x l x h) | 1651 x 3124 x 2463 mm |
STANDARD FEATURES
• Adjustable 3° canted head
• Double articulating, semi-automatic control
• Two full stroking hydraulic vises
• Manual precise head positioning from 60° left to 60° right
• Digital angle display w/ protractor
• Powered hydraulic guide arm
• On-demand hydraulics save energy
• 5 HP VFD. True direct blade drive – no belts/pulleys
• Hydraulic positive down feed
• Cast iron band wheels
• Replaceable blade brush
• Robust steel base
• Easy access electrical panel and hydraulics
• Blade breakage switch
• Mechanical band tensioning with digital readout
• Replaceable carbide guide inserts
• 0.5 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure
OPTIONAL FEATURES
• Power tilt with programmable go to angle
• Hydraulic overhead bundling*
• Mist lubrication
• Chip bucket
• Tall square vise inserts
• Power transformer
• Idler conveyors
