CSNC-150 CARBIDE CIRCULAR SAW
High Speed, Automatic Circular Sawing Machine
Cut with the highest level of precision with the lowest possible cycle time with the CSNC-150 model. Designed for use with carbide tipped blades, one carbide circular saw is so fast that just one machine can produce the same output as five band saws.
Featuring a 1.18” – 6” round capacity at 90°, 40 HP motor, and a 460mm blade, the CSNC-150 is a versatile high-speed cutting machine.
MACHINE SPECIFICATIONS
| Cutting Capacity Round 90° | 1.18″- 6″ |
| Cutting Capacity Square 90° | 1.18″- 5.11″ |
| Blade Drive | 40 HP VFD |
| Blade Speed | 60-200 MPM |
| Blade Size | Carbide/ Cermet tipped: 460 mm x 2.7 mm kerf |
| Bar Stock Length | 10′-20′ |
| Trim Cut | Zero or programmable from 0.8″ or longer |
| Cut off Length | Min 0.8″ up to 39″ |
| Single Stroke | 39″ |
| Remnant Length | 3.94” + cut length + cutter thickness |
| Hydraulic Motor | 3 HP VFD |
| Bar Loading Magazine | Inclined storage width of 35″ for rounds |
| Machine Capacity | 16,530 lbs. |
| Machine Weight | 11,000 lbs. |
| Dimensions (w x l x h) | 145” x 102” x 82” |
| Cutting Capacity Round 90° | 30-150 mm |
| Cutting Capacity Square 90° | 30-130 mm |
| Blade Drive | 29.4 kW |
| Blade Speed | 60-200 MPM |
| Blade Size | Carbide/ Cermet tipped: 460 mm x 2.7 mm kerf |
| Bar Stock Length | 3-6 m |
| Trim Cut | Zero or programmable from 20 mm or longer |
| Cut off Length | Min 20 mm up to 1000 mm |
| Single Stroke | 1000 mm |
| Remnant Length | 100 mm + cut length + cutter thickness |
| Hydraulic Motor | 2.2 kW |
| Bar Loading Magazine | Inclined storage width of 885 mm for rounds |
| Machine Capacity | 7500 kg |
| Machine Weight | 5000 kg |
| Dimensions (w x l x h) | 3700 mm x 2600 mm x 2100 mm |
STANDARD FEATURES
-
Mitsubishi PLC Controller allows for 200 programs to be saved.
-
Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade
-
Material library with US steel grades menu with ability to add custom material grades
- Bar feed features a roller bed with a material gripper feed carriage indexing via ball screw and AC servo drive. Shuttle speed: 200 mm per second.
-
Heavy duty saw head is driven by ball screw and AC servo drive with a patent pending counterbalance feature
-
Mist exhaust system
- Patent pending blade cooling system
- Air moisture separator
-
Bar retracts automatically for contact free return stroke of the saw blade
-
Universal Bar Loader for round and square material with hydraulic incline pitch adjustment and safety guard sheets provides inclined storage width of 35” (885 mm) for rounds. Capacity: 5700 kg.
-
PLC controlled automatic oil lubrication of all moving parts
-
Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
-
Variable vise pressure control with dial gauge – two stations
- Cooling nozzle
-
Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
-
Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
-
Status light indicating tower
-
Chain chip conveyor
-
Air cooled electric magnetic head break removes all backlash
-
Built in hydraulic tank and power pack
-
Tool steel hardened precision blade guides
-
Power transformer
-
Four blade starter package
• Blade specs: 460 mm x 2.7 kerf x 2.25 mm body x 50 mm bore
• Pin holes: 4/15/80 mm
• Bolt holes: 4/12/90 mm
OPTIONAL FEATURES
-
Bundle unscrambler
-
PLC program modifications
-
Maintenance kit
-
Long cut bar out feed motorized conveyor table with guarding in the following lengths – 1000 mm, 2000 mm, and 3000 mm

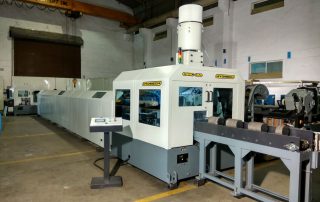

PHOTO GALLERY
