P350 CIRCULAR COLD SAW
Manual Pivot Arm Cold Saw
The P350 is a manual pivot arm cold saw ideal for use in small job shops. The P350 miters from 45° left to 45° right.
Featuring a 4 1/2″ round hollow capacity, 1.5/3 HP motor, and 14″ blade, the P350 is the ideal choice for quick, clean, accurate metal cutting.
MACHINE SPECIFICATIONS
| Round Hollow 90° | 4 1/2” |
| Square Hollow 90° | 4” |
| Rectangular Hollow (hxl) 90° | 5 1/8” x 3 1/8” |
| Blade Size | Max. 14″ Min. 12″ |
| Blade Drive | 3 HP VFD |
| Blade Speed | 30/60 rpm |
| Machine Weight | 575 lbs. |
| Dimensions (w x l x h) | 50” x 46” x 70” |
| Round Hollow 90° | 114 mm |
| Square Hollow 90° | 101 mm |
| Rectangular Hollow (hxl) 90° | 130 mm x 79 mm |
| Blade Size | Max. 355 mm Min. 305 mm |
| Blade Drive | 2.2 KW |
| Blade Speed | 1800/3600 rph |
| Machine Weight | 261 kg |
| Dimensions (w x l x h) | 1270 mm x 1168 mm x 1778 mm |
STANDARD FEATURES
-
Manually operated
-
Saw head movement by means of control handle with safety spring loaded trigger switch to start and stop blade
-
Robust sawing head miters 45° left and 45° right
-
Includes saw base
-
Two blade speed of 30 and 60 rpm
-
Movement of both head and vise to permit slotting or lengthwise cuts
-
Vise quick clamp and release lever
-
Adjustable manual vise with anti-burr clamp, clamps both sides of the cut
-
Material work stop rod for multiple cuts of the same length Flood coolant with electrical coolant pump
-
One blade included
OPTIONAL FEATURES
-

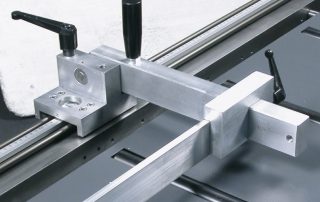

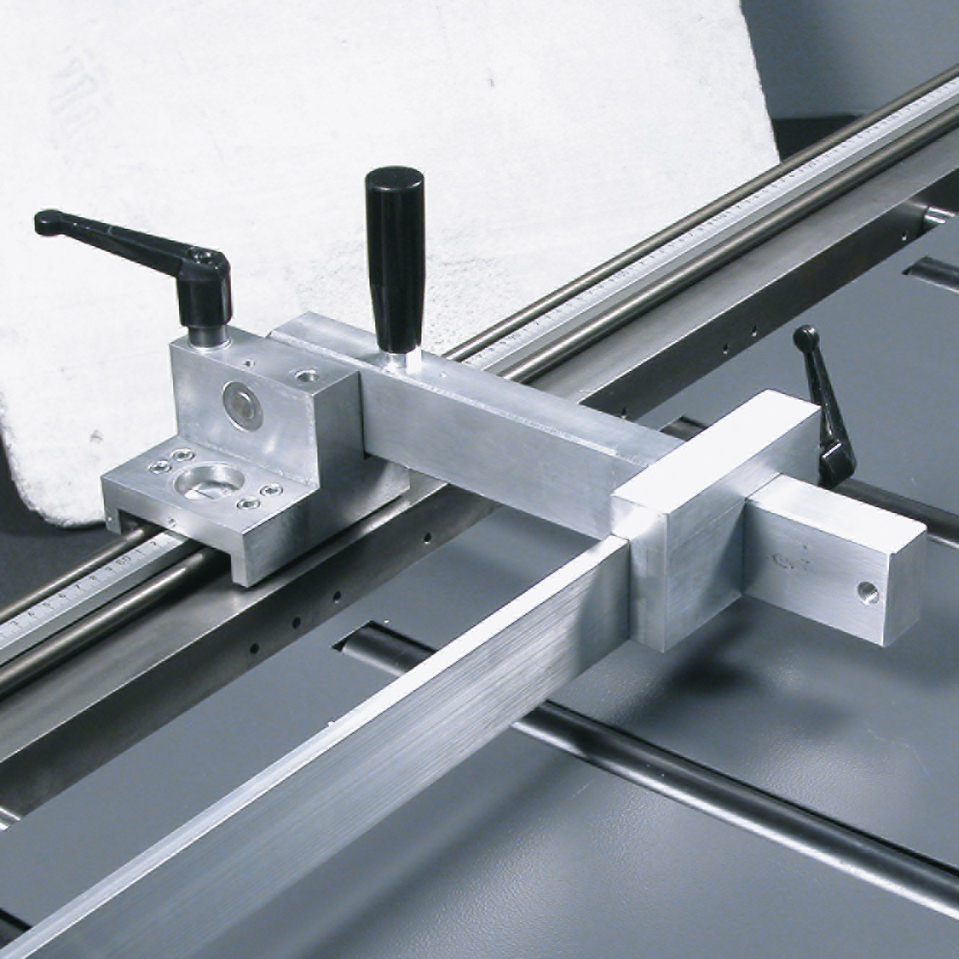

“Flip over” material stops with 60” ruler
-
R2 ruler extensions for out feed roller tables
-

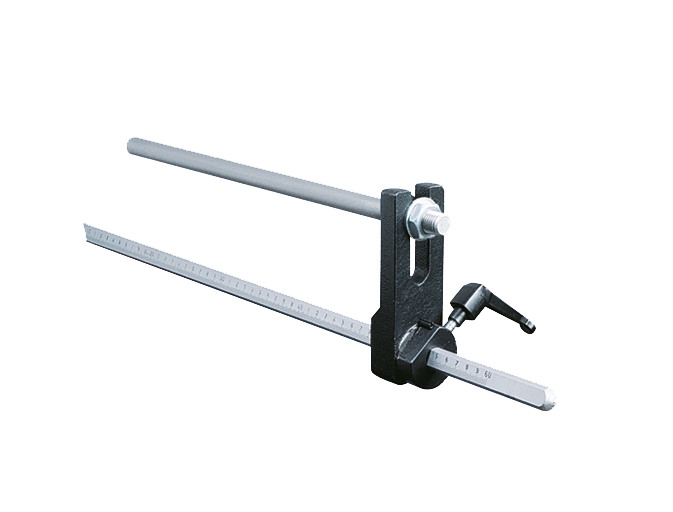

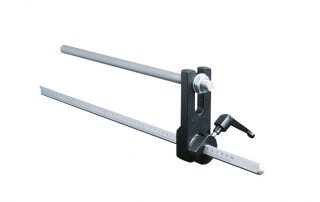

Material stop with ruler
-

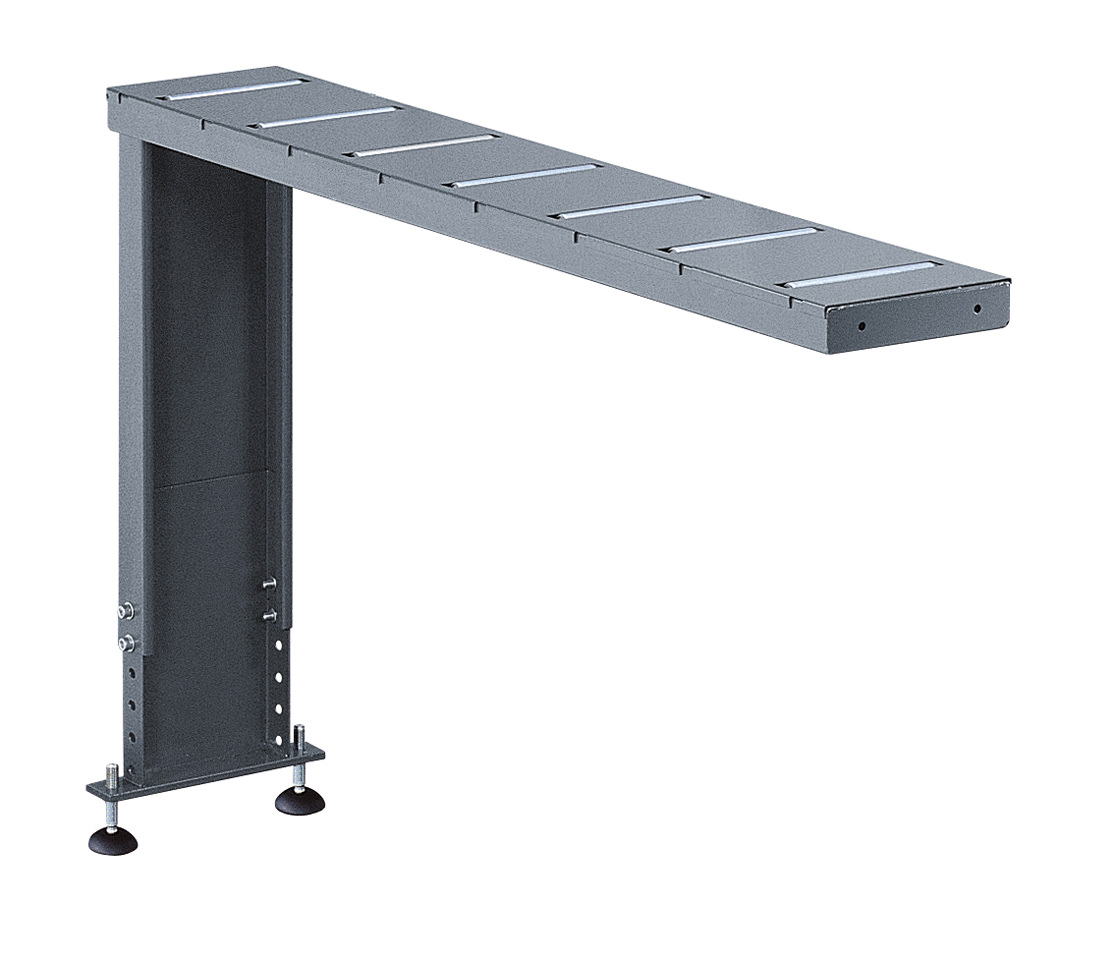

K40 5’ roller table
-
Roller table support stands (extra legs)
-
Roller table adapter – required if ordering roller table for out feed
-
HSS Oxide Coated Blade
PHOTO GALLERY
