C370-2SI CIRCULAR COLD SAW

C370-2SI machine shot

Semi-Automatic Vertical Column Cold Saw

The C370-2SI is a semi-automatic vertical column cold saw with the largest capacity in our cold saw line up. The C370-2SI miters from 60° left to 45° right.

Featuring a 4 3/4″ round hollow capacity, 7.5 HP motor, and 14 1/2″ blade, the C370-2SI is the ideal choice for quick, clean, accurate metal cutting.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

Round Hollow 90° 4 3/4”
Square Hollow 90° 4 1/3”
Rectangular Hollow (hxl) 90° 7” x 3 3/4”
Blade Size Max. 14.5″ Min. 12″
Blade Drive 7.5 HP VFD
Blade Speed 15-150 rpm
Machine Weight 1408 lbs.
Dimensions (w x l x h) 57” x 45” x 75”
Round Hollow 90° 121 mm
Square Hollow 90° 110 mm
Rectangular Hollow (hxl) 90° 178 mm x 95 mm
Blade Size Max. 368 mm Min. 305 mm
Blade Drive 5.5 KW
Blade Speed 900-9000 rph
Machine Weight 639 kg
Dimensions (w x l x h) 1448 mm x 1143 mm x 1905 mm

STANDARD FEATURES

  • Semi-automatic operation

  • Heavy duty gear box coupled directly to saw makeup the robust saw head with manual movement on adjustable dual precision linear rails

  • Robust sawing head miters 45° left and right, and 60° left

  • Infinitely variable blade speed from 15-150 rpm

  • Anti-burr clamp with double locking system

  • Vertical pneumatic vise

  • Pneumatic operating vise capable of sliding on dovetail to adjust with saw head mitered position

  • Enclosed steel base with chip drawer and coolant tank

  • Replaceable blade brush

  • Ergonomically positioned control panel includes main disconnect, programmable sawing stroke, saw head feed rate control, and LED display for machine diagnostics

  • Adjustable material stop with ruler

  • Flood coolant with electrical coolant pump

  • One blade included

OPTIONAL FEATURES

  • Foot pedal control with emergency stop

  • Second pneumatic horizontal operating vise

  • Mist lubrication system

  • K40 5’ roller table

  • “Flip over” material stops with 60” ruler

  • R2 ruler extensions for out feed roller tables

  • Roller table support stands (extra legs)

  • Roller table adapter – required if ordering roller table for out feed

  • HSS Oxide Coated Blade

Download Brochure
Download Layout Drawing

PHOTO GALLERY

C370-2SI machine shot

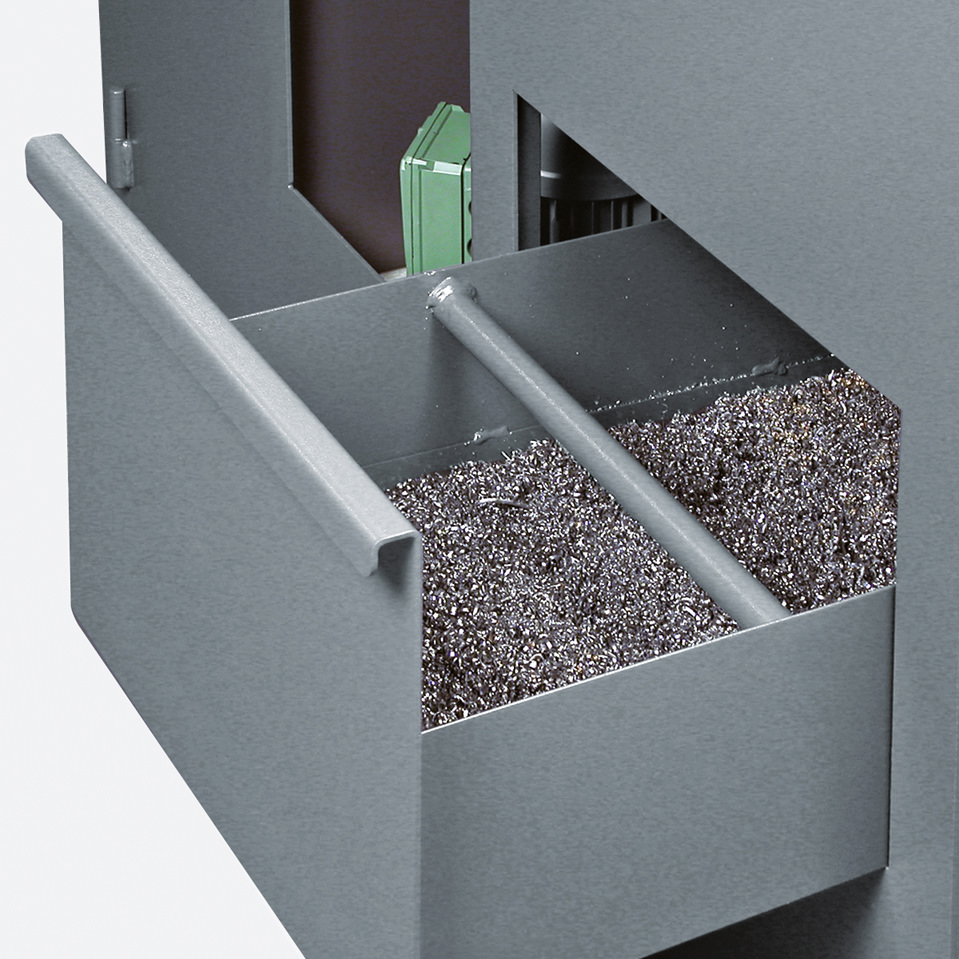

C370-2SI steel base with chip drawer
C370-2SI optional second pneumatic horizontal operating vise
C370-2SI vertical pneumatic vise

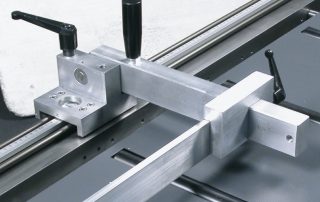

C370-2SI optional r2 flip over stop
C370-2SI sawing head movement on double linear rails
C370-2SI infinitely variable speed drive
C370-2SI optional foot pedal control with emergency stop
C370-2SI optional k40 roller table
C370-2SI optional mist lubrication system
C370-2SI electrical coolant pump for flood coolant
