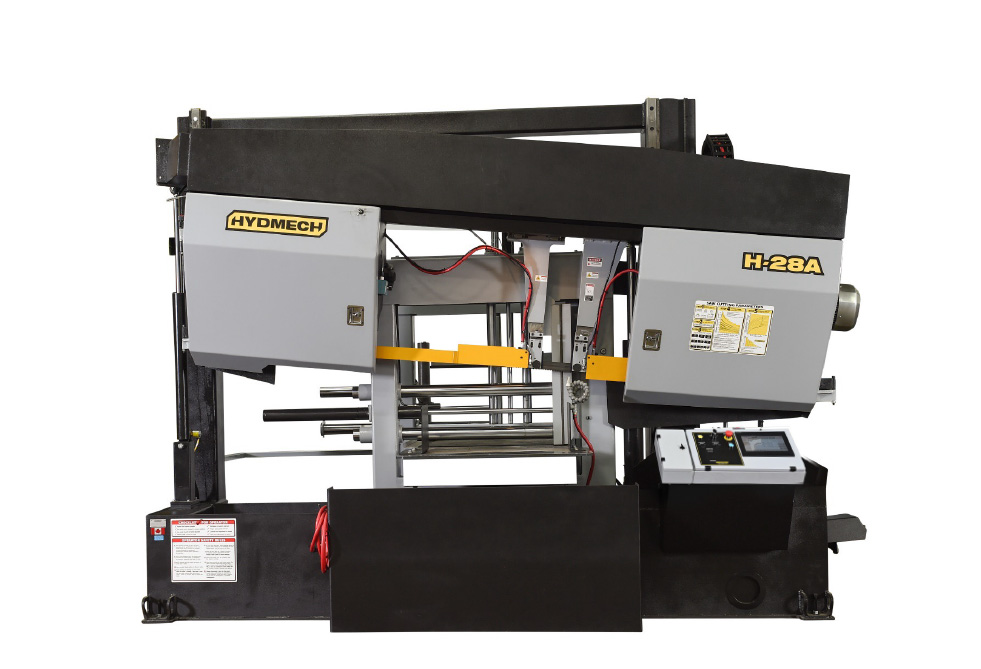

H-28A HORIZONTAL BAND SAW

The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement.

The H-28A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	28″ x 28″ Canted: 24″ x 28″	28″ Canted: 24″
Blade Size	2” x 25’
Blade Drive	10 HP VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	40-300 SFM
Automatic Multi-Indexing	0-32″
Machine Weight	18,000 lbs.
Table Height	31” Canted: 37″
Dimensions (w x l x h)	161” x 92” x 120”

METRIC

Capacity	Rectangular (h x w)	Round
90°	711 mm x 711 mm Canted: 609 mm x 711 mm	711 mm Canted: 609 mm
Blade Size	50.8 mm x 7620 mm
Blade Drive	7.5 kW VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	12-91 m/min
Automatic Multi-Indexing	0-813 mm
Machine Weight	8,181 kg
Table Height	787 mm Canted: 940 mm
Dimensions (w x l x h)	4089 x 2336 x 3048 mm

STANDARD FEATURES

One piece design – no alignment necessary
Split front vise allows for short remnant length. Can be replaced, by request with retractable datum vise at no charge.
Shuttle features automatic multi-indexing up to 32” in a single stroke with automatic kerf compensation.
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Hydraulic positive down feed
Blade chamber separates material from cut part
10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Cast iron band wheels
Automatic PLC control programmable up to 99 jobs with 5 in queue

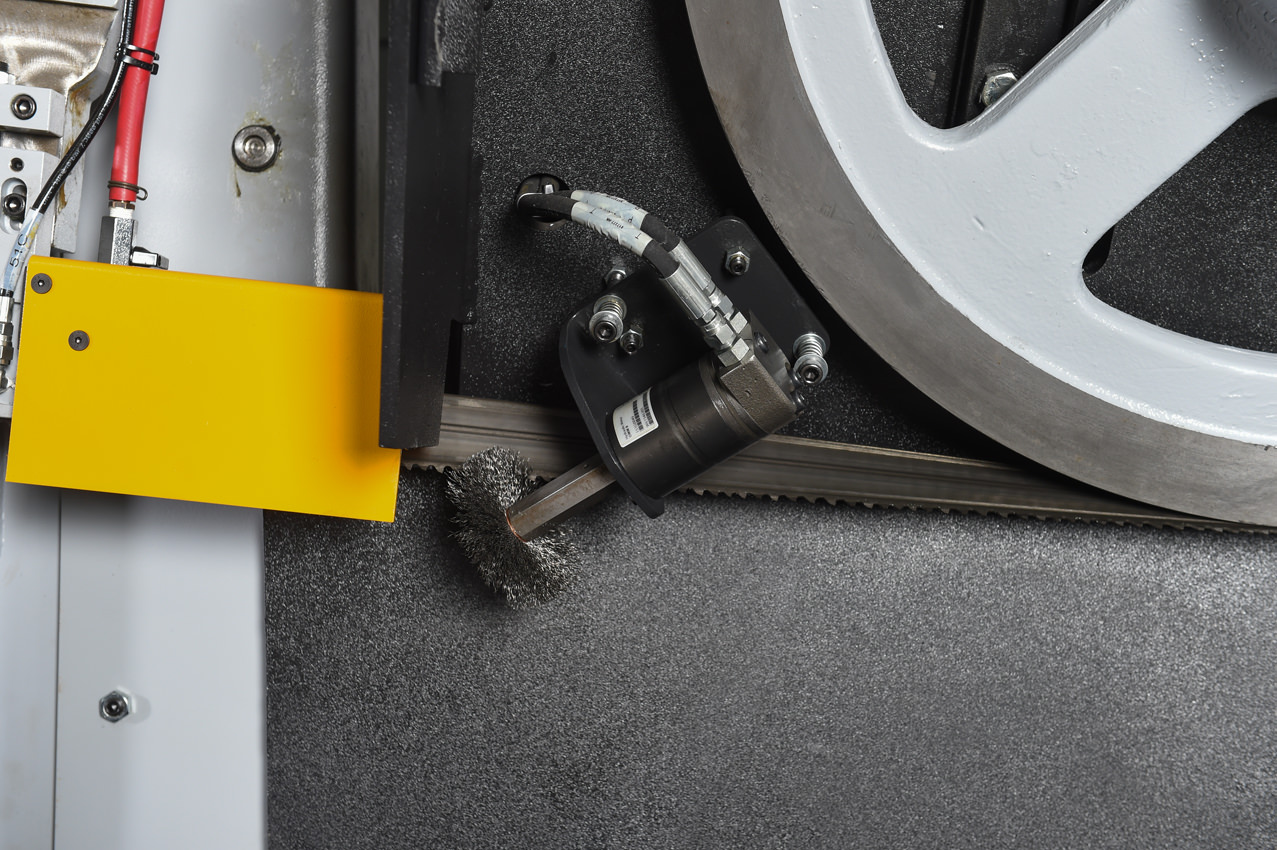

Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Out of stock switch
Variable vise pressure

Full Capacity, Full Stroking Vises

Allow you to operate the vises faster and hold large pieces better. Full height vises allow you to hold large objects more efficiently, like I beams. Full stroking vises mean you don’t have to manually change the position of the vise operator.

Easy Access Electrical and Hydraulics

A Service Technicians dream, get easy access to both electrical and hydraulics through cabinets on the exterior of the machine – far away from dirty coolant!

Chip Conveyor

The chip conveyor makes cleaning the machine easier. It removes the chips from the machine while it is running, which is safe for the operator and clean.

Two Hand Control

Designed for safety, the two button control on the head and the vises, insures that the operators hands are not in the cutting and vising area during saw operation.
