V-21/26APC VERTICAL BAND SAW

Automatic vertical band saw with the ability to miter from 60° left to 60° right.

A heavy duty vertical saw, the V-21/26APC efficiently cuts both solid and structural material and is extremely versatile for many different types of sawing applications. This model features user friendly, graphical icon programming for miter cutting.

Featuring a large 26″H x 21″W capacity, 10 HP motor, and 1 1/2″ blade, the V-21/26APC is a reliable choice for all your automated vertical metal cutting applications.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	26” x 21” (22” x 21” w/bund)	21″
45° Right	18” x 21” (15.5” x 21” w/bund)	17″
45° Left	18” x 21” (15.5” x 16.5” w/bund)	17″
60° Right	12 1/2” x 21” (7” x 21” w/bund)	12″
60° Left	11” x 21” (7” x 16.5” w/bund)	11″
Blade Size	1 1/2” x 19’ 4”
Blade Drive	10 HP VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	65-385 SFM
Automatic Multi-Indexing	60″ (120″ optional)
Machine Weight	14,700 lbs.
Table Height	44”
Dimensions (w x l x h)	181” x 184” x 112”

METRIC

Capacity	Rectangular (h x w)	Round
90°	660mm x 533 mm (558mm x 533mm w/bund)	533 mm
45° Right	457mm x 533mm (393mm x 533mm w/bund)	431 mm
45° Left	457mm x 533mm (393mm x 419mm w/bund)	431 mm
60° Left	317mm x 533mm (177mm x 533mm w/bund)	304 mm
60° Right	279mm x 533mm (177mm x 419mm w/bund)	279 mm
Blade Size	38.1 mm x 5893 mm
Blade Drive	7.5 kW VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	20-117 m/min
Automatic Multi-Indexing	1500 mm (3000 mm optional)
Coolant Tank Capacity	121 L
Machine Weight	6,668 kg
Table Height	1118 mm
Dimensions (w x l x h)	4597 x 4673 x 2844 mm

STANDARD FEATURES

4 ° canted head allows for efficient cutting and improved blade life
60″ bar feed, left side
Shuttle features automatic multi-indexing up to 60″ (120″ optional) in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

Hydraulic head tilt
Cast iron band wheels
Hydraulic DDF system
Two full stroking hydraulic vises
Hydraulically powered, programmable guide arm attached to saw column.
8.5″ Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
10 HP VFD. True direct blade drive – no belts/pulleys
Blade chamber separates material from cut part
Hydraulic chip conveyor
Replaceable blade brush
Robust steel base
Out of stock switch
Blade breakage switch Easy access electrical panel and hydraulics
Pop-up feed roller – one, opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure

Automatic, Hydraulic Powered Mitering

Mitering from 60 degrees left to 60 degrees right. The control panel features a digital angle display. Head tilt is controlled hydraulically.

10 HP Blade Drive

The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life.

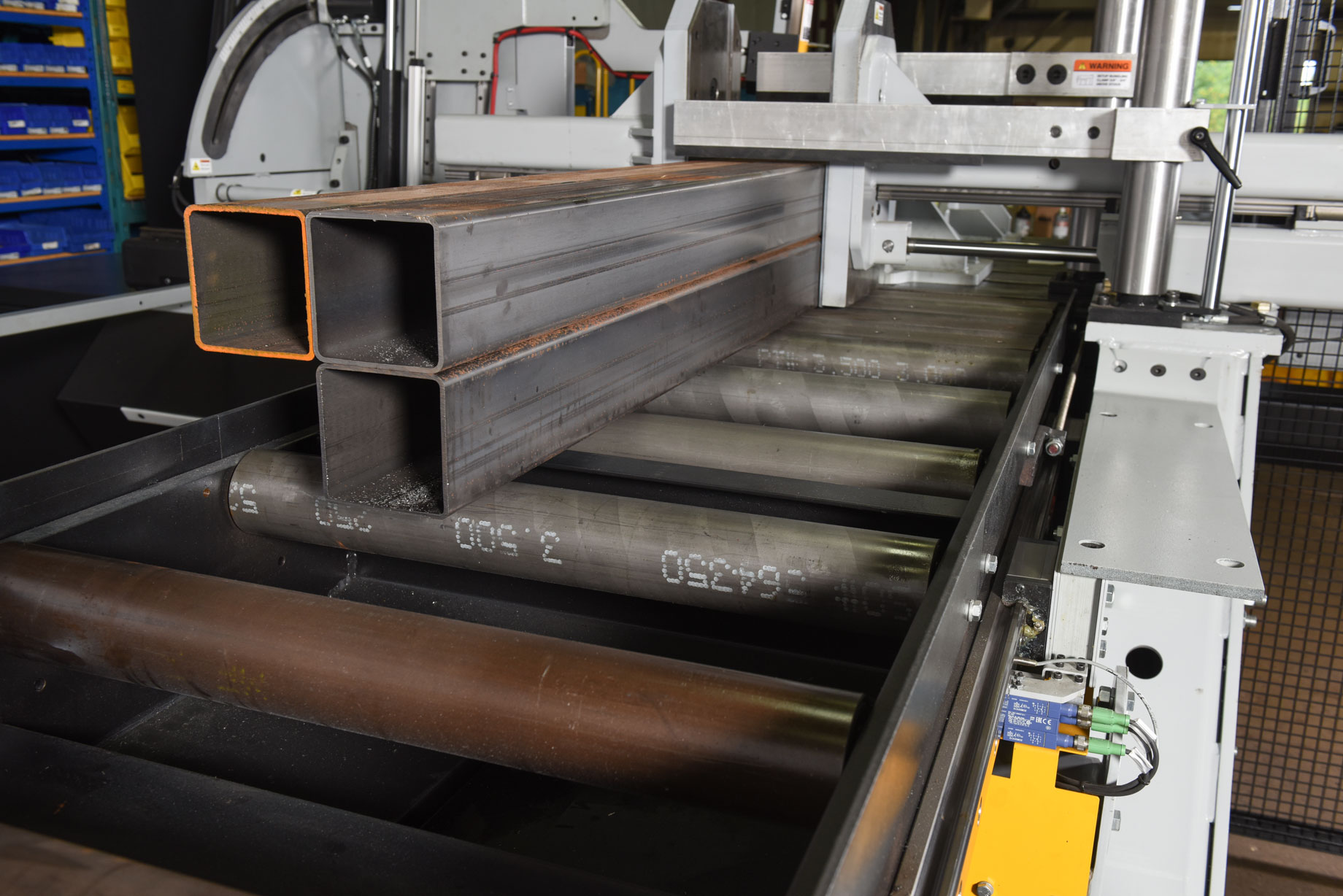

Automatic Multi-indexing

Indexes material quickly and accurately, up to 60” or 120” optional in a single stroke. Shuttle carriage moves on linear bearings and is driven by a rack and pinion servo motor.
